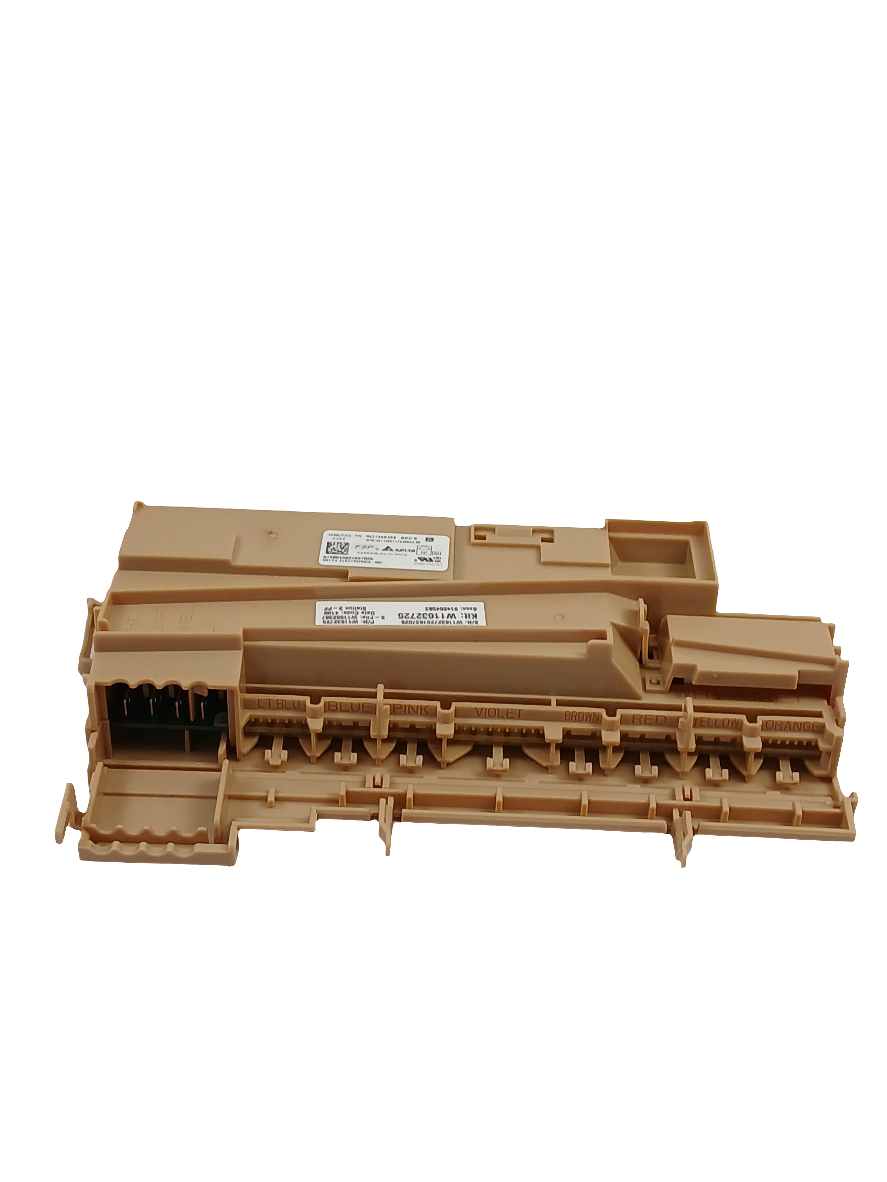

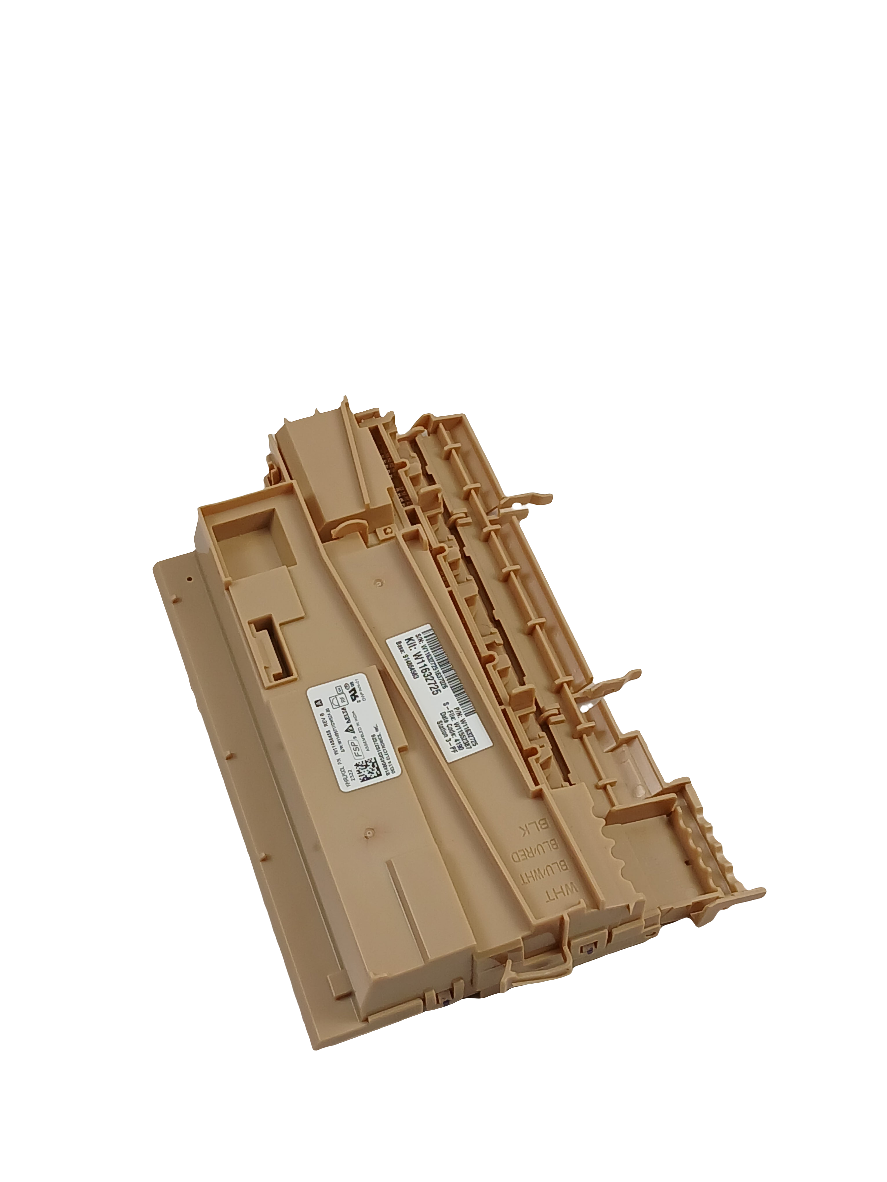

Whirlpool ACU Final Assembly / Dishwasher Electronic Control Board W11632725, Replaces W11524458, W11647941

Whirlpool OEM electronic control assembly for Maytag MDB8959SK dishwashers. The board coordinates dishwasher functions, timing, signals, and system responses.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Dishwasher will not start
• Dishwasher stops or becomes stuck mid-cycle
• Control buttons or panel functions are unresponsive
• Dishwasher displays persistent control-related symptoms or error indications
• Dishwasher fails to drain when the control board does not power the drain circuit

Check Before Replacing

• Verify the appliance model number before ordering; compatibility is model-specific.
• Disconnect electrical power before inspecting the control assembly, wiring, or connectors.
• Check whether the control panel responds and whether the dishwasher can start or advance through a cycle.
• Inspect the control assembly and connected wiring for visible damage, loose connections, or burned areas; these observations do not by themselves confirm board failure.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM part
• Electronic dishwasher control assembly
• Manufacturer part number W11632725

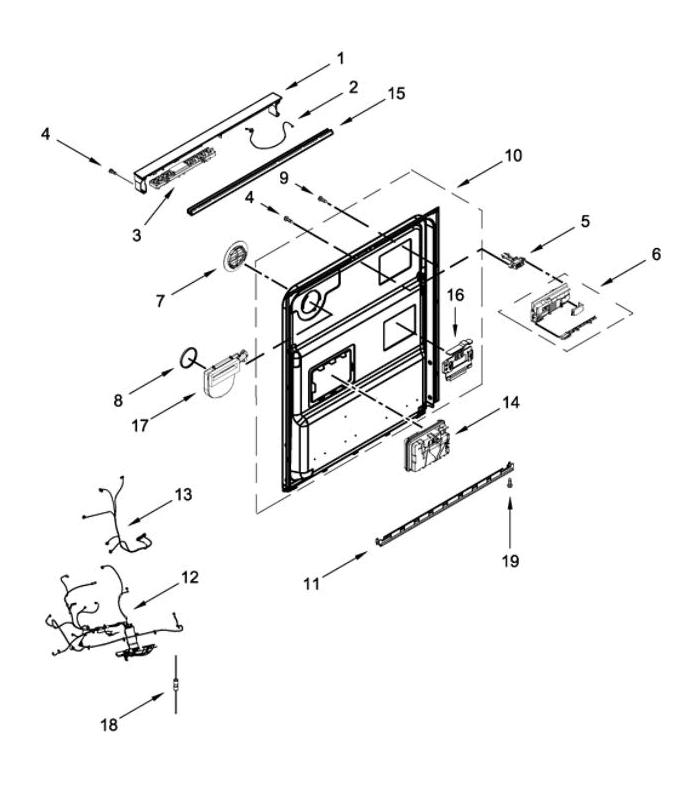

• Listed as item 6 in the Maytag dishwasher parts diagram
• Documented to replace W11524458 and W11647941

Installation Notes

• Disconnect electrical power before replacing the control assembly.
• Verify wiring and connector placement against the original assembly before reconnection.
• Use the appliance model number to confirm fit before installation.

Verified Compatible Models

MDB8959SKB1, MDB8959SKB2, MDB8959SKB3, MDB8959SKW1, MDB8959SKW2, MDB8959SKW3, MDB8959SKZ1, MDB8959SKZ2, MDB8959SKZ3

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
