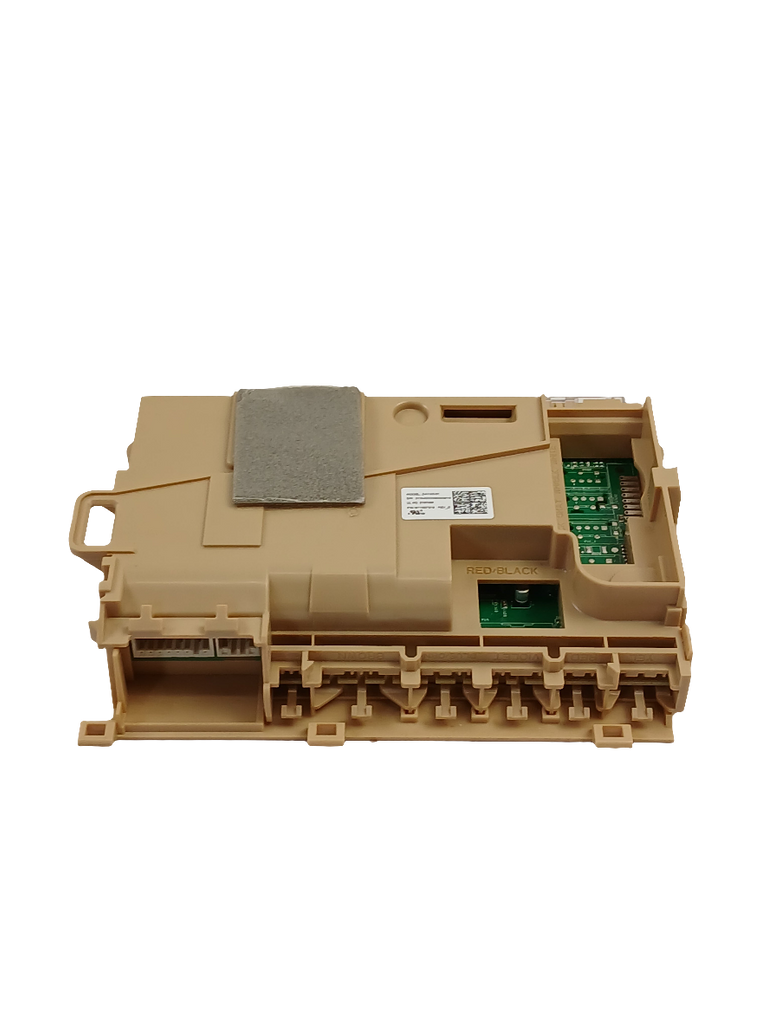

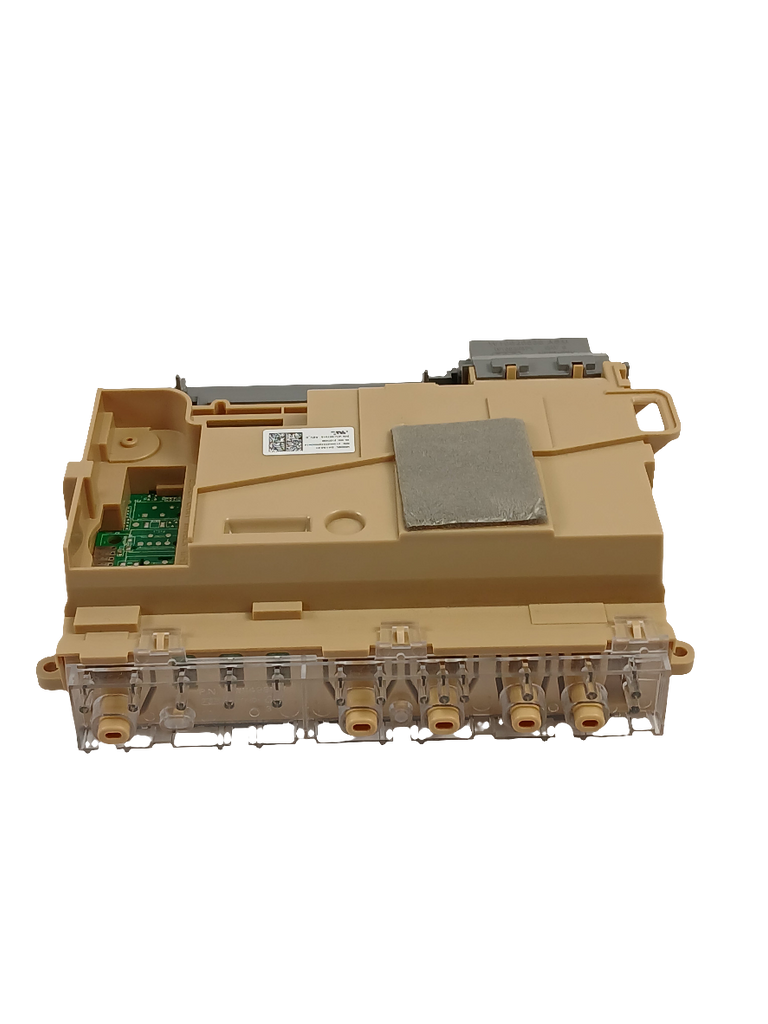

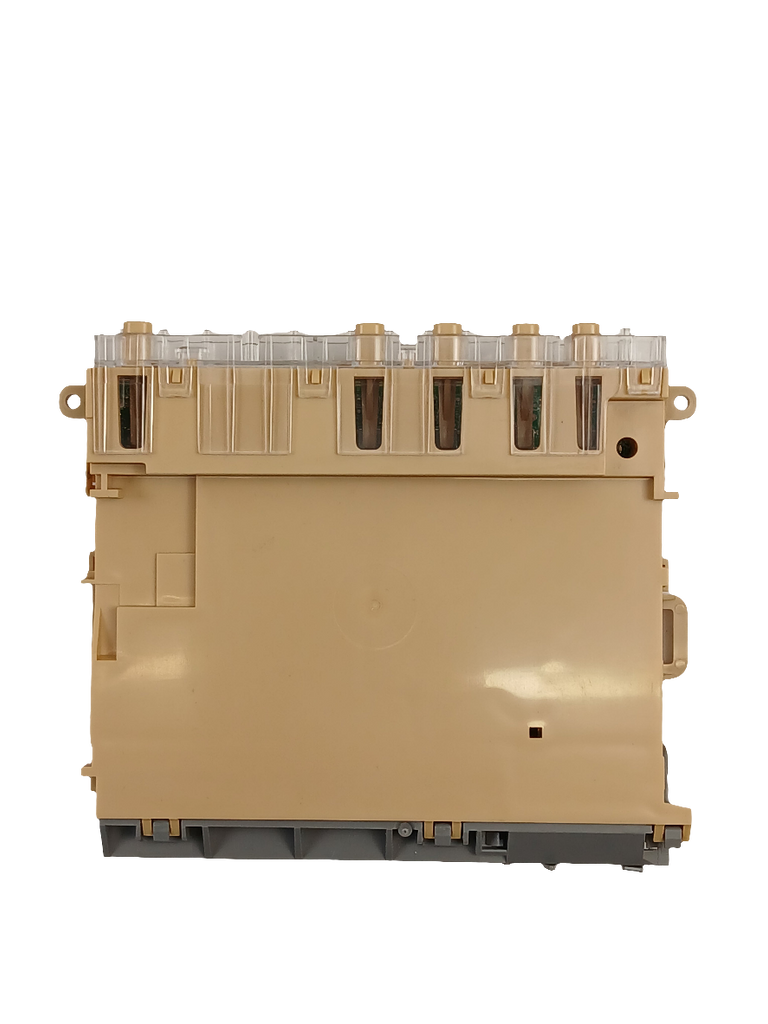

Whirlpool Dishwasher Electronic control board kit / control, electronic W11637581, Replaces W11516221, W11557319, W11612323, Fixes Dishwasher will not start or has unresponsive controls
Genuine Whirlpool OEM electronic control board kit that manages dishwasher wash cycles, timing, user inputs, and signals to components such as the wash motor, drain pump, and water inlet valve.
Genuine Whirlpool OEM electronic control board kit that manages dishwasher wash cycles, timing, user inputs, and signals to components such as the wash motor, drain pump, and water inlet valve.
Is This the Right Part?
Common Symptoms
- Dishwasher does not start.
- Error code is displayed.
- Cycle stops mid-cycle.
- Controls do not respond.
Check Before Replacing
- Record any displayed error code and note whether the control panel responds before ordering a board.
- Confirm the dishwasher has household power and that the door fully latches; these conditions can also prevent a cycle from starting.
- With electrical power disconnected, inspect the control-board harness connections for a loose, damaged, corroded, or moisture-affected connector.
- Check that affected connected components and their wiring are evaluated as appropriate; a symptom involving a pump, fill valve, or wash motor does not by itself prove the control board has failed.
Pro Tip
Part Details
Key Features
- Genuine Whirlpool OEM electronic control board kit.
- Controls dishwasher wash cycles, timing, and operating functions.
- Receives input from the user interface.
- Sends control signals to the wash motor, drain pump, and water inlet valve.
Installation Notes
- Disconnect electrical power before servicing the dishwasher.
- Use the exact appliance model and original board number to confirm application before installation.
- Before removing the old board, document connector locations; reconnect each harness fully and avoid pinching wires.
- Reinstall all covers and panels before restoring power and checking operation.
Verified Compatible Models
WDP540HAMB0, WDP540HAMB2, WDP540HAMB4, WDP540HAMW0, WDP540HAMW2, WDP540HAMW4, WDP540HAMZ0, WDP540HAMZ1, WDP540HAMZ2, WDP540HAMZ4, WDP560HAMB1, WDP560HAMW1, WDP560HAMZ1, WDT540HAMZ1, WDT540HAMZ4
Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
