OEM Replacement Part

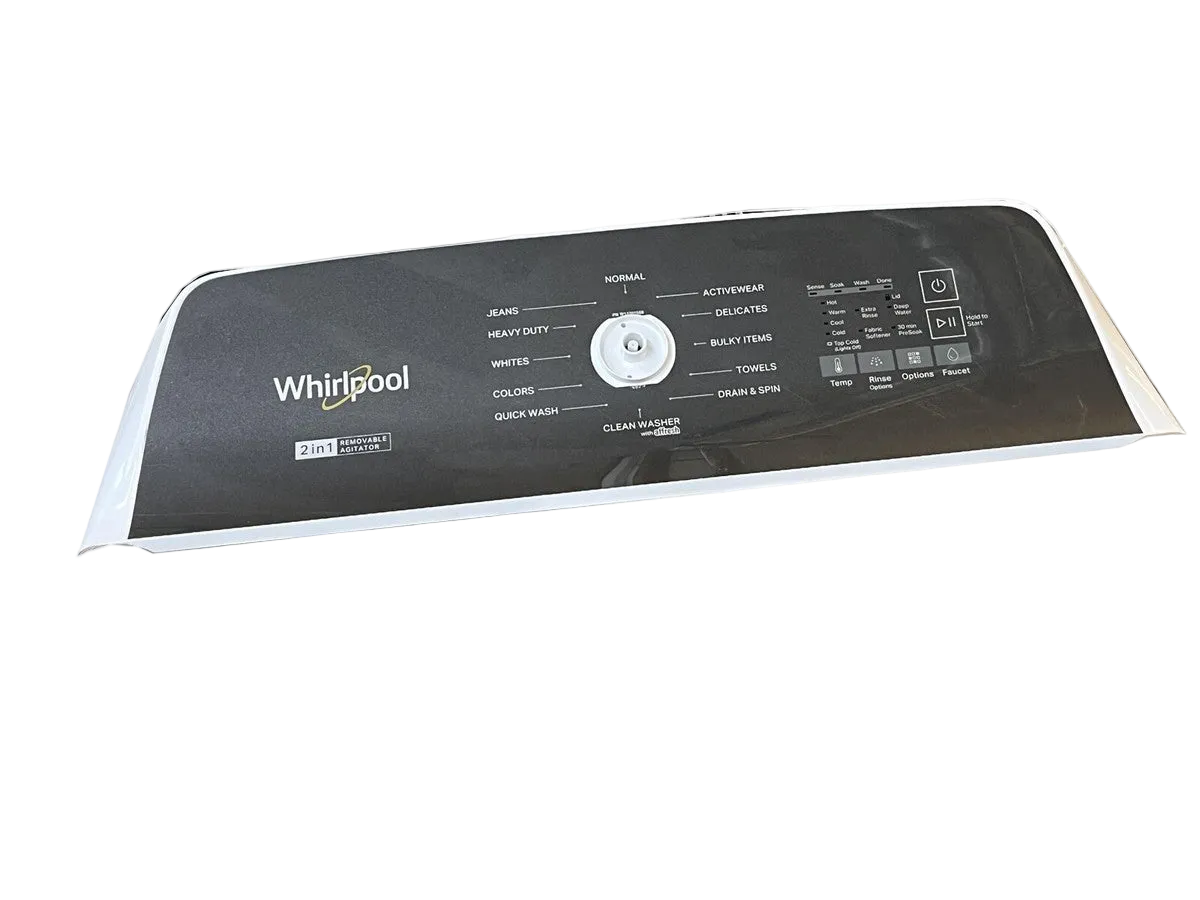

W11643702 Washer Control Panel
Part# W11643702
Fits Whirlpool
Fits Maytag
Fits KitchenAid
Washer Controls Not Responding? Control Panel W11643702 – Fix It Fast
If your washer's buttons are unresponsive, the display is blank, or cycles won't start, the control panel is the most likely cause. In most Whirlpool-built front-load and top-load washers, the control panel houses the user interface board and touch membrane that translate button presses into cycle commands. When it fails, the washer may appear completely dead, refuse to start, or respond erratically to input. ⚡ Common failure point in Whirlpool, Maytag, and KitchenAid washers. Part W11643702 is the genuine OEM replacement control panel that restores full button and display functionality with a direct drop-in fit — no modification required.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ The washer receives power — door latch clicks and lid locks normally
- ✔ Water supply is confirmed OK — hoses connected and valves open
- ✔ The main control board has been ruled out as the failure point
- ✔ The wiring harness between panel and board shows no visible damage
- ✔ ONLY problem is unresponsive buttons, blank display, or no cycle start
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Washer buttons not responding when pressed — most common complaint
- Display screen blank or showing garbled characters
- Cycle won't start even though washer has power
- Only some buttons work — others completely dead
- F-series or E-series error codes related to user interface (e.g. F8 E1, F5 E3)
- Control panel lights flickering or staying on continuously
✔ If these symptoms match, the control panel is the most likely failed component in the system.
✔ In most cases, replacing the control panel restores full washer operation immediately.
📦 Part Details
-
Part Number: W11643702
-
Type: Washer Control Panel — user interface assembly with display and button membrane
-
Replaces: OEM direct-fit control panel — supersedes earlier Whirlpool control panel part numbers (no modification required)
-
Brands: Whirlpool, Maytag, KitchenAid
⚠️ Recommended While Repairing:
While the control panel is disconnected, inspect the wiring harness connector pins for corrosion or bent terminals — a damaged connector can cause the same symptoms and will kill a new panel just as fast. Clean or replace the harness if any damage is found before reinstalling.
⚙️ Installation
Skill Level: MODERATE — 20–40 minutes. Unplug the washer before beginning. Remove the top panel or console shroud (model-dependent) to access the control panel mounting screws, disconnect the wiring harness connectors, and transfer the new panel into position — reverse to reassemble. Take a photo of harness routing before disconnecting to ensure correct reinstallation.
✓ Compatible Models
Confirmed compatible with select Whirlpool, Maytag, and KitchenAid front-load and top-load washer models. Contact us to verify your model number before ordering.
💡 Pro Tip
Run a Diagnostic Cycle After Install:
After fitting the new control panel, run your washer's built-in diagnostic mode before doing a full load — on most Whirlpool-built models this is activated by a specific button sequence in the owner's manual. The diagnostic will confirm all inputs are registering correctly and clear any stored fault codes left over from the failed panel.
