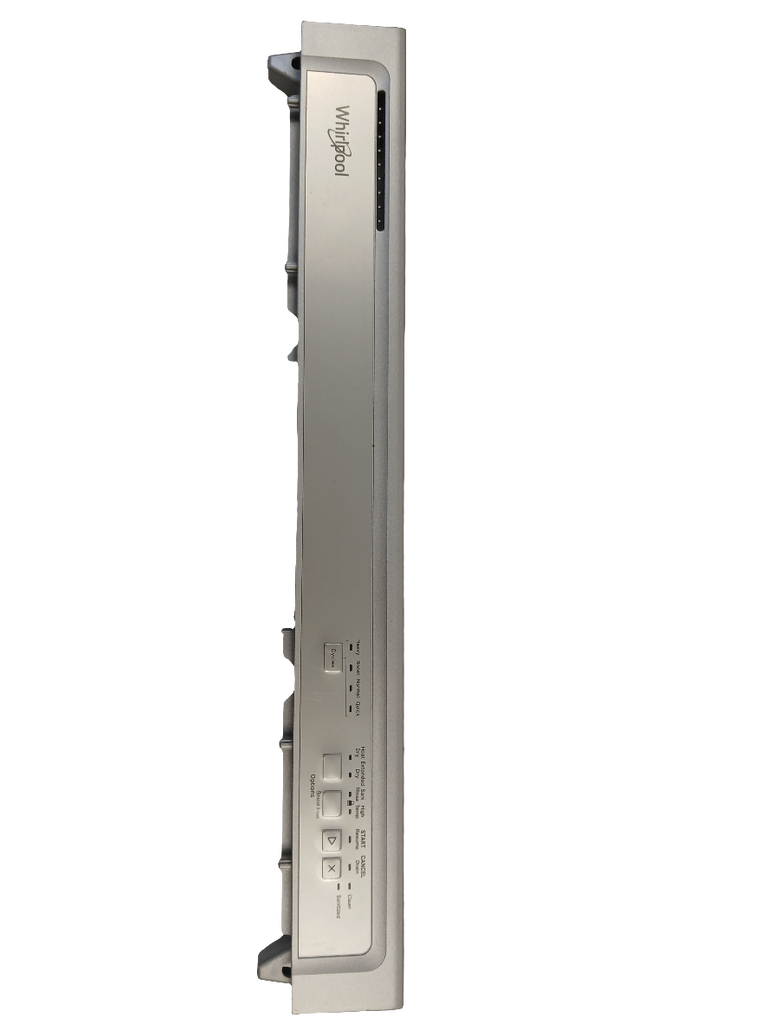

Whirlpool Dishwasher Console Assembly (includes insert), stainless W11647667, Replaces W11546171

Whirlpool OEM stainless dishwasher console assembly for the user-interface/control-panel area. The console includes the insert and is used on select Whirlpool WDF340/WDF341 dishwasher models.

Is This the Right Part?

Common Symptoms

• Cracks, dents, or deformation in the stainless console
• Loose, detached, or damaged console insert
• Missing, damaged, or illegible button or cycle markings
• Console does not sit flush or remain securely aligned with the control-panel area

Check Before Replacing

• Disconnect electrical power before inspecting or servicing the console area.
• Inspect the console and insert for cracks, dents, separation, deformation, or missing markings.
• Check that the console sits flush and is not loose around the control-panel and door-latch area.
• Confirm the appliance model and finish before ordering; the stainless console is model-specific.
• If buttons or the display are not operating, inspect the console condition but do not assume the console is the cause; the user-interface or electronic control may require separate diagnosis.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM console assembly
• Stainless finish
• Includes the insert
• Used in the dishwasher control-panel and latch assembly
• Listed as diagram position 1C for applicable WDF341PAP models
• Replaces prior OEM part number W11546171

Installation Notes

• Disconnect power before servicing the dishwasher control-panel or console area.
• Install only on a model explicitly listed for W11647667 and verify the stainless finish.
• The console is part of the control-panel/latch area; access and any transfer of related components should follow the appliance-specific service documentation.
• Reconnect and secure all parts before restoring power or operating the dishwasher.

Verified Compatible Models

WDF340PAMB0, WDF340PAMM0, WDF340PAMT0, WDF340PAMW0, WDF341PAPB0, WDF341PAPB1, WDF341PAPB2, WDF341PAPM0, WDF341PAPM1, WDF341PAPM2, WDF341PAPT0, WDF341PAPT1, WDF341PAPT2, WDF341PAPW0, WDF341PAPW1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
