Whirlpool Dishwasher Water Inlet Valve W11684258, Replaces W11669944

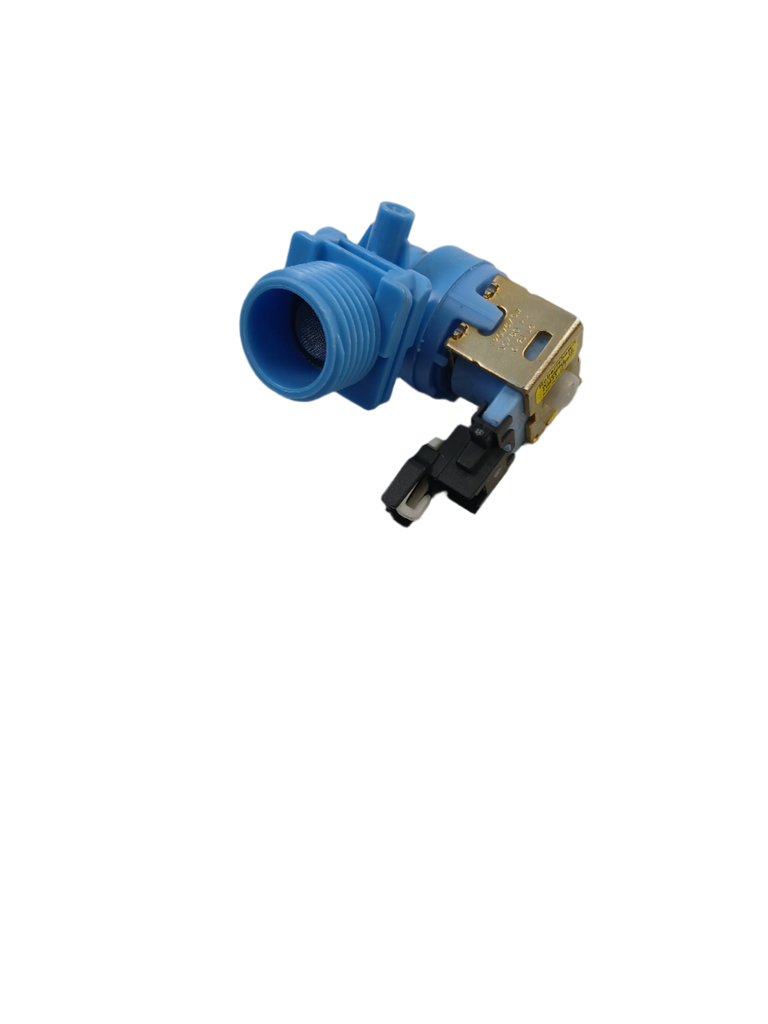

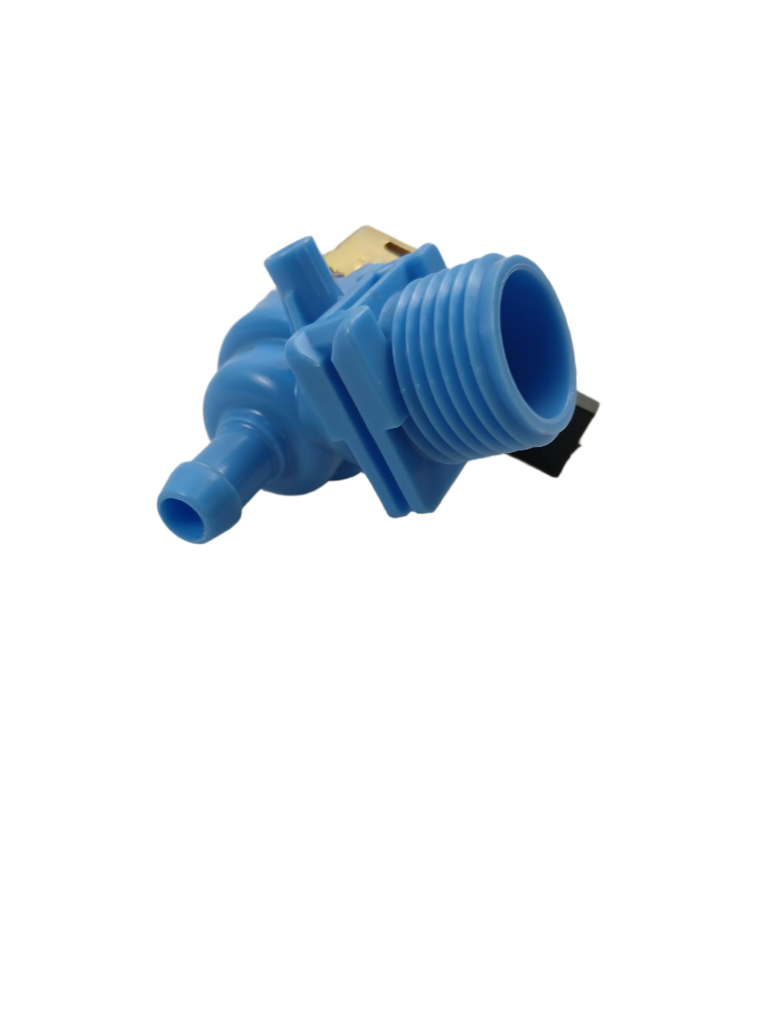

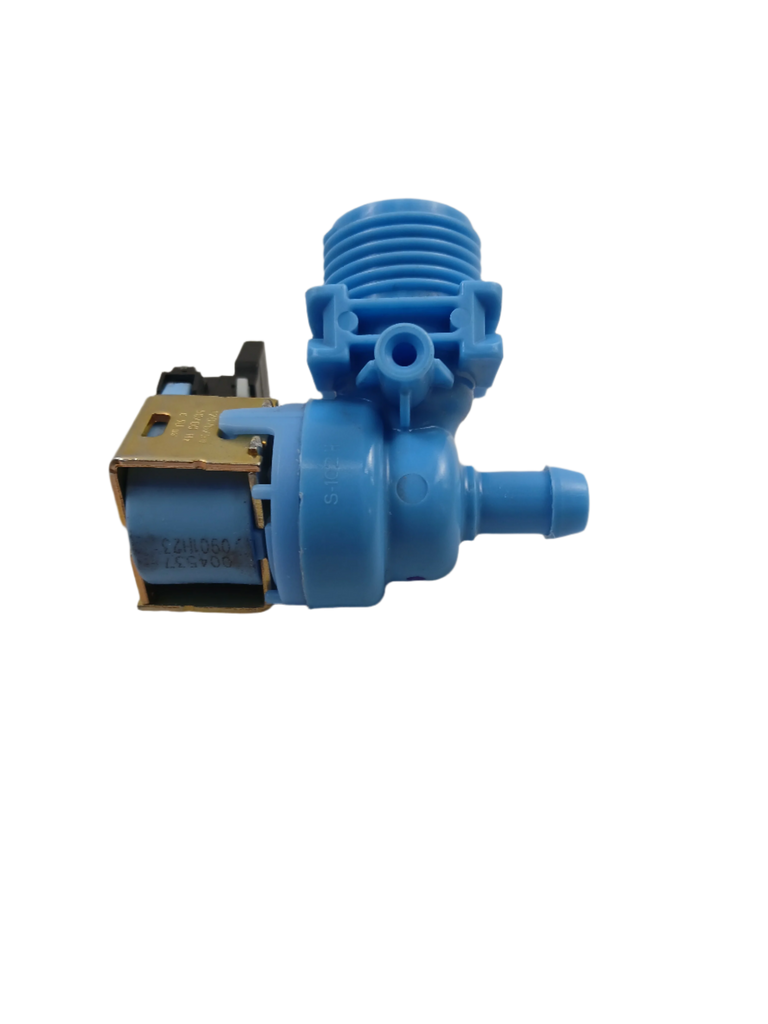

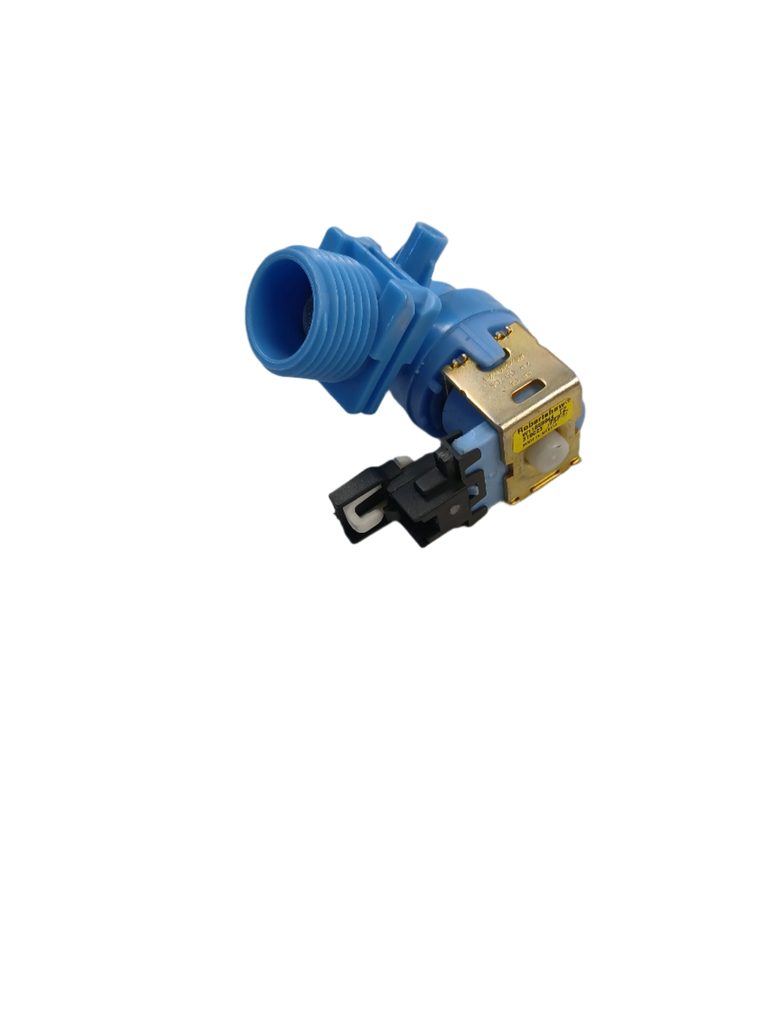

Genuine Whirlpool OEM dishwasher water inlet valve/fill valve assembly that controls water flow into the dishwasher during filling.

Is This the Right Part?

Common Symptoms

• Dishwasher does not fill or fills very slowly
• Insufficient water circulation resulting in poor cleaning
• Water leakage at the inlet-valve or connected water-line area
• Intermittent filling or cycle interruptions associated with restricted or defective water flow

Check Before Replacing

• Confirm the dishwasher’s water-supply shutoff valve is fully open.
• Inspect the accessible water-supply line for kinks, pinching, or visible leakage.
• Observe whether water enters the tub during the fill portion of a cycle, without placing hands inside a powered appliance.
• Check for visible debris or restriction at the accessible inlet connection after shutting off water and disconnecting power; do not disassemble or attempt to clean the valve.
• Verify that any suspected leak is localized to the valve or its connection rather than the supply line, fitting, or tub.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM dishwasher water inlet valve/fill valve assembly
• Designed for select Whirlpool dishwasher models
• Controls water entry during dishwasher filling
• Current Whirlpool part number W11684258
• Replaces Whirlpool part number W11669944

Installation Notes

• Disconnect electrical power and shut off the dishwasher water supply before servicing.
• Confirm the replacement part against the appliance model and the removed valve before installation.
• Note the original hose, wiring, and valve orientation before removal so the replacement is reconnected the same way.
• Keep the water line free of kinks and flush the line before making the final connection where applicable.
• Do not solder close to the plastic inlet valve, and protect the valve from freezing.
• After installation, restore water and power cautiously and inspect the connection for leakage.

Verified Compatible Models

WDF332PAMB0, WDF332PAMS0, WDF332PAMW0, WDF341PAPB0, WDF341PAPB1, WDF341PAPB2, WDF341PAPM0, WDF341PAPM1, WDF341PAPM2, WDF341PAPT0, WDF341PAPT1, WDF341PAPT2, WDF341PAPW0, WDF341PAPW1, WDF341PAPW2

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
