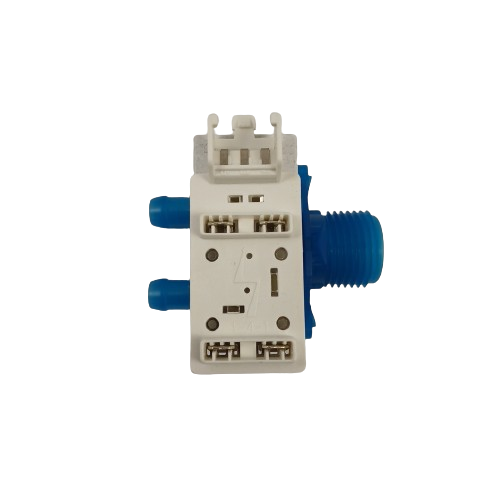

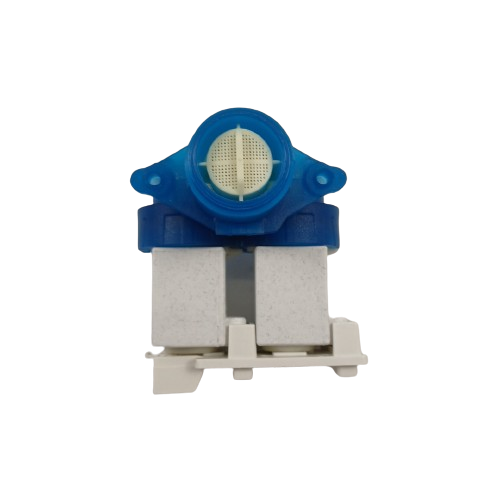

Whirlpool Washer Water inlet valve (cold) W11688995, Replaces W11036930, W11316256, W11486361

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Washer won’t fill with water
• Slow fill or weak water flow
• Water leaking at rear of washer
• Error codes related to fill or valve
• Water enters tub when washer is off
• Only hot or cold water fills, not both

Check Before Replacing

• Confirm the household cold-water supply is turned on and the inlet hose is not kinked or blocked before condemning the valve.
• Inspect the valve and hose connections for visible leakage.
• If the washer has separate hot and cold valves, compare the cold-water fill behavior with the hot-water fill function.

Pro Tip

Part Details

Installation Notes

• CRITICAL SAFETY WARNING:
• Unplug washer and turn off water supply before repair.
• Unplug washer
• and shut off both hot and cold water supply valves.
• Move washer away from wall
• for rear access.
• Remove rear panel or top cover
• (model dependent) to access valve.
• Place towel or pan under valve
• to catch water drips.
• Disconnect hot and cold water hoses
• from the valve (have a catch pan ready).
• Unplug wiring harnesses
• from solenoid coils (note locations or take a photo).
• Remove mounting screws
• securing valve to washer frame.
• Take out old valve
• and inspect hose fittings for debris or wear.
• Install new valve
• in same orientation and secure with screws.
• Reconnect wiring harnesses
• and water hoses (hand-tight + 1/4 turn).
• Restore water supply,
• check for leaks at all connections.
• Plug in washer
• and run a fill cycle to verify proper operation.
• Safety Notes:
• Never overtighten hose fittings. Replace hoses if cracked or kinked. Clean inlet screens before reconnecting.

Verified Compatible Models

7MWFC9822HC1, 8TWFC6810LW0, IFW5900HW, IFW5900HW0, IFW5900HW1, IFW5900HW2, IFW5900HW3, IFW5900HW4, MFW7020RF0, MFW7020RU0, MFW7020RW0, MHW5630HC, MHW5630HC0, MHW5630HC1, MHW5630HC2, MHW5630HC3, MHW5630HW0, MHW5630HW1, MHW5630HW2, MHW5630HW3, MHW6630HC, MHW6630HC0, MHW6630HC1, MHW6630HC2, MHW6630HC3, MHW6630HW0, MHW6630HW1, MHW6630HW2, MHW6630HW3, MHW6630MBK0, MHW8630HC, MHW8630HC0, MHW8630HC1, MHW8630HC2, MHW8630HC3, MHW8630HC4, MHW8630HW0, MHW8630HW1, MHW8630HW2, MHW8630HW3, MHW8630HW4, NFW5800HW, NFW5800HW0, NFW5800HW1, NFW5800HW2, NFW5800HW3, NFW5800HW4, WFC682CLW0, WFC9820HC, WFC9820HC0, WFC9820HW0, WFW5605MC0, WFW5605MC1, WFW5605MW0, WFW5605MW1, WFW560CHW, WFW560CHW0, WFW560CHW1, WFW560CHW2, WFW5620HW, WFW5620HW0, WFW5620HW1, WFW5620HW2, WFW5620HW3, WFW5720RU0, WFW6605MC0, WFW6605MW0, WFW6620HC, WFW6620HC0, WFW6620HC1, WFW6620HC2, WFW6620HW0, WFW6620HW1, WFW6620HW3, WFW6720RU0, WFW8620HC, WFW8620HC0, WFW8620HC1, WFW8620HC2, WFW8620HC3, WFW8620HC4, WFW8620HW0, WFW8620HW1, WFW8620HW2, WFW8620HW3, WFW8620HW4, WFW862CHC, WFW862CHC0, WFW862CHC1, WFW862CHC2, WFW862CHC3, WFW9620HBK, WFW9620HBK0, WFW9620HBK1, WFW9620HBK2, WFW9620HBK3, WFW9620HC0, WFW9620HC1, WFW9620HC2, WFW9620HC3, WFW9620HW0, WFW9620HW1, WFW9620HW2, WFW9620HW3

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
