ℹ️ This part supersedes W10914557, W10724438, W10758882, and W11719313. You are viewing the current OEM replacement.

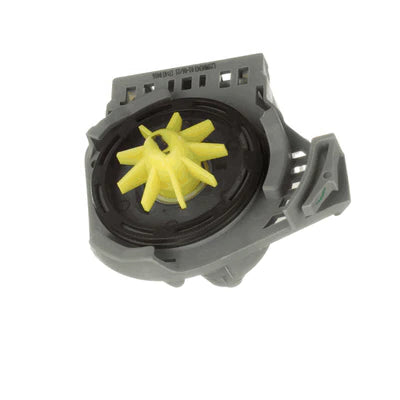

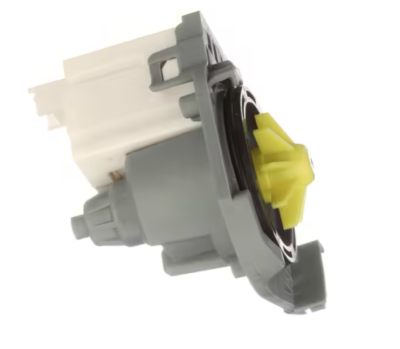

A failed drain pump leaves standing water at the bottom of your dishwasher after every cycle — and if left unchecked, that water overflows, warps cabinetry, and triggers mould. The W11732282 is the direct OEM drain pump for Whirlpool-platform dishwashers, replacing W10724438, W10758882, W10914557, and W11719313, and it's the part that gets water moving out again.
⚠️ Symptoms of a Failed Dishwasher Drain Pump
- Standing water at the bottom of the dishwasher after the cycle ends
- Dishwasher stops mid-cycle with a drain error code
- Humming or buzzing sound but no water movement during drain
- Dishes coming out dirty — water not clearing between wash and rinse
- Burning or electrical smell from the pump area
- Drain cycle runs but water level doesn't drop
✓ Part Details
- OEM Part Number: W11732282
- Replaces: W10724438, W10758882, W10914557, W11719313
- Internal SKU: DWD3
- Compatible Brands: Whirlpool, Maytag, KitchenAid, Amana
- Part Type: Drain pump motor assembly
- Variants Available: OEM New, XPart New, Used
💡 Pro Tip — Check the Drain Filter and Sump While You're In There:
Before condemning the pump, pull and clean the drain filter — a clogged filter mimics pump failure and takes 2 minutes to clear. If the pump is genuinely failed, inspect the sump area for broken glass or debris that caused the failure. Clearing the root cause prevents the replacement pump from failing prematurely.
Before condemning the pump, pull and clean the drain filter — a clogged filter mimics pump failure and takes 2 minutes to clear. If the pump is genuinely failed, inspect the sump area for broken glass or debris that caused the failure. Clearing the root cause prevents the replacement pump from failing prematurely.
⚙️ Installation Notes
- Skill Level: Intermediate — requires lower access panel removal and hose disconnection
- Always disconnect power and water supply before beginning any repair
- Have towels ready — residual water will drain from hoses during removal
- Note hose orientation and clamp positions before disconnecting
- Check drain hose for kinks or blockages while pump is accessible
- Run a short cycle immediately after installation to confirm drain operation
✓ Compatible Models
This drain pump fits Whirlpool-platform dishwashers. Contact us with your full model number to confirm fitment before ordering.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
