Washer Door Won’t Latch or Lock? Door Lock Assembly W11733849 – Fix F5, dL & No-Start Errors Fast
If your Whirlpool or Maytag front-load washer won’t start, displays an F5 E1 or dL error code, or the door refuses to latch and lock, a failed door lock assembly is almost always the cause. In most Whirlpool and Maytag front-load washers, this is caused by a failed door lock assembly whose latch mechanism or internal switch can no longer confirm the door is securely closed. When it fails, the washer’s control board receives no lock confirmation signal and refuses to begin any cycle as a safety measure, leaving the machine completely inoperable. ⚡ Common failure point in Whirlpool-platform front-load washers. Part W11733849 is a Certified Pre-Owned door lock assembly that restores proper door latching and lock confirmation, getting your washer running again at a fraction of the cost of a new part.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Washer has power and the control panel is responsive
- ✔ Door hinge, strike, and door boot seal are intact and undamaged
- ✔ Wiring harness to the door lock has been confirmed unbroken
- ✔ ONLY problem is the door not locking, an F5/E1/dL error code, or the washer refusing to start a cycle
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Washer displays F5 E1, F5 E2, or dL error code and won’t start
- Door closes but the lock click is absent or inconsistent
- Washer starts briefly then pauses and throws a door lock fault
- Door feels loose or unlatched even when fully pushed shut
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing this door lock assembly restores normal washer operation immediately.
📦 Part Details

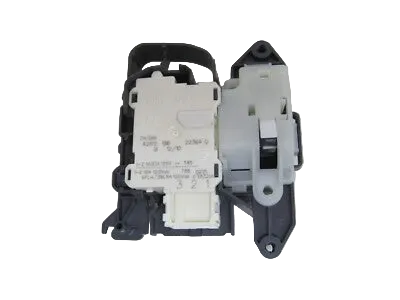

- Part Number: W11733849
- Type: Front-Load Washer Door Lock Assembly — includes the latch mechanism and internal interlock switch that signals the control board when the door is securely closed
- Condition: Certified Pre-Owned — inspected and verified functional
- Brands: Whirlpool, Maytag
While the door lock is out, inspect the door boot seal (bellows gasket) for tears, mold, or debris buildup around the latch area — a damaged boot seal is the next most common front-load washer repair and replacing it at the same time avoids a second door disassembly.
⚙️ Installation
Skill Level: EASY — 15–25 minutes. Disconnect power before servicing. Peel back the door boot seal to access the lock assembly screws, disconnect the wiring harness, remove the old lock, install the new assembly, reconnect the harness, reseat the boot seal, and restore power to run a test cycle confirming the door locks and the error code clears.
✓ Compatible Models
Designed for Whirlpool and Maytag front-load washer models that use the W11733849 door lock assembly. Contact us to verify your model number before ordering.
💡 Pro Tip
After replacing the door lock, the F5 or dL error code may persist in memory even if the new part is working correctly. Run a diagnostic cycle or perform a control board reset (unplug for 60 seconds, then restore power) to clear stored fault codes before concluding the repair was unsuccessful.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
