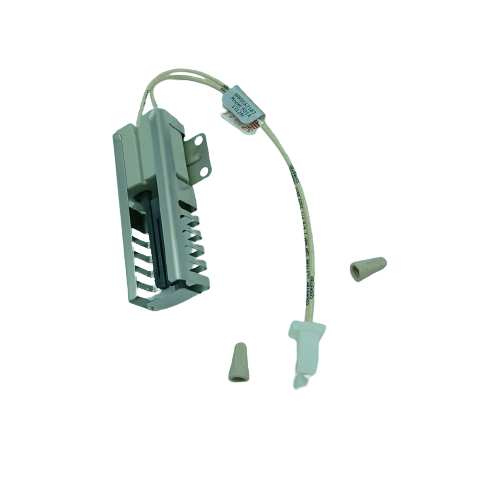

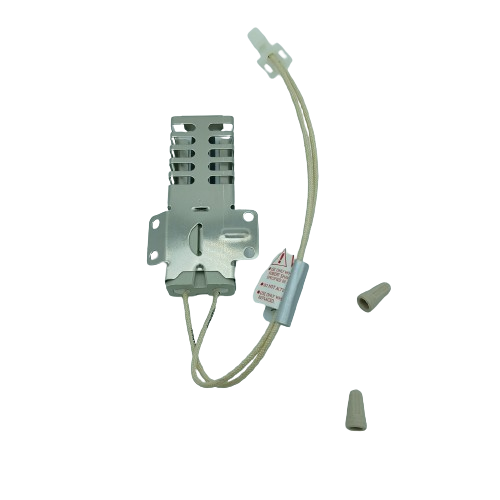

XPart Supply WS01F01201 glow bar for oven ignition assembly with metal shield wiring and connectors

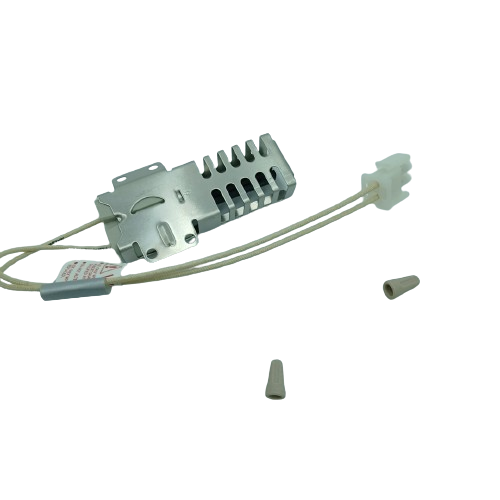

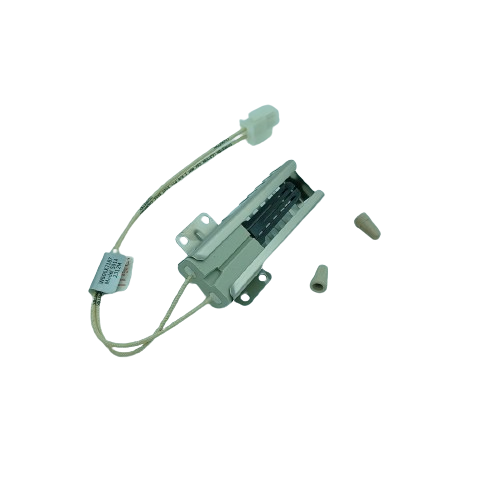

XPart Supply replacement WS01F01201 glow bar for oven igniter assembly with bracket connector and braided leads
GE Range Oven Ignitor Glow Bar WB13K21 – OEM Replacement (Replaces WS01F01197, WB2X9998, WB13K0021 + more)
GE Range Oven Ignitor Glow Bar WB13K21 – OEM Replacement (Replaces WS01F01197, WB2X9998, WB13K0021 + more)
GE Range Oven Ignitor Glow Bar WB13K21 – OEM Replacement (Replaces WS01F01197, WB2X9998, WB13K0021 + more)
GE Range Oven Ignitor Glow Bar WB13K21 – OEM Replacement (Replaces WS01F01197, WB2X9998, WB13K0021 + more)
XPart Supply WS01F01201 glow bar for oven ignition assembly with metal shield wiring and connectors
XPart Supply replacement WS01F01201 glow bar for oven igniter assembly with bracket connector and braided leads
GE Range Oven Ignitor Glow Bar WB13K21 – OEM Replacement (Replaces WS01F01197, WB2X9998, WB13K0021 + more)
GE Range Oven Ignitor Glow Bar WB13K21 – OEM Replacement (Replaces WS01F01197, WB2X9998, WB13K0021 + more)
GE Range Oven Ignitor Glow Bar WB13K21 – OEM Replacement (Replaces WS01F01197, WB2X9998, WB13K0021 + more)
GE Range Oven Ignitor Glow Bar WB13K21 – OEM Replacement (Replaces WS01F01197, WB2X9998, WB13K0021 + more)
Customers rate us 4.8/5 based on 247 reviews.

GE Range Oven Ignitor Glow Bar WB13K21 – OEM Replacement (Replaces WS01F01197, WB2X9998, WB13K0021 + more)

$162.22
$178.44

Frequently Bought Together

⚠ This part has been superseded by a newer OEM part number.

WB13K21 has been replaced by WS01F01201. We recommend ordering the current part for guaranteed fit and full lifespan.

Order WS01F01201 Instead →

GE Range Oven Ignitor Glow Bar WB13K21

Genuine OEM | Superseded by WS01F01201 | XPart Supply

The WB13K21 is a genuine OEM glow bar ignitor for GE gas ranges and ovens. Note that this part number has been superseded by WS01F01201, which is the current OEM replacement. If you have remaining stock of WB13K21 or need this specific part number for a warranty or service record, you are in the right place — otherwise we recommend ordering the current part above.

✓ Model-Specific Repair Pages

MODEL IO7666DBFPX0B IO7666DBFPX0A JCGBS60DEK1BB

The WB13K21 glow bar ignitor draws current through a silicon carbide element that heats to ignition temperature, signaling the gas valve to open. When the ignitor weakens or fails, the oven won't light, takes excessively long to preheat, or trips the safety valve. This OEM part restores factory ignition timing and gas valve response.

✓ Common Symptoms Fixed

Oven not lighting or taking more than 90 seconds to ignite. Oven ignitor glows but burner never lights. Gas smell without ignition. Oven cycling off before reaching set temperature. Error codes related to ignition failure on compatible GE models.

✓ Key Features & Specifications

OEM Part Number: WB13K21. Superseded By: WS01F01201 (current OEM). Manufacturer: GE Appliances. Part Type: Oven Ignitor / Glow Bar. Condition: New, genuine OEM. Average Service Life: 1.5–2.0 years. Compatible with 100+ GE, Hotpoint, and affiliated brand gas range models.

✓ Buying Options

OEM (WB13K21): The genuine GE factory ignitor. This part number has been superseded by WS01F01201 — if you require WB13K21 specifically for a service record or warranty claim, this listing covers that need. For all other purposes, we recommend ordering WS01F01201 above.

✓ Replacement Part Numbers

WB13K21 replaces: 08009420, 223C3381G003, 223C3381G007, 223C3381G009, 5303131300, 5303935066, 8009420, WB13K0021, WB13K10004, WB13K10009, WB13K10024, WB13K10026, WB13K12, WB13K13, WB13K14, WB13M100, WB2X4528, WB2X4600, WB2X8212, WB2X9998, WG02F03996, WS01F01197. Superseded by: WS01F01201.

✓ Installation Tips

Disconnect power and shut off gas before beginning. The ignitor is located at the rear of the oven burner assembly — remove the oven bottom panel and burner cover to access it. Disconnect the two-wire harness connector (do not touch the ignitor element with bare hands — skin oils reduce service life). Secure the new ignitor with the mounting screws and reconnect the harness. Restore power and run a bake cycle to confirm ignition within 30–60 seconds.

✅Compatibility & Cross Reference

Part number WS01F01201 replaces 08009420, 223C3381G003, 223C3381G007, 223C3381G009, 5303131300, 5303935066, 8009420, WB13K0021, WB13K10004, WB13K10009, WB13K10024, WB13K10026, WB13K12, WB13K13, WB13K14, WB13K21, WB13M100, WB2X4528, WB2X4600, WB2X8212, WB2X9998, WG02F03996, WS01F01197

14721-1, 14721-2, 14721-3, 14726-1, 14726-2, 14726-3, DR200BGLP-A, DR200WGLP-B, DR200WGLPA, DR201BSSGLP-A, DR201WGLP-B, DR201WGLPA, DR240WGLP-B, DR240WGLPA, DR240WGLPC-A, DR240WGLPC-B, DR241WGLP-B, DR241WGLPA, EG7686SSC0A, FNG576CFS1SB, FNG576CFS1WB, IO7660DBSX0A, IO7660DBSX0B, IO7666DBFPX0A, IO7666DBFPX0B, IO7686FES0B, IO7686FESC0A, IO7686SS0B, IO7686SSC0A, IO900FIX0A, IO930FIX0C, JCGBS10DEF1WW, JCGBS10DEK1WW, JCGBS10DEM1WW, JCGBS10DEM2WW, JCGBS10DEM3WW, JCGBS23DET1BB, JCGBS23DET1WW, JCGBS23DET2BB, JCGBS23DET2WW, JCGBS60DEK1BB, JCGBS60DEK1WW, JCGBS60DEK, JGBS19BEM1WH
JGBS19DEN4WW, JGBS19SER1SS, JGBS23BEL3BB, JGBS23CEL3CC, JGBS23DEM3WW, JGBS23DEM4WW, JGBS23DEM7BB, JGBS23DEM7CC, JGBS23DEM7WW, JGBS23SEL3SS, JGBS23SEM3SS, JGBS23SET1SS, JGBS24BEM3CT, JGBS24BEM3WH, JGBS24DEM3CC, JGBS24GEM3SS, JGBS24LEM3WW, JGBS30DEK2BB, JGBS30DEK2WW, JGBS30REK2SS, JGBS60DEF1WWJGBS60DEK4BBJGBS60DEK4CC, JGBS60DLF1WW, JGBS60DLK3WW, JGBS60DLK4WW, JGBS60GLF1SA, JGBS60GLK3SA, JGBS60GLK4SA, JGBS60REF1SS, JGBS60REK1SS, JGBS60RLF1SS, JGBS60RLK3SS, JGBS60RLK4SS, JGBS62REK1SS, JGBS64REF1SS, JGBS66DEK3BB, JGBS66DEK3WW, JGBS66EEK3ES, JGBS66REK1SS, JGSS05DEM1BB, PRO200SS-0A, PRO246SS-0A, RG200W-1A, RG200W-1B, RG244W-1A, RG244W-1B, RGB525DEH3WW, RGB526DEH3WW, RGB530DEH3WW, RGB530DET2BB, RGB530DET2WW, RGB540SEP3SA, RGB540SEP5SA, RGB745DEP4CT, RGBS300DM1WW, RGBS300DM2BB, RGBS400DM1WW

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
