GE Microwave Won’t Start or Door Won’t Latch? Interlock Support Bracket WG02A01011 – Fix Door Switch Alignment Fast

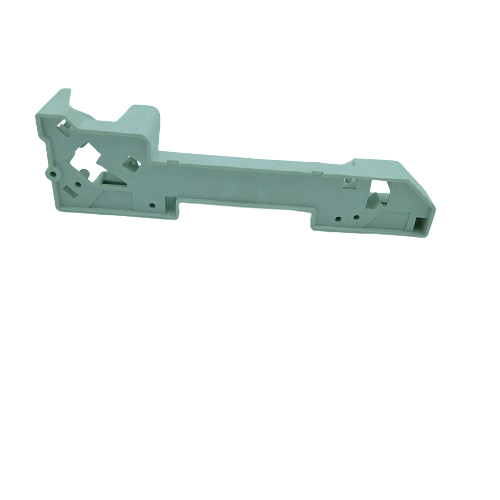

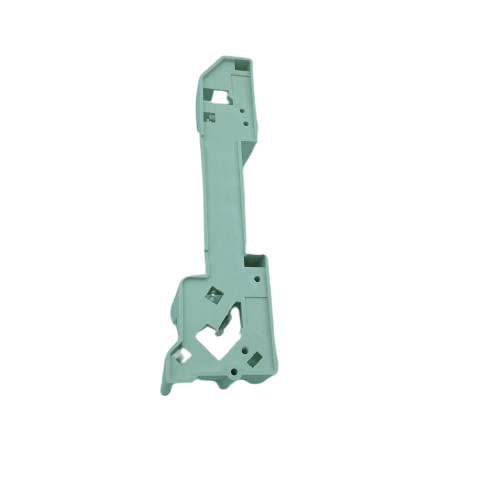

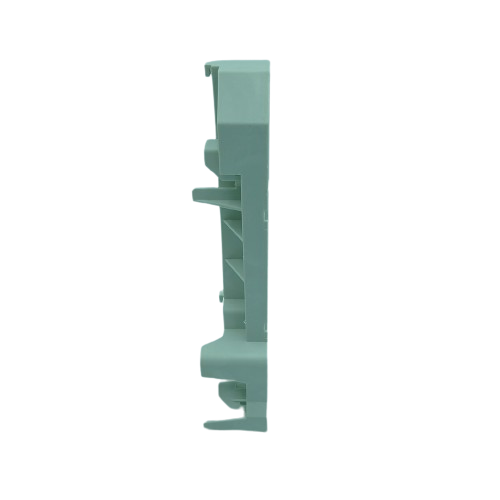

A GE microwave that won’t start, won’t heat, or has a door that won’t latch properly is often caused by a cracked or broken door-interlock support bracket. In most GE and Mabe over-the-range microwaves, this bracket holds the interlock switch assembly in precise alignment with the door latch hooks. When it breaks or warps, the interlock switches can’t engage correctly — triggering a no-start condition, a blown fuse, or a door that feels loose and won’t close securely. ⚡ Common failure point in GE JVM and CVM series over-the-range microwaves. Part WG02A01011 is the genuine OEM replacement bracket (Canadian/Mabe format; U.S. equivalent WB01M02260) that restores correct interlock switch alignment and eliminates door-related no-start failures.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Microwave has power and the display/clock functions normally
- ✔ The door latch hooks and door handle are intact and undamaged
- ✔ The interlock switches themselves have been tested and are functional
- ✔ ONLY problem is the microwave won’t start, the door won’t latch securely, or the interlock switches are misaligned
Not sure? Send us your model number — we’ll confirm before you order.
🔧 Common Symptoms
- Microwave won’t start even though the door appears closed
- Door feels loose, doesn’t click shut, or pops open during operation
- Blown internal fuse with no other obvious cause
- Interlock switches test good but microwave still won’t run
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing this interlock support bracket restores correct door switch engagement and normal microwave operation immediately.
📦 Part Details
- Part Number: WG02A01011 (Canadian/Mabe OEM)
- Type: Genuine OEM Microwave Door-Interlock Support Bracket
- Replaces: WB01M02260
- Supersession Chain: WB01M02260 → WG02A01011
- U.S. Equivalent: WB01M02260
- Brands: GE, Mabe
While the door panel is open to access the bracket, test all three interlock switches (primary, secondary, and monitor) with a multimeter. A failed bracket often causes repeated switch actuation damage — replacing a faulty switch at the same time prevents a repeat no-start failure and avoids a second disassembly.
⚙️ Installation
Skill Level: ADVANCED — 30–45 Minutes. Disconnect power and discharge the high-voltage capacitor before opening the microwave cabinet — the capacitor can hold a lethal charge even when unplugged. Remove the outer cabinet and door panel to access the interlock switch assembly, swap the bracket, confirm all switch actuators seat correctly against the new bracket, and reassemble. Test door latch engagement before restoring power.
✓ Compatible Models
Confirmed compatible with CVM1655STC01, JVM1630BFC01, JVM1630WFC01, JVM1635SFC01, JVM1635STC01. Contact us to verify your model number before ordering.
💡 Pro Tip
The high-voltage capacitor in a microwave can store over 2,000 volts and retain that charge for hours after unplugging. Before touching any internal components, use an insulated screwdriver with a 10kΩ resistor to safely discharge the capacitor across its terminals. Skipping this step is the most common cause of serious injury during microwave repair — don’t rush it.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
