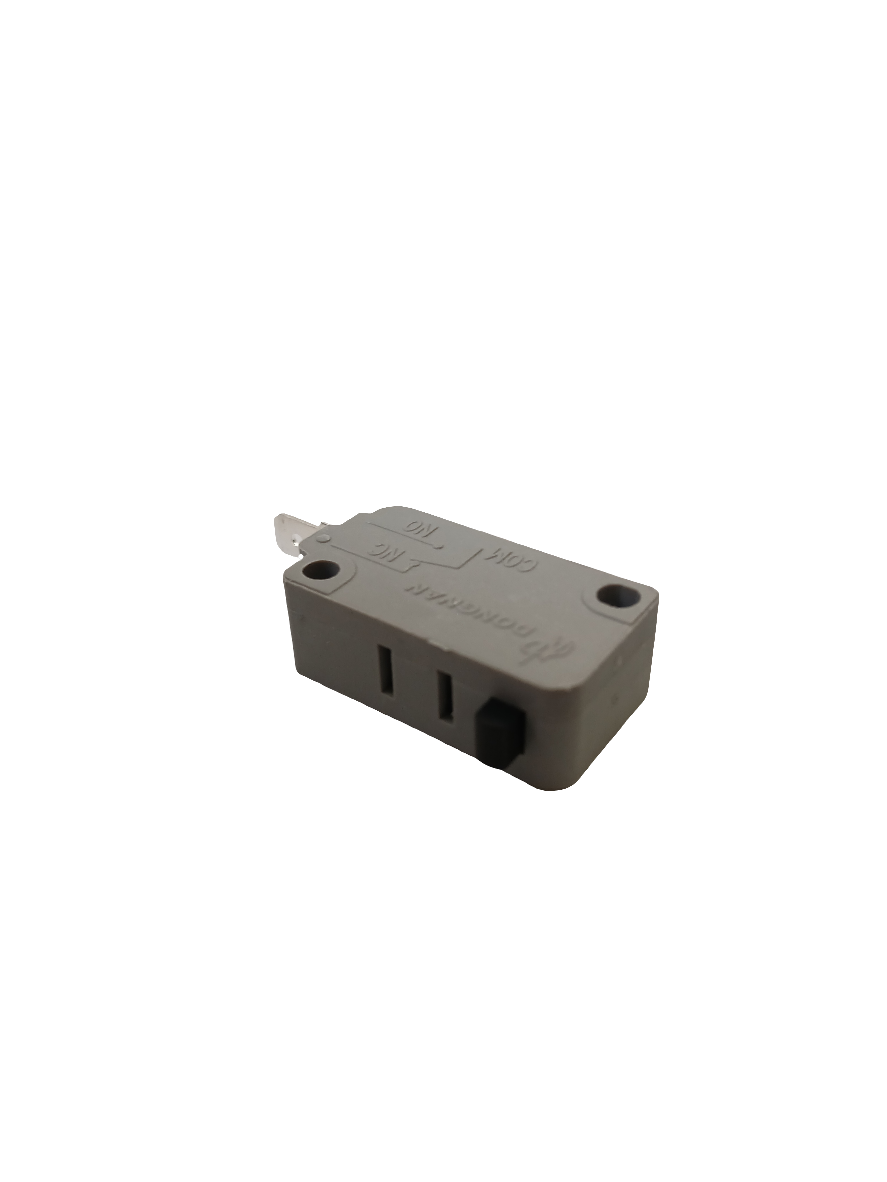

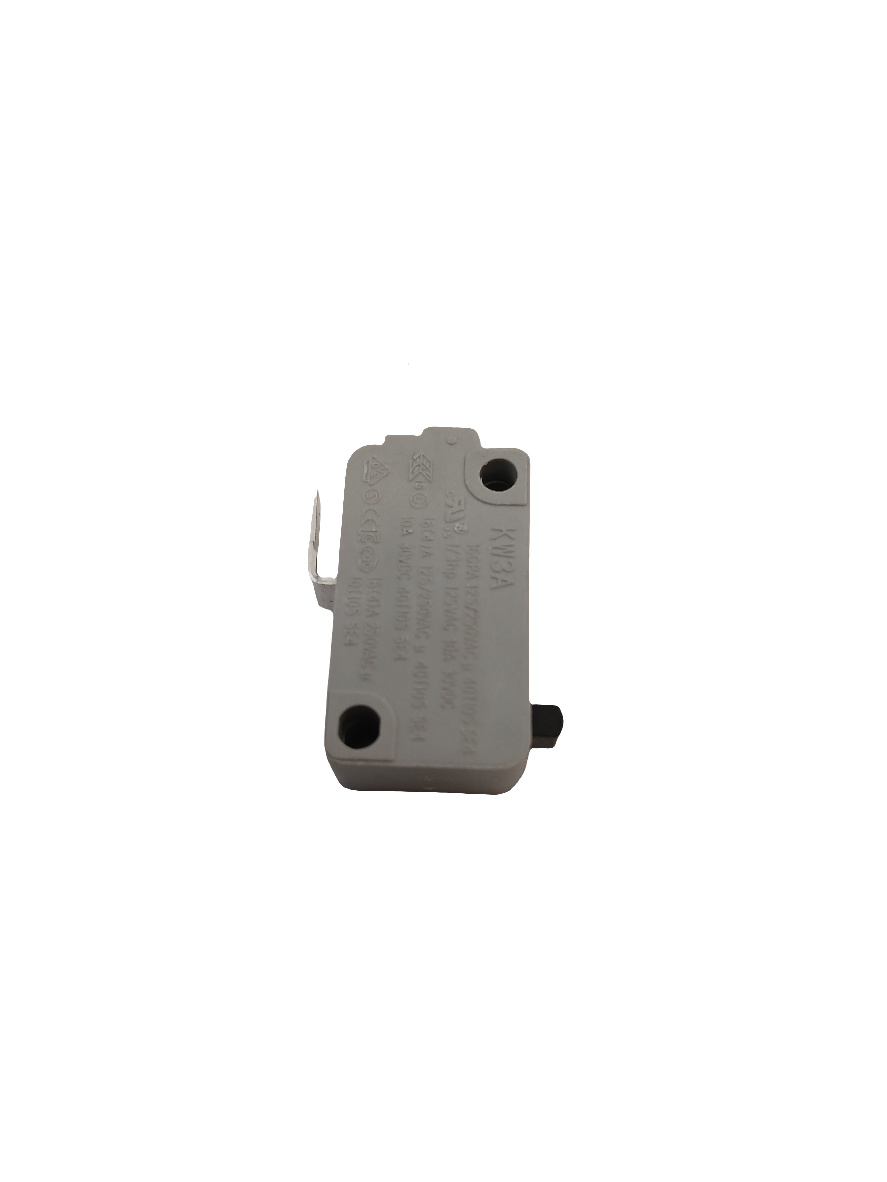

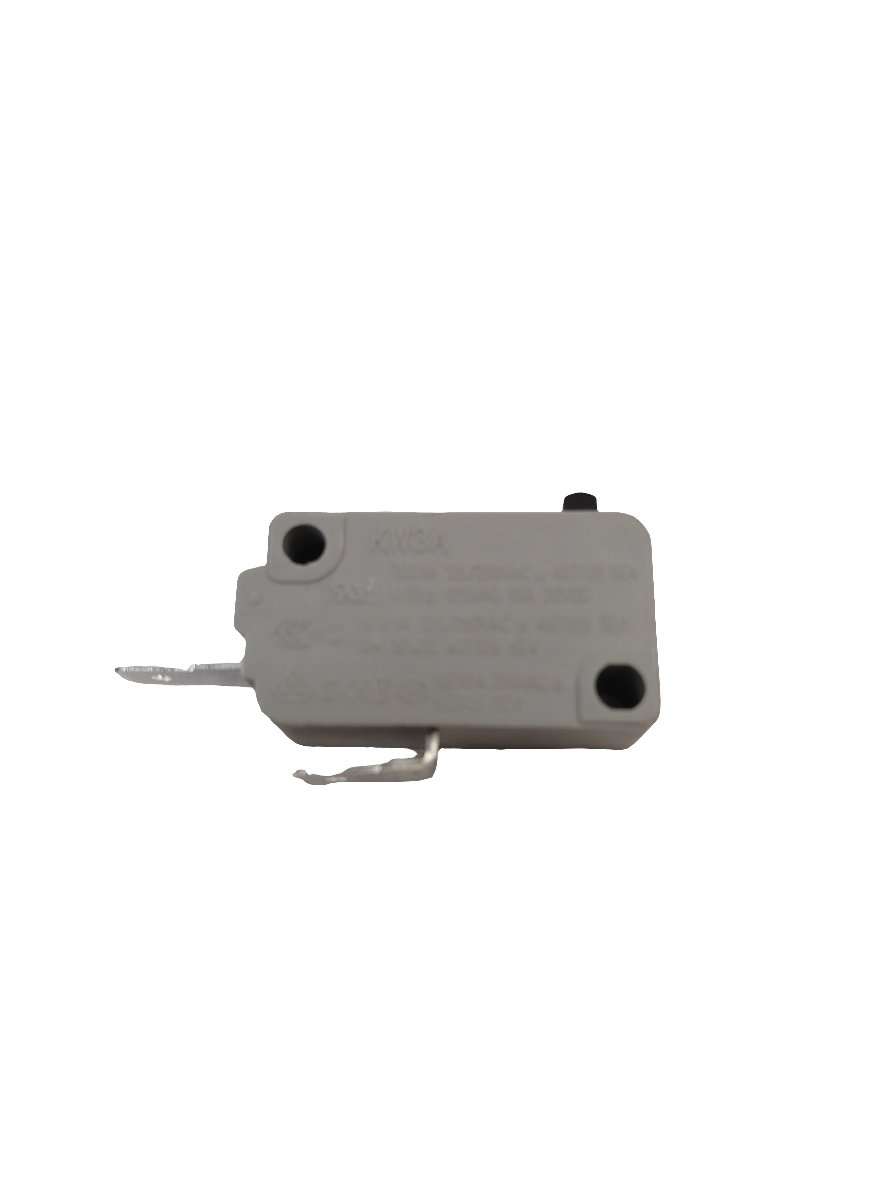

WG02F01530 Microwave Door Interlock Switch – When It Fails, Your Microwave Won’t Start, Won’t Heat, or Keeps Blowing Its Fuse
WG02F01530 is the genuine OEM door interlock switch for a wide range of GE, Hotpoint, Café, Monogram, Profile, and Haier microwaves. The door interlock system uses a series of switches that must all register correctly when the door latches — if even one fails, the magnetron won’t activate, the microwave won’t start, or the internal fuse blows every time the door opens. This is the current active OEM part, directly superseding WB27M958 and WG02F11623.
Common Symptoms
- Microwave won’t start when the start button is pressed
- Microwave runs but produces no heat
- Microwave behaves as if the door is open even when fully latched
- Internal fuse blows repeatedly after door opens
- Display works but magnetron won’t activate
- Sparking or arcing near the door latch area
Part Details
- OEM Part Number: WG02F01530
- Replaces / Cross-References: WB27M958, WG02F11623
- Part Type: Door Interlock Switch
- Compatible Brands: GE, General Electric, Hotpoint, Café, Monogram, Profile, Haier, Toshiba, Kenmore
- Appliance Type: Over-the-range and countertop microwave
- Fit Type: Direct OEM replacement — no modifications required
Installation Notes
Skill level: Advanced — qualified technician recommended. Unplug the microwave and allow at least 30 minutes before opening the cabinet. Discharge the high-voltage capacitor before touching any internal components. The door interlock switches are located behind the door latch assembly on the interior front panel — remove the outer cabinet and inner front panel to access the switch cluster. Photograph all switch positions and wire connections before removing anything. Test each switch individually with a multimeter to confirm which has failed. Disconnect wire terminals, remove the old switch, snap WG02F01530 into position, reconnect terminals, reassemble, restore power, and test door and heating function.
Compatible Models
CEB1599EL1DS, CEB1599SJ3SS, CEB515P2N1SS, CEB515P3M1DS, CEB515P3N1DS, CEB515P4M1WM, CEB515P4N1WM, CVM1599SVC01, CVM1655STC01, CVM721M2N1S5, HMV1472B1HS, HMV1472B2HS, HMV1472B3HS, HMV1472B4HS, HMV1472BHS, HVM7167RN1SS, HVM7167RN1TS, JVM1620BTC01, JVM1620WTC01, JVM1625STC01, JVM1630BFC01, JVM1630BTC01, JVM1630SPC, JVM1630SPC01, JVM1630WFC01, JVM1630WFCB01, JVM1630WTC01, JVM1635SFC01, JVM1635SFCA01, JVM1635SFCB01, JVM1635STC01, JVM3160DF5BB, JVM3160DF5CC, JVM3160DF5WW, JVM3160EF3ES, JVM3160EF4ES, JVM3160EF5ES, JVM3160RF5SS, JVM3160RF6SS, PEB7227AN1DD, PEB7227AN3DD, PEB7227DL3BB, PEB7227DL3WW, PEB9159EJ3ES, PEB9159SJ3SS, PVM2188SJC01, PVM9005BL2TS, PVM9005EJ4ES, PVM9005FM2DS, PVM9005SJ4SS, QVM7167BN1TS, QVM7167RN1SS, TVM1635BKC01, TVM1635WKC01, ZEB1227SL3SS, ZEM115SJSSC01, ZES1227SL3SS. Contact us to confirm compatibility with your model.
Why Order From XPart Supply
- Canadian business — ships fast Canada-wide
- Genuine OEM parts — exact factory fit
- Free returns if the part doesn’t work for you
- 30 years of appliance parts expertise
GE microwaves use a three-switch interlock system — a primary switch, a secondary switch, and a monitor switch. Use a multimeter in continuity mode to test each one individually before ordering. A shorted monitor switch is the most common cause of a repeatedly blown fuse. Replacing only the confirmed failed switch is fine, but if your microwave has high hours, replacing all three at once is a cost-effective way to prevent a repeat call.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
