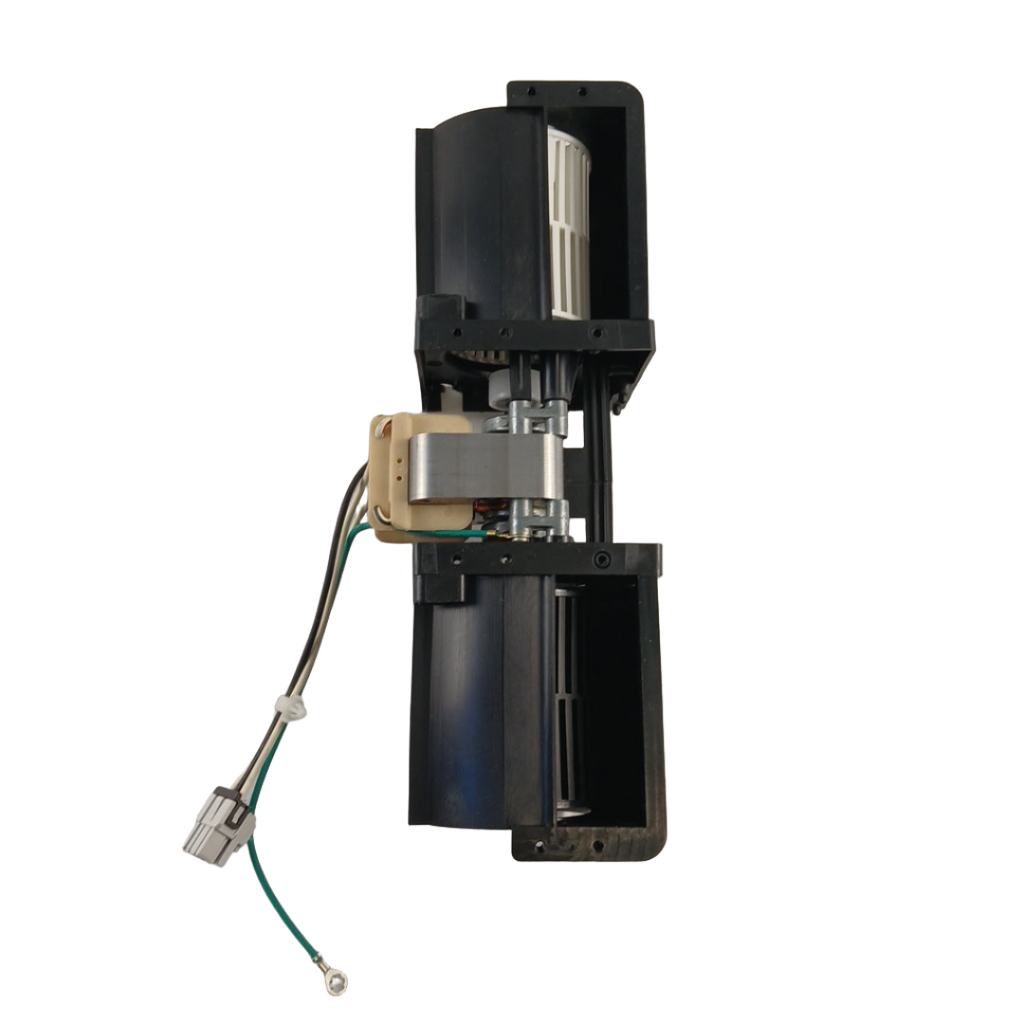

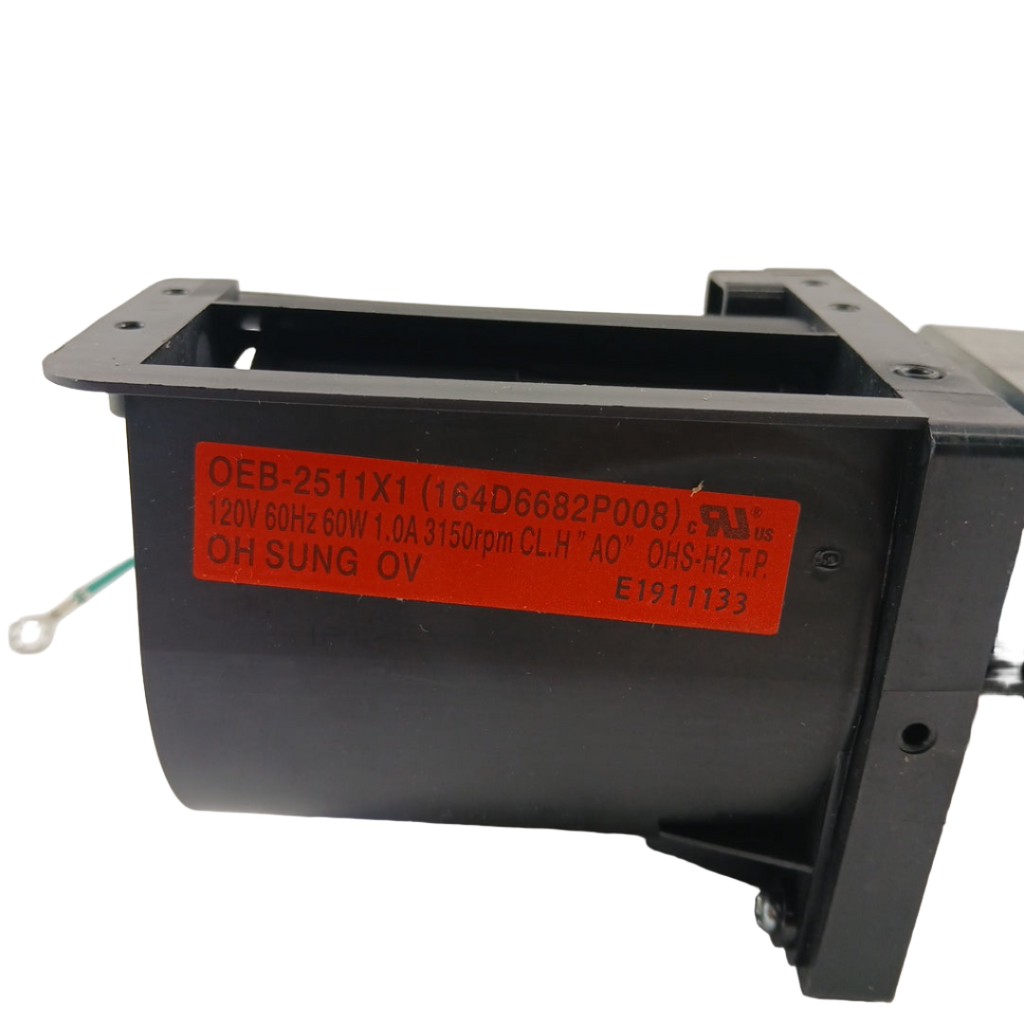

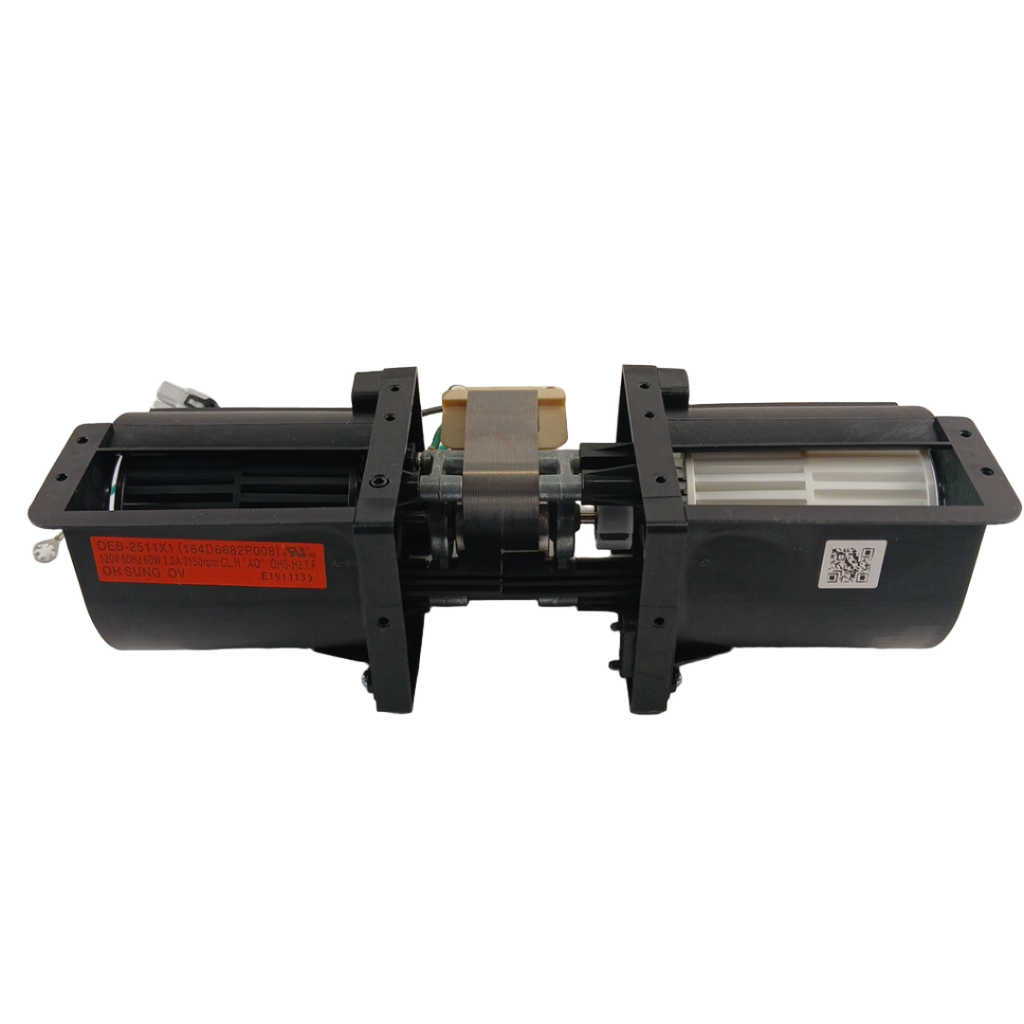

The WG02F13133 is the genuine OEM cooling fan assembly for GE, Monogram, Profile, and Café wall ovens and ranges, replacing the discontinued WG02F10131, WB26X24020, 164D6682P004, 164D6682P008, and WB26X31060. The cooling fan runs during and after baking cycles to protect the control board, door, and cabinet from heat damage — it is not the convection fan. When the cooling fan fails, the oven may overheat, shut down mid-cycle, display thermal error codes, or the control panel may become excessively hot to the touch. This is a direct OEM replacement for a precise fit with no modifications required.

✓ Model-Specific Repair Pages

The cooling fan is distinct from the convection fan — it runs continuously during baking and for a cool-down period after the oven shuts off to protect the electronic control board, door glass, and surrounding cabinetry from heat damage. On most GE wall oven models, the cooling fan is mounted at the top of the oven cavity behind the control panel. A failed cooling fan motor causes the oven to overheat and trigger thermal protection shutdowns. A fan that runs but makes grinding or rattling noise typically has a worn bearing and should be replaced before it fails completely.

✓ Common Symptoms Fixed

• Oven shutting down mid-cycle with a thermal error code
• Control panel becoming excessively hot during or after baking
• Cooling fan not running during or after oven operation
• Grinding, rattling, or squealing noise from the cooling fan area
• Oven overheating and tripping the thermal limiter
• Control board failure caused by inadequate cooling

✓ Key Features & Specifications

• OEM part number: WG02F13133
• Replaces: WG02F10131, WB26X24020, 164D6682P004, 164D6682P008, WB26X31060
• Type: Oven cooling fan (not convection fan)
• Compatible brands: GE, Monogram, Profile, Café
• 100+ compatible models across CTS, CTD, ZTD, ZTS, ZTDX, ZTSX, PTD, PTS, JTS, JCK, ZET, ZEK series

✓ Buying Options

OEM (WG02F13133): The genuine GE factory cooling fan assembly. Correct motor specifications, mounting bracket, and wiring harness for a direct-fit installation. The only recommended option for this repair.

✓ Replacement Part Numbers

• WG02F13133 (current OEM)
• WG02F10131 (superseded)
• WB26X24020 (superseded)
• 164D6682P004 (superseded)
• 164D6682P008 (superseded)
• WB26X31060 (superseded)

✓ Installation Tips

• Disconnect power at the breaker before beginning any disassembly.
• The cooling fan is typically accessed by removing the top panel or the control panel housing — consult your model's service manual for the exact access path.
• Photograph all wire harness connections before disconnecting.
• Remove the mounting screws securing the fan assembly and slide it out of the housing.
• Transfer any mounting brackets from the old fan to the new assembly if required.
• Reconnect the wire harness and secure the fan assembly before reassembling the panel.
• Restore power and run a bake cycle to confirm the cooling fan activates and runs quietly.
• The fan should continue running for several minutes after the oven shuts off — this is normal cool-down operation.
