Replacing a GE Refrigerator Compressor? You Need This Lokring to Reconnect the Refrigerant Lines

Part # WG03A03113 7MM × 5MM Replaces WR97X25268 Replaces L013000638 Fits GE, Profile, Monogram, Haier — 300+ Models ✔ Free Shipping

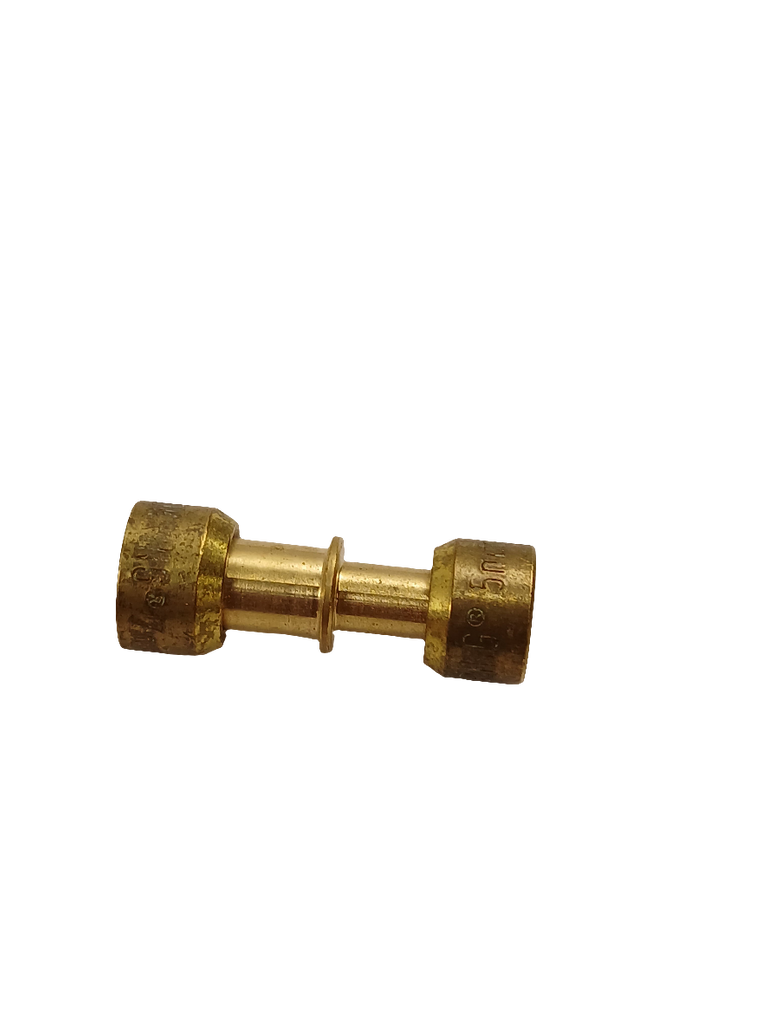

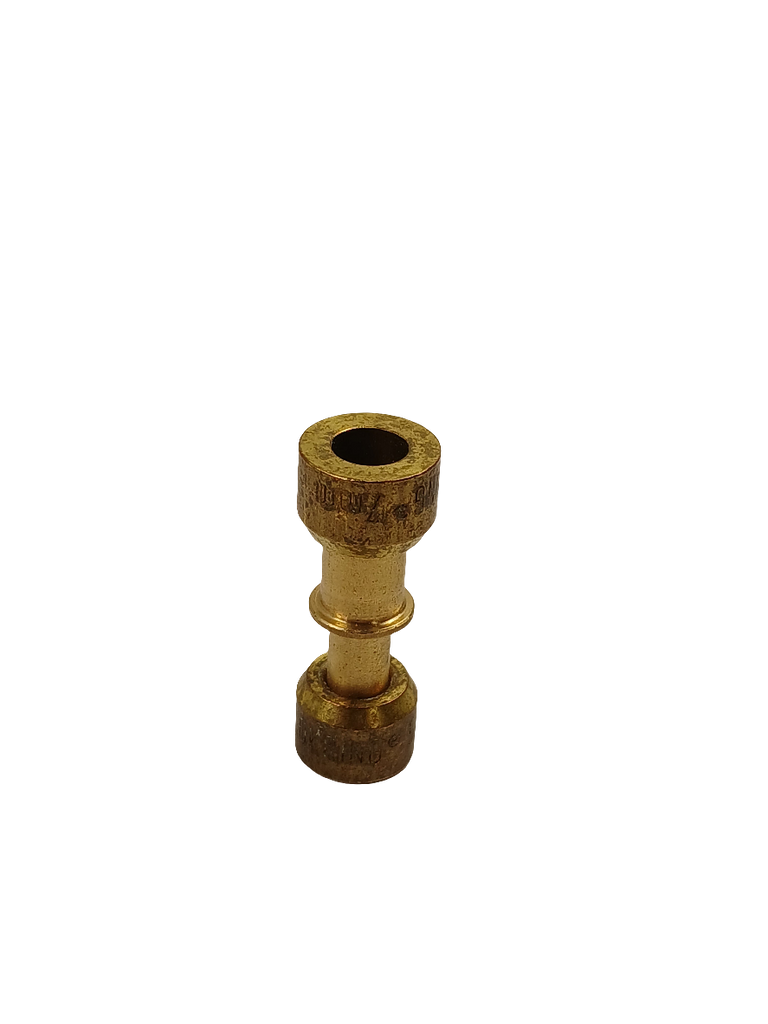

The WG03A03113 is the genuine OEM 7MM × 5MM Lokring refrigerant line coupling for GE refrigerators. A Lokring is a press-fit mechanical coupling used to join copper refrigerant tubing without soldering — it’s the factory-specified method for reconnecting refrigerant lines during compressor replacement on these models. Without the correct Lokring, the refrigerant circuit cannot be properly sealed, and the new compressor will fail to hold charge. This fitting replaces WR97X25268 and L013000638, covering a broad range of GE, Profile, Monogram, and Haier models including top-freezer (GTE, GTS), French-door (GFE, GNE, GWE, GYE), side-by-side (GSS, GSE, GZS), Monogram column (ZIF, ZIR), Café (CFE, CWE, CYE, CVE, CXE, CQE), Profile (PFE, PNE, PYE, PYD, PSS, PSE, PZS), and Haier (HRB, HRF, HRQ, HPE) series.

⚠️ Professional installation required. Lokring installation requires specialized Lokring press tooling and EPA-certified refrigerant handling. This part is sold for professional service use. Improper installation will result in refrigerant leaks and compressor failure.

✓ When Is This Part Needed?

This Lokring is required whenever the compressor or refrigerant lines are disconnected on compatible models. It is a single-use fitting — once pressed, it cannot be reused. Order one per connection point being remade. Confirm your model number below before ordering — this is the 7MM × 5MM size; verify the correct size for your specific connection point.

✓ Symptoms / Situations That Require This Part

✓ Compressor being replaced ✓ Refrigerant line disconnected or cut ✓ Refrigerant leak at line joint ✓ Previous Lokring damaged or improperly installed ✓ Fridge not holding refrigerant charge after service

✓ Part Details

Part Number: WG03A03113
Type: Compressor Lokring — Refrigerant Line Coupling
Size: 7MM × 5MM
Cross-Reference / Replaces: WR97X25268, L013000638
Use: Single-use press-fit coupling — do not reuse
Tooling Required: Lokring press tool with 7MM jaw (not included)
Fits: GE, Profile, Monogram, Haier — GTE, GTS, GBE, GDE, GFE, GNE, GWE, GYE, GSS, GSE, GZS, ZIF, ZIR, CFE, CWE, CYE, CVE, CXE, CQE, CFE26, CWE19, CZS, DFE, GBE21, GDE21, GDE25, GFE24, GFE26, GNE21, GNE25, GNE27, GWE19, GWE22, GYE18, GYE21, GZS22, PFE, PNE, PSE, PSS, PYD, PYE, PZS, QNE, QHE, QJS, XFE, XNE, XSS, HRB, HRF, HRQ, HPE, FCM, GBE17, GLE, ZWE series
Shipping: Free shipping

✓ Installation Notes

Skill Level: Professional only — Lokring press tooling and refrigerant certification required.
Professional Time: Part of compressor replacement procedure

  1. Recover refrigerant — Fully recover all refrigerant before disconnecting any lines.
  2. Cut and prepare tubing — Cut the refrigerant line cleanly and deburr the end. The tube must be round, clean, and free of burrs for the Lokring to seal properly.
  3. Slide Lokring onto tubing — Position the WG03A03113 Lokring over the tube end before inserting into the fitting.
  4. Insert tube to full depth — Push the tube into the Lokring body to the full insertion depth mark. Do not under-insert.
  5. Press with Lokring tool — Use the correct Lokring press jaw for 7MM fittings. Press until the tool clicks or bottoms out. Inspect the pressed ring for uniform compression.
  6. Leak test — After recharging, leak-test all Lokring connections with an electronic leak detector before returning the unit to service.

Never attempt to reuse a pressed Lokring. A single-use fitting that has been pressed cannot form a reliable seal a second time.

✓ Compatible Models

300+ compatible models — a selection of key series shown below. Contact us to confirm your specific model.

PNE25NMLRKES PFE24HMLRKES GNE25JMKTFES GFE24JMKTFES CFE28TP2MLS1 CFE28TP2MIS1 GNE27JYMTFFS GNE27JMMTFES GFE26JYMTFFS GFE26JMMTFES CFE28TP2MIS1 CFE28TP2MLS1 CFE26KP2NTS1 CWE23SP2MJS1 CWE23SP3MJD1 CYE22TP2MJS1 CYE22TP3MJD1 CYE22UP2MJS1 GFE24JMKTFES GFE26JMMTFES GFE26JYMTFFS GNE25JMKTFES GNE27JMMTFES GNE27JYMTFFS GSS25GGPECWW GSS25GYPECFS GSS23GGPECWW GTE16DTNDRWW GTE17DTNDRWW GTE18DTNDRWW GTE21GSHFSS GWE19JMLTFES GWE22JYMBFFS GWE23GYNHFS GYE18JMLTFES GYE22GYNIFS GZS22DMJWFES HRB15N3BGS HRF15N3AGAS HRQ16N3BAGS PFE24HMLRKES PNE25NMLRKES PYD22KYNJFS PYE22PYNGFS ZIF181NBRAII ZIF301NBRAII ZIR301NBRAII ZIR241NPNAII ZWE23PSNHSS

Contact us with your full model number to confirm compatibility before ordering.

💡 Pro Tip — GE Compressor Jobs Often Need Multiple Lokring Sizes:
GE compressor replacements typically require two or more Lokring sizes depending on the model and connection points. The 7MM × 5MM (WG03A03113) is commonly paired with the 6MM × 4MM (WG03A03038), 8MM × 7MM (WG03A03385), or 8.5MM × 6MM (WG03A03126) depending on your specific model. Confirm which sizes apply to each connection before recovering refrigerant — once you cut the line, you’re committed. Having all required Lokrings on hand before starting eliminates the risk of a mid-job parts wait with a customer’s fridge down.

✅Compatibility & Cross Reference


Part Number WG03A03113 replaces L013000638, WR97X25268

CFE28TP2MIS1, CFE28TP2MLS1, CQE28DM5NBS5, CVE28DP2NBS1, CVE28DP2NCS1, CVE28DP2NDS1, CVE28DP3NBD1, CVE28DP3NCD1, CVE28DP4NBW2, CVE28DP4NCW2, CVE28DP4NDW2, CWE23SP2MGS1, CWE23SP2MJS1, CWE23SP3MHD1, CWE23SP3MJD1, CWE23SP4MGW2, CWE23SP4MIW2, CWE23SP4MJW2, CXE22DM5PCS5, CXE22DP2PBS1, CXE22DP2PCS1, CXE22DP3PCD1, CXE22DP4PCW2, CYE22TP2MJS1, CYE22TP2MKS1, CYE22TP2MLS1, CYE22TP3MHD1, CYE22TP3MJD1, CYE22TP3MKD1, CYE22TP3MLD1, CYE22TP4MJW2, CYE22TP4MKW2, CYE22TP4MLW2, CYE22UP2MHS1, CYE22UP2MJS1, CYE22UP2MKS1, CYE22UP2MLS1, FCM16SLBWW, FCM22DLCWW, GBE17HYRAFS, GBE17HYRBFS, GLE12HSPARSS, GTE16DTNDLWW, GTE16DTNDRWW, GTE16DTNELWW, GTE16DTNERWW, GTE16DTNFLWW, GTE16DTNFRWW, GTE17DTNDRWW, GTE17DTNERWW, GTE17DTNFRWW, GTE17GSNDRSS, GTE17GSNERSS, GTE17GSNFRSS, GTE17GTNDRBB, GTE17GTNDRWW, GTE17GTNERBB, GTE17GTNERWW, GTE17GTNFRBB, GTE17GTNFRWW, GTE18DTNBRWW, GTE18DTNDRWW, GTE18DTNERWW, GTE18GMNDRES, GTE18GMNERES, GTE18GMNFRES, GTE18GSNBRSS, GTE18GSNERSS, GTE18GSNFRSS, GTE18GTNERWW, GTS19KSNBRSS, GTS19KYNBRFS, GWE23GMNHES, GYE22GMNIES, GYE22GMNJES, GYE22GYNIFS, GYE22GYNJFS, HPE16BTNBLWW, HPE16BTNBRWW, HPE16BTNDLWW, HPE16BTNDRWW, HPE16BTNELWW, HPE16BTNERWW, HPE16BTNFRWW, HRB15N3BBGS, HRF15N3AGAS, PYD22KYNIFS, PYD22KYNJFS, QHE16HYPAFS, QJS15HYRBFS, ZIF181NBRAII, ZIF181NPNAII, ZIF181NPNCII, ZIF241NBRAII, ZIF301NBRAII, ZIF301NPNAII, ZIF301NPNCII, ZIF361NBRAII, ZIR301NBRAII, ZIR301NPNAII, ZIR361NPRAII, CFE26KP2NTS1, CFE26KP2NWS1, CWE19SP2NTS1, CWE19SP2NWS1, CWE19SP3NTD1, CWE19SP3NWD1, CWE19SP4NTW2, CWE19SP4NWW2, CZS22MP2NHS1, CZS22MP2NJS1, CZS22MP2NKS1, DFE24JYRCKFS, DFE24JYRDKFS, GBE21AGKRKBB, GBE21AGKRKWW, GBE21AGKSKBB, GBE21AGKSKWW, GBE21AYRCKFS, GBE21AYRLKFS, GBE21DGKTRBB, GBE21DGKTRWW, GBE21DSKTRSS, GBE21DYKERFS, GBE21DYKHRFS, GDE21DGKRKWW, GDE21DGKSKWW, GDE21DMKRKES, GDE21DMKSKES, GDE21DYRCKFS, GDE21DYRLKFS, GDE21EGKTRBB, GDE21EGKTRWW, GDE21EMKTRES, GDE21ESKTRSS, GDE21EYKERFS, GDE21EYKFRFS, GDE21EYKGRFS, GDE21EYKHRFS, GDE25ESKTRSS, GDE25EYKERFS, GDE25EYKFRFS, GDE25EYKGRFS, GDE25EYKHRFS, GFE24JBLTFTS, GFE24JGKTFBB, GFE24JGKTFWW, GFE24JMKTFES, GFE24JSKTFSS, GFE24JYKEFFS, GFE26JBMTFTS, GFE26JEMTFDS, GFE26JEMWFDS, GFE26JEMXFDS, GFE26JGMTFBB, GFE26JGMTFWW, GFE26JMMTFES, GFE26JMMWFES, GFE26JMMXFES, GFE26JSMTFSS, GFE26JYMTFFS, GFE26JYMWFFS, GFE26JYMXFFS, GNE21DYRCKFS, GNE21DYRLKFS, GNE21FMKTFES, GNE21FSKTFSS, GNE21FYKEFFS, GNE25DYRCKFS, GNE25DYRLKFS, GNE25JGKTFBB, GNE25JGKTFWW, GNE25JMKTFES, GNE25JSKTFSS, GNE25JYKEFFS, GNE27EYMTFFS, GNE27EYMWFFS, GNE27JGMTFBB, GNE27JGMTFWW, GNE27JGMWFBB, GNE27JGMWFWW, GNE27JGMXFBB, GNE27JGMXFWW, GNE27JGMYFBB, GNE27JGMYFWW, GNE27JMMTFES, GNE27JMMWFES, GNE27JMMXFES, GNE27JSMTFSS, GNE27JYMTFFS, GNE27JYMWFFS, GNE27JYMXFFS, GSE23GGPECBB, GSE23GGPECWW, GSE23GYPECFS, GSE25GGPECBB, GSE25GGPECWW, GSE25GGPFCBB, GSE25GGPFCWW, GSE25GGPGCBB, GSE25GGPGCWW, GSE25GGPHCBB, GSE25GGPHCWW, GSE25GYPECFS, GSS23GGPECBB, GSS23GGPECCC, GSS23GGPECWW, GSS23GGPFCBB, GSS23GGPFCWW, GSS23GGPGCBB, GSS23GGPGCWW, GSS23GMPECES, GSS23GMPFCES, GSS23GMPGCES, GSS23GYPECFS, GSS23GYPFCFS, GSS23GYPGCFS, GSS25CGHWCBB, GSS25CGHWCWW, GSS25CSHWCSS, GSS25GGPECBB, GSS25GGPECCC, GSS25GGPECWW, GSS25GGPFCBB, GSS25GGPFCCC, GSS25GGPFCWW, GSS25GGPGCBB, GSS25GGPGCCC, GSS25GGPGCWW, GSS25GGPHCBB, GSS25GGPHCWW, GSS25GGPJCBB, GSS25GGPJCWW, GSS25GMPECES, GSS25GMPFCES, GSS25GMPGCES, GSS25GMPHCES, GSS25GMPJCES, GSS25GYPECFS, GSS25GYPFCFS, GSS25GYPGCFS, GSS25GYPHCFS, GSS25GYPJCFS, GSS25IENWHDS, GSS25IGNWHBB, GSS25IGNWHWW, GSS25IGNXHWW, GSS25IMNWHES, GSS25IMNXHES, GSS25IMNYHES, GSS25IMNZHES, GSS25IYNWHFS, GSS25IYNXHFS, GSS25IYNYHFS, GSS25IYNZHFS, GWE19JGLTFBB, GWE19JGLTFWW, GWE19JGLWFBB, GWE19JGLWFWW, GWE19JGLXFBB, GWE19JGLXFWW, GWE19JMLTFES, GWE19JMLWFES, GWE19JMLXFES, GWE19JSLTFSS, GWE19JYLEFFS, GWE19JYLFFFS, GWE19JYLGFFS, GWE22JYMBFFS, GWE23GYNHFS, GYE18JBLTFTS, GYE18JEMTFDS, GYE18JMLTFES, GYE18JSLTFSS, GYE18JYLEFFS, GYE21JYMBFFS, GZS22DGJWFBB, GZS22DGJWFWW, GZS22DMJWFES, GZS22DSJWFSS, GZS22IENWHDS, GZS22IMNSHES, GZS22IMNWHES, GZS22IMNXHES, GZS22IMNYHES, GZS22IYNWHFS, GZS22IYNXHFS, GZS22IYNYHFS, HRB15N3BGS, HRQ16N3BAGS, PFE24HGLRKWW, PFE24HGLSKWW, PFE24HGLTKWW, PFE24HMLRKES, PFE24HMLSKES, PFE24HMLTKES, PFE24HYRLKFS, PFE24HYRMKFS, PNE21NGLRKWW, PNE21NGLSKWW, PNE21NMLRKES, PNE21NMLSKES, PNE21NYRCKFS, PNE21NYRLKFS, PNE25NGLRKBB, PNE25NGLRKWW, PNE25NGLSKBB, PNE25NGLSKWW, PNE25NGLTKBB, PNE25NGLTKWW, PNE25NMLRKES, PNE25NMLSKES, PNE25NMLTKES, PNE25NYRCKFS, PNE25NYRDKFS, PSE25KYHEHFS, PSS28KYHECFS, PYE18HMLRKES, PYE18HMLSKES, PYE18HMLTKES, PYE18HYRBKFS, PYE18HYRLKFS, PYE18HYRMKFS, PZS22MYKEHFS, QNE27JBMTFTS, QNE27JSMTFSS, QNE27JYMTFFS, QNE27JYMWFFS, XFE26JSMTFSS, XNE25JGKTFBB, XNE25JGKTFWW, XNE25JSKTFSS, XSS23GGPECBB, XSS23GGPECWW, XSS23GYPECFS, XSS25GGPECBB, XSS25GGPECWW, XSS25GYPECFS, ZIR241NPNAII, ZWE23PSNHSS

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
