General Electric (GE) Refrigerator Bracket and Valve Assembly, Monogram WG03F00070, Replaces WR57X10084, 224D1957G002

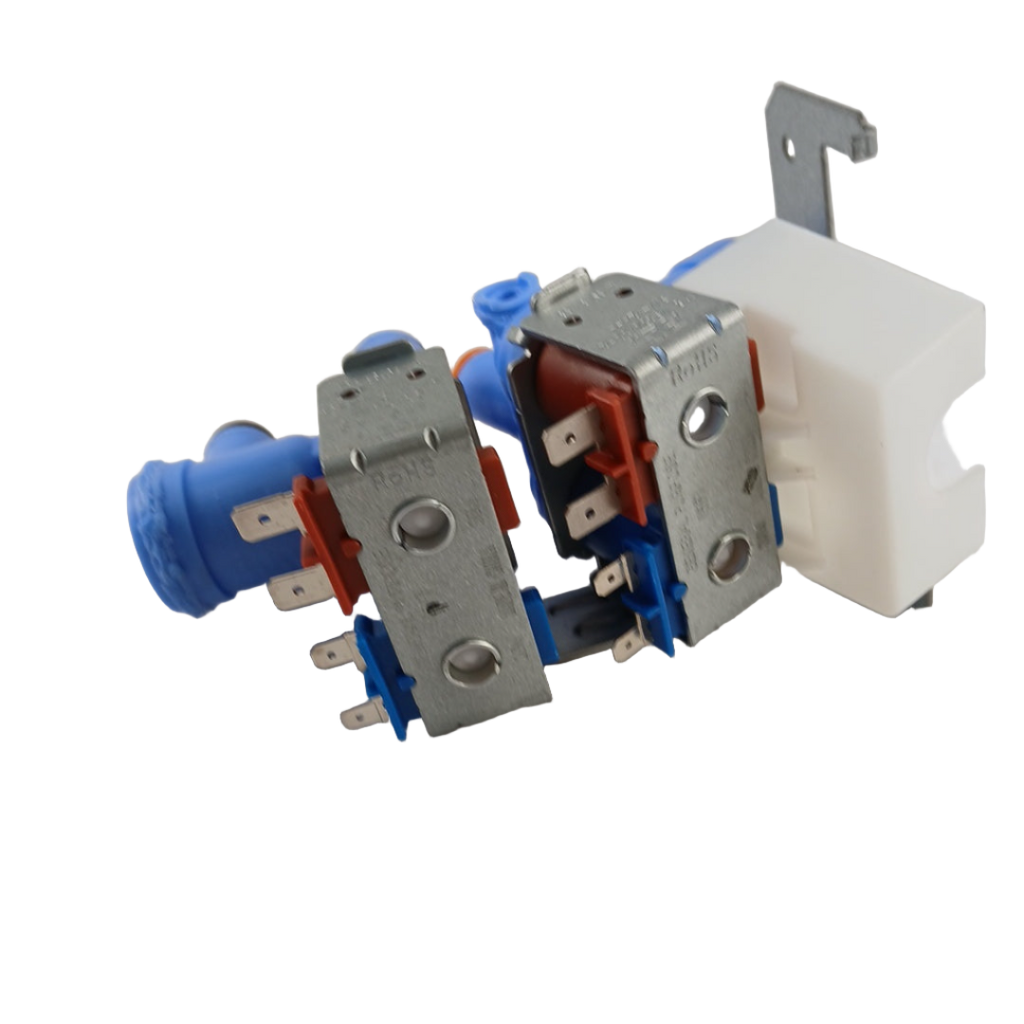

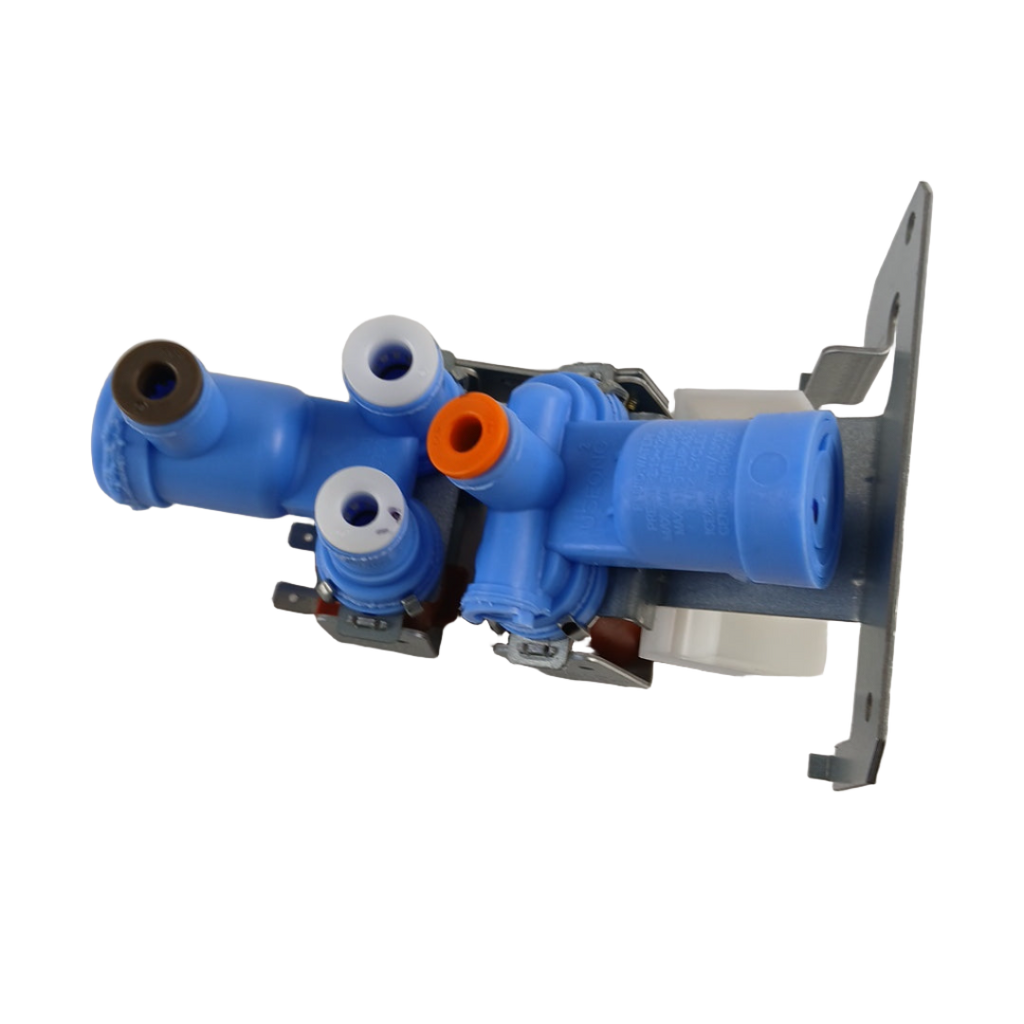

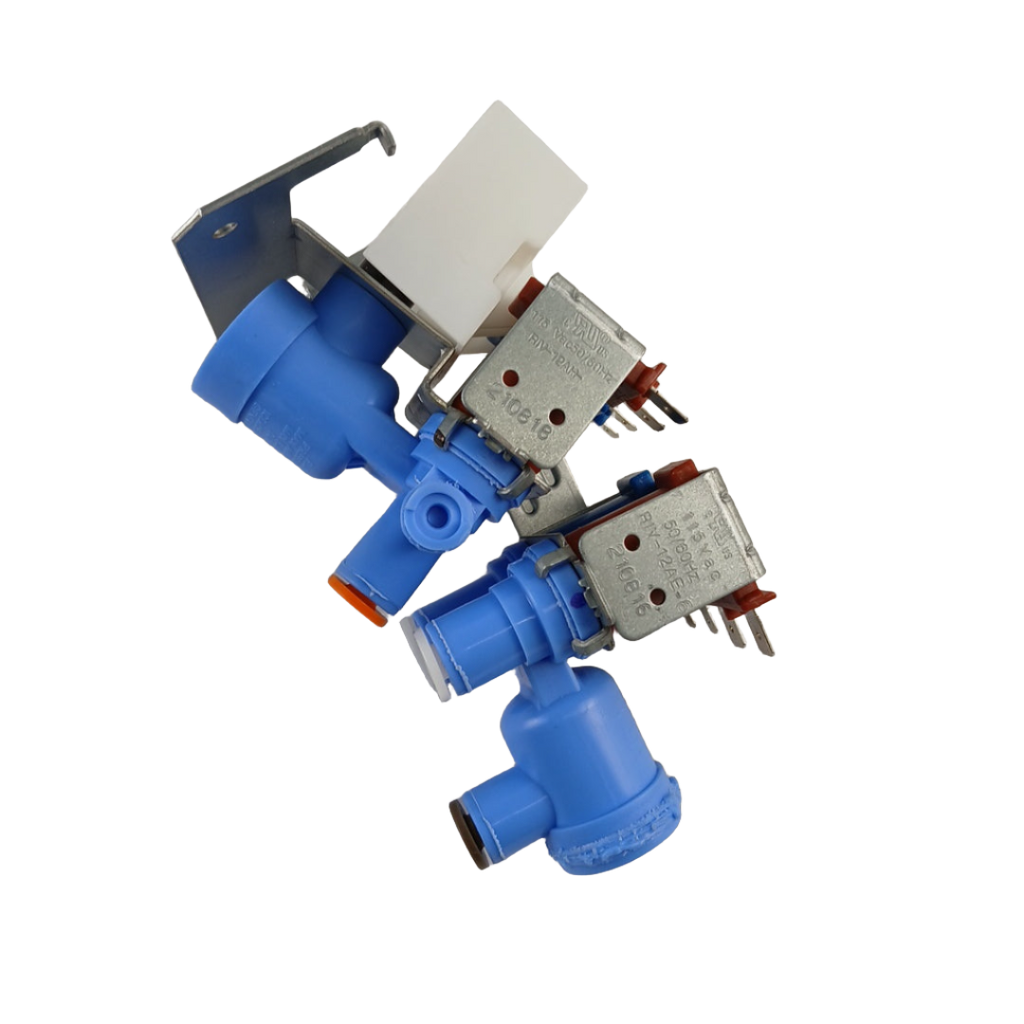

GE Monogram refrigerator water-valve and mounting-bracket assembly.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• No water from the dispenser
• Slow dispenser water flow
• Ice maker fails to fill or produces little ice
• Water leakage near the valve or its tubing connections

Check Before Replacing

• Confirm the refrigerator water-supply shutoff valve is fully open.
• Inspect the external water line for kinks, blockage, or disconnected fittings.
• Check whether the water filter is clogged; where the model permits, compare flow with the approved filter-bypass plug installed.
• Perform the refrigerator’s applicable dispenser flow test before attributing the symptom to the valve assembly.
• With power safely disconnected and the water supply shut off, visually inspect the valve and tubing connections for evidence of leakage or loose connections.

Pro Tip

Part Details

Key Features

• GE/Monogram bracket-and-valve assembly for refrigerator water routing.
• Combined valve and mounting-bracket construction.
• Documented OEM replacement relationship to WR57X10084.
• Designed for use only on models confirmed for this exact part number.

Installation Notes

• Verify the refrigerator model and the old part number before installation.
• Shut off the refrigerator water supply and disconnect electrical power before accessing the valve assembly.
• Use the model-specific service or installation instructions for tubing connections, wiring, and bracket attachment.
• After installation, inspect all water connections for leaks and purge air from the water system according to the refrigerator’s instructions.

Verified Compatible Models

CSB42WSKBSS, CSB48WSKBSS, PSB42YSKBSS, PSB48YSKBSS, ZIC360NHALH, ZIC360NHARH, ZIC360NHBLH, ZIC360NHBRH, ZIC360NXCLH, ZIC360NXCRH, ZIC360NXDLH, ZIC360NXDRH, ZICP360NHALH, ZICP360NHARH, ZICP360NXCLH, ZICP360NXCRH, ZICP360NXDLH, ZICP360NXDRH, ZICS360NHALH, ZICS360NHARH, ZICS360NXCLH, ZICS360NXCRH, ZICS360NXDLH, ZICS360NXDRH, ZIF360NHALH, ZIF360NHBLH, ZIF360NXALH, ZIF360NXARH, ZIFP360NHALH, ZIFP360NHARH, ZIFP360NXALH, ZIFP360NXARH, ZIFS360NHALH, ZIFS360NHARH, ZIFS360NXALH, ZIFS360NXARH, ZIP360NHA, ZIP360NZA, ZIPP360NHA, ZIPP360NZA, ZIPS360NHA, ZIPS360NZA, ZIS360NXA, ZIS360NXB, ZIS360NXC, ZIS360NXD, ZIS420NHA, ZIS420NHB, ZIS420NHC, ZIS420NXA, CSB42WP2NBS1, CSB48WP2NBS1, ZIC360NHCLH, ZIC360NHDRH, ZICP360NHBLH, ZICS360NHBRH, ZIP360NHB, ZIPP360NHASS, ZIPP360NHBSS, ZIPS360NHASS, ZIPS360NHBSS, ZIPS360NNBSS, ZIS420NKB, ZIS420NNBII, ZIS480NHB, ZIS480NHC, ZIS480NKB, ZISB360DHA, ZISB420DHA, ZISB420DHB, ZISB420DHC, ZISB420DKC, ZISB420DNBII, ZISB420DXA, ZISB420DXB, ZISB420DXC, ZISB480DHB, ZISB480DKB, ZISB480DKC, ZISP420DHBSS, ZISP420DKCSS, ZISP420DXASS, ZISP420DXBSS, ZISP420DXCSS, ZISP480DKBSS, ZISP480DXASS, ZISP480DXBSS, ZISS360DKBSS, ZISS420DHASS, ZISS420DKBSS, ZISS420DKCSS, ZISS420DXASS, ZISS420DXBSS, ZISS420NKBSS, ZISS480DKBSS, ZISS480DXASS, ZISS480NHBSS, ZISS480NKBSS

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
