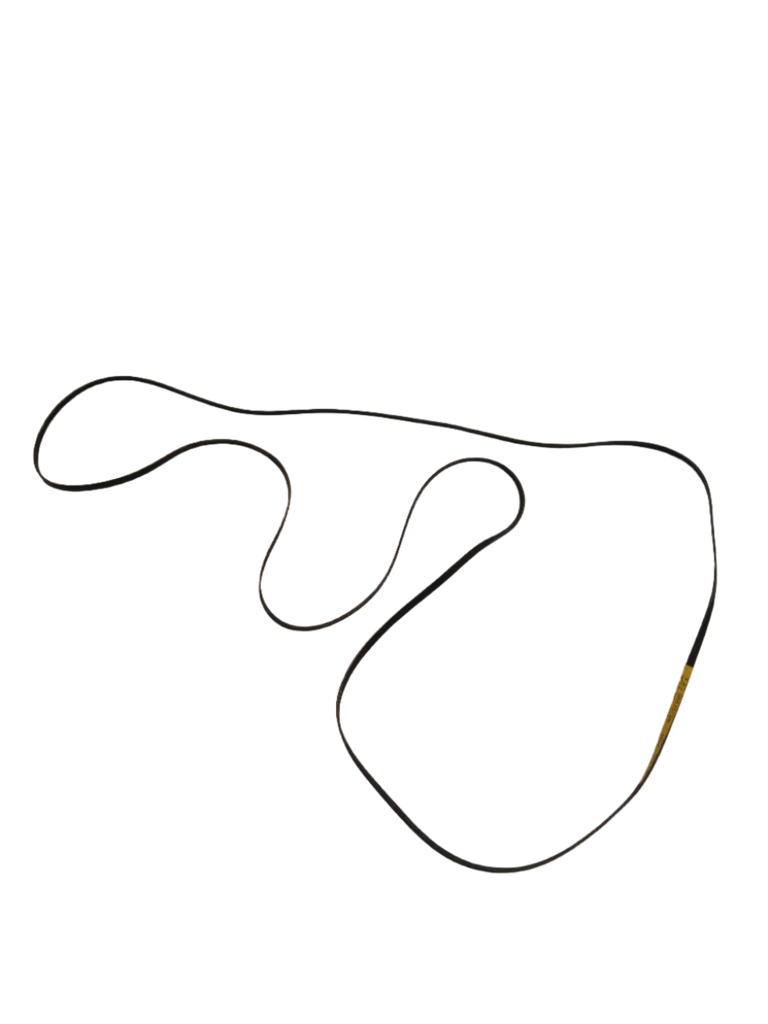

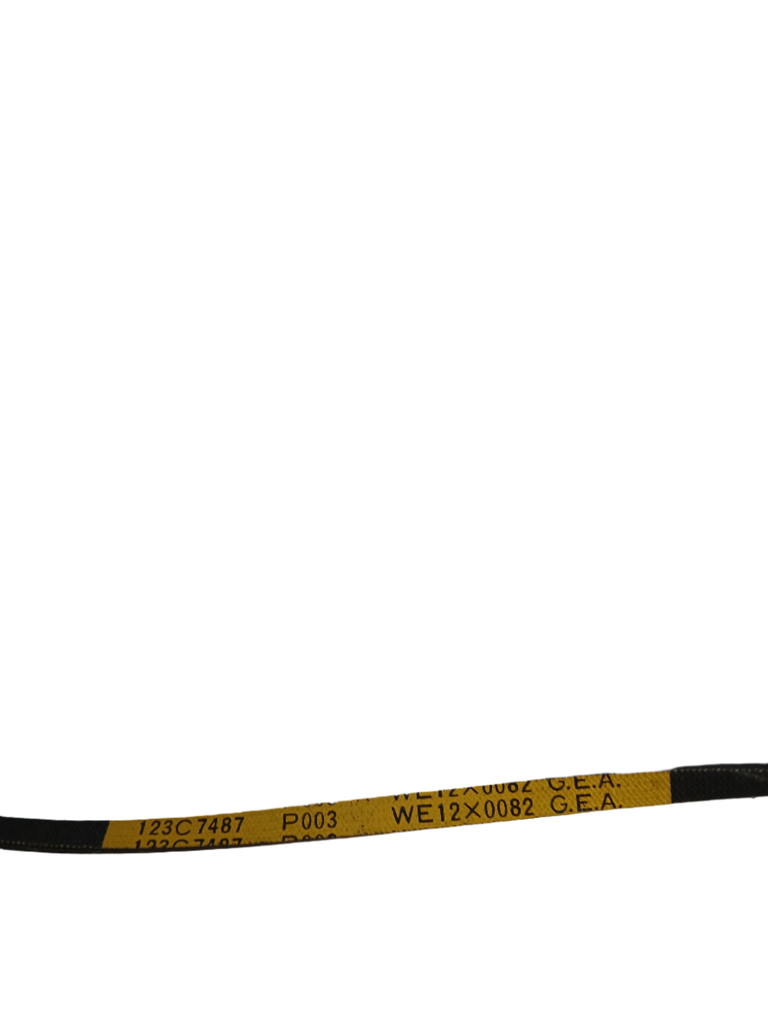

GE Dryer Drum Belt WG03F00846, Replaces 109B8509, 148270, 199B2222P001, 20103618, 43NX0027, 872H4, 878H4, WE12X10014, WE12X42, WE12X-42, WE12X82, WE12X0042, WE12X0082, WE12X42P, WE12X42R, WE12X82E, WE12X82P, WE12X82R

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Motor may run while the drum does not turn.
• Unusual or loud operating noise may occur.
• A worn or slipping belt may contribute to ineffective tumbling and extended drying.

Check Before Replacing

• Disconnect power before any inspection. With access only as permitted by the model-specific service instructions, inspect the belt for breakage, cracking, fraying, glazing, or displacement from its drive path.
• Confirm the installed belt matches the required flat, 4-rib/3-groove profile and approximately 87-inch length by 1/4-inch width.
• Do not assume the belt is the sole cause: inspect for freely moving drum-support and belt-tension components before attributing a no-tumble condition to the belt.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power before servicing; for a gas dryer, also shut off the gas supply before cabinet service.
• Install and route the belt according to the service instructions for the exact dryer model; belt routing and cabinet access vary by model.
• Before reassembly, confirm the belt is seated on the motor-pulley drive path and is not visibly twisted, damaged, or displaced.

Verified Compatible Models

DBLR333ET0WW, DCLR333ET1AA, DCLR333ET1WW, DDG7189SBLWW, GTD33EASK0WW, GTD33EASK1WW, GTD33EASK2WW, GTD33GASK0WW, GTD33GASK1WW, GTD33GASK2WW, GTD40EBMK0DG, GTD40EBMK1DG, GTD40EBMK2DG, GTD40GBMK0DG, GTD42EAMJ0WW

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
