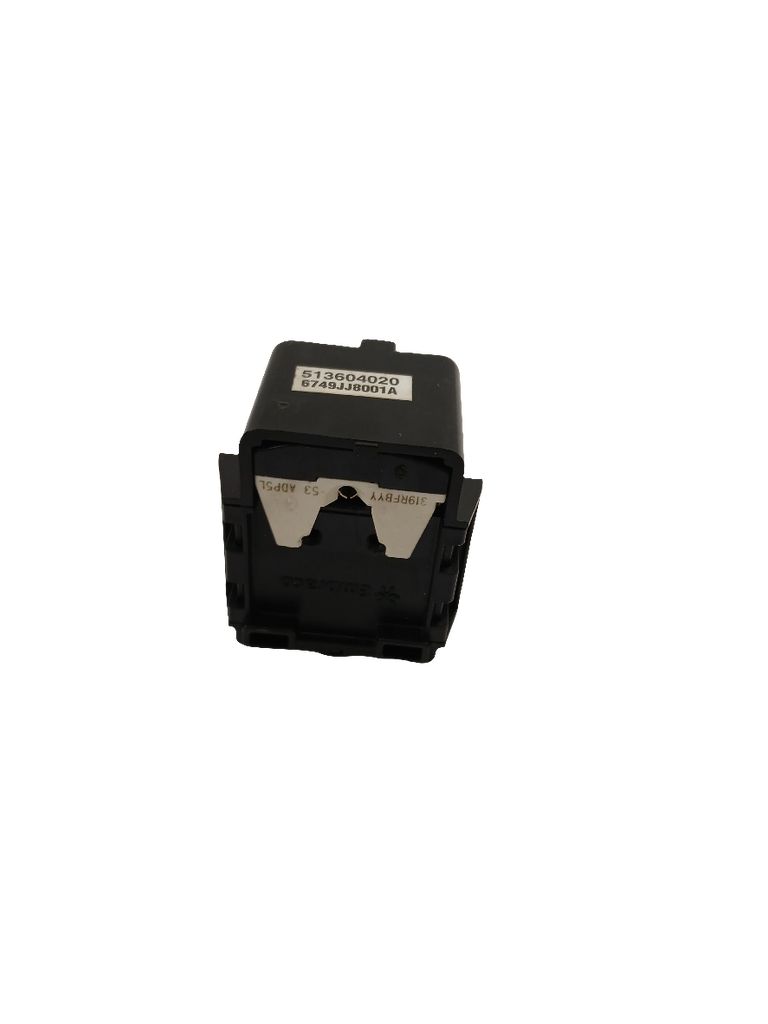

GE Refrigerator P.T.C. and overload relay assembly WG03F02235

Genuine GE OEM compressor-start assembly combining a P.T.C. start relay and overload protector (OLP). It is used in refrigerators and is associated with a no-start condition when failed.

Is This the Right Part?

Common Symptoms

• Compressor hums without starting.
• Compressor overload cycles or trips during a start attempt.

Check Before Replacing

• Disconnect power before accessing the compressor-start assembly.
• Inspect the assembly, connector, and compressor-terminal area for loose connections, heat damage, or physical damage.
• Check that the condenser is clean, the condenser fan operates, and the refrigerator is not being supplied through an unapproved extension cord.
• A qualified technician can verify that the refrigerator is calling for cooling and that correct supply voltage reaches the compressor-start circuit; a compressor or wiring fault can produce similar symptoms.

Pro Tip

Part Details

Key Features

• Combined P.T.C. compressor-start relay and overload-protector assembly.
• Compressor-mounted, plug-in style start-device assembly.
• Matching U.S. GE service number WR07X10097 is listed by GE Appliances Parts as a refrigerator pressure-temperature cutout device.

Installation Notes

• Disconnect refrigerator power before removing the compressor cover or start assembly.
• Record wire and component orientation before removal, then ensure the replacement assembly is fully seated on the compressor terminals.
• If the original model uses a run capacitor, retain/install it only as required by that model's original compressor-start configuration.
• Reinstall the compressor cover before restoring power.

Verified Compatible Models

PFS22MBSABB, PFS22MBSAWW, PFS22MBSBBB, PFS22MBSBWW, PFS22MBWABB, PFS22MBWAWW, PFS22MBWBBB, PFS22MBWBWW, PFS22MISABB, PFS22MISAWW, PFS22MISBBB, PFS22MISBWW, PFS22MIWBBB, PFS22MIWBWW, PFS22SBSASS, PFS22SBSBSS, PFS22SBSCSS, PFS22SISASS, PFS22SISBSS, PFS22SISCSS

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
