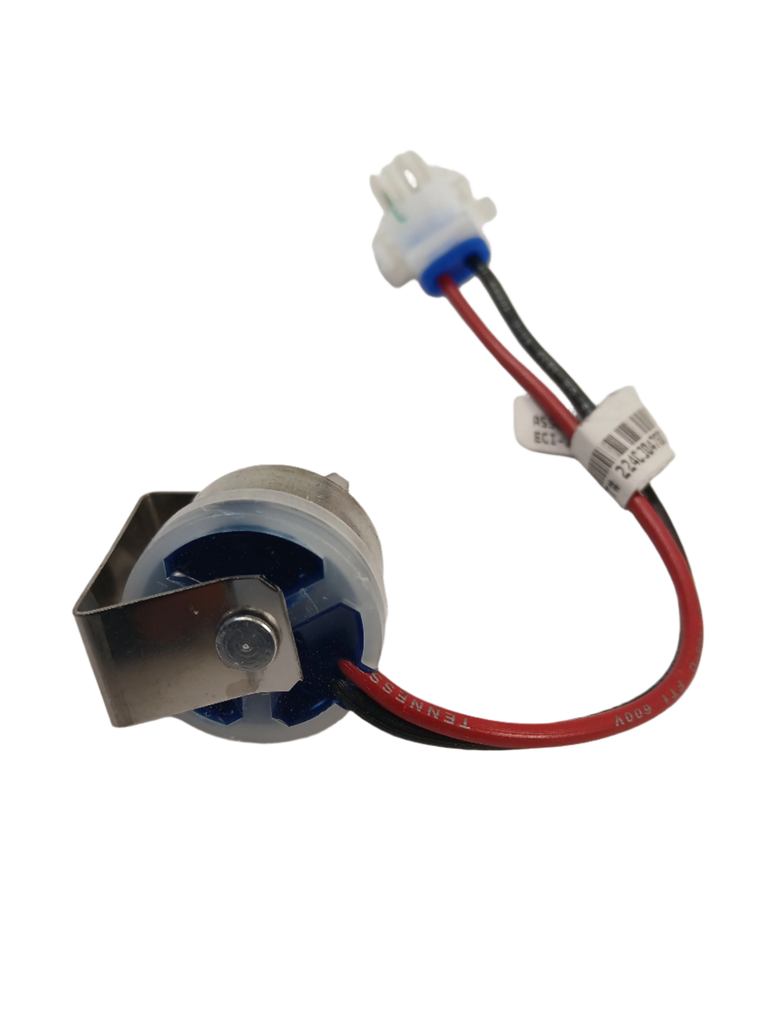

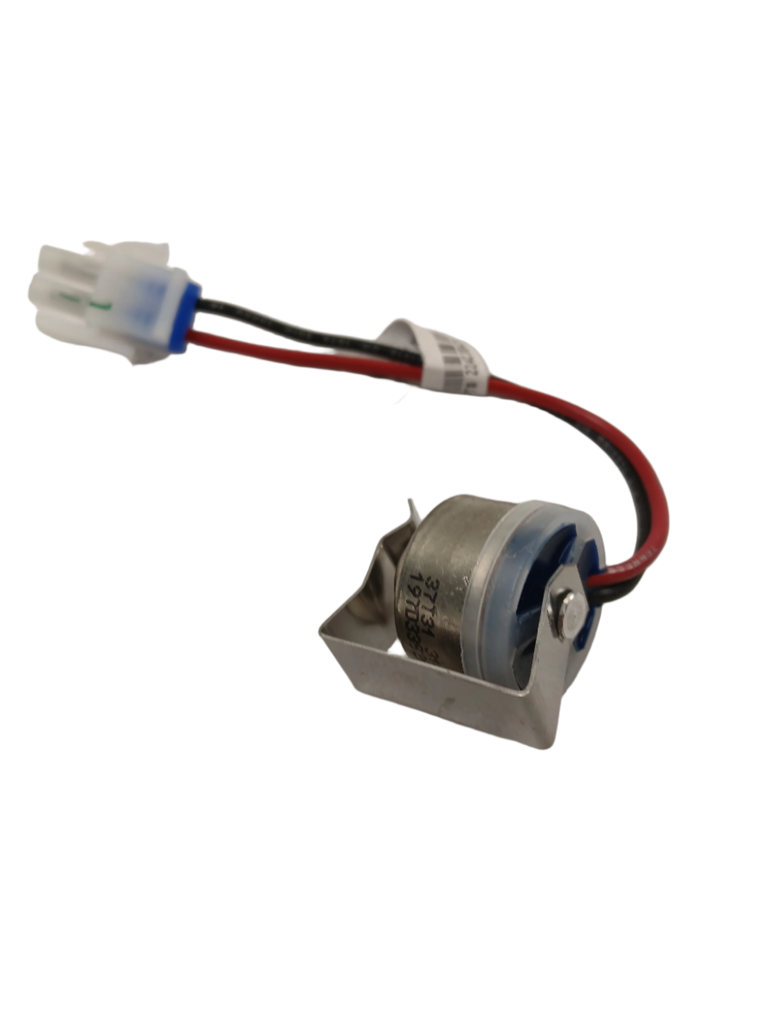

WG03L05655 GE Refrigerator Defrost Limiter – Fix Your Fridge That Won't Defrost, Freezes Food, or Runs Constantly

The complete fix for a GE refrigerator with defrost problems, frozen food in the fresh food section, or a compressor that runs non-stop.

The defrost limiter (also called defrost thermostat or defrost bi-metal) is a safety device that monitors the temperature of the evaporator coils during the defrost cycle. When the coils reach the proper temperature, it signals the defrost heater to turn off, preventing overheating. When this part fails, your refrigerator can't complete proper defrost cycles, leading to ice buildup, frozen food, or excessive energy use.

✓ Common Symptoms Fixed

• Refrigerator won't defrost properly
• Ice buildup on evaporator coils
• Food freezing in fresh food section
• Compressor runs constantly without cycling off
• Frost accumulation in freezer compartment
• Temperature fluctuations in refrigerator
• High energy bills from constant running

✓ Key Features & Specifications

• Part Number: WG03L05655
• Replaces: WR50X10105, 224D3047G001
• Type: Defrost Limiter / Defrost Thermostat
• Compatibility: GE refrigerators (see compatible models below)
• Function: Monitors evaporator temperature and controls defrost cycle timing
• Condition: Available in New (OEM) and Used options

✓ Buying Options

New (OEM): Genuine GE factory part, brand new in original packaging. Guaranteed fit and performance. Best for long-term reliability.

Used: Professionally tested and verified working. Removed from working refrigerators. Great budget option with significant savings. Limited availability.

✓ Why This Part Fails

The defrost limiter fails from repeated thermal cycling over years of use. Each defrost cycle heats and cools the bi-metal contacts, eventually causing them to stick, corrode, or lose calibration. When it fails in the open position, the defrost heater won't turn on, causing ice buildup. When it fails in the closed position, the heater runs too long, potentially freezing food in the fresh food section.

✓ Installation Tips

Difficulty: Moderate | Time: 45 minutes to 1 hour | Tools: Screwdriver, nut driver, multimeter

Steps:

1. Unplug refrigerator and remove all food from freezer
2. Remove freezer shelves and access panel to expose evaporator coils
3. Locate defrost limiter attached to evaporator coils
4. Disconnect wire harness and remove mounting clip
5. Install new limiter in same position, ensuring good contact with coils
6. Reconnect wiring, reassemble panels, and restore power
7. Monitor for proper defrost cycling over next 24 hours

Safety Note: Always unplug refrigerator before working on electrical components. Test new limiter with multimeter before installation to verify continuity.

✓ Compatible Models

GE Refrigerators: CDB36LP2PBS1, GEHCDB36LP2PBS1, GEHCDB36LP2PHS1, GEHCDB36LP2RBS1, GEHCDB36RP2PBS1, GEHCDB36RP2PHS1, GEHZIC360NHALH, GEHZIC360NHARH, GEHZIC360NHBLH, GEHZIC360NHBRH, GEHZIC360NHCLH, and other compatible models

Verify your model number and compare with your existing part to ensure proper fit.

✓ Replacement Part Numbers

This part replaces: WR50X10105, 224D3047G001

✓ Why Choose XPart Supply

• Genuine OEM Parts: Factory-authorized GE replacement parts
• Expert Support: 30+ years experience helping Canadians fix appliances
• Fast Shipping: Quick delivery across Canada
• Guaranteed Fit: Free phone support to verify compatibility
• Canadian Business: Trusted local supplier since 1994

✓ Frequently Asked Questions

Q: How do I know if my defrost limiter is bad?
A: Test it with a multimeter. With the refrigerator unplugged, disconnect the limiter and test for continuity. At room temperature, it should show continuity (closed circuit). If it shows no continuity or infinite resistance, it's failed and needs replacement.

Q: What's the difference between a defrost limiter and a defrost thermostat?
A: They're the same part with different names. Both refer to the bi-metal switch that monitors evaporator temperature during defrost cycles. Some manufacturers call it a limiter, others call it a thermostat.

Q: Can I use a used defrost limiter?
A: Yes, if it tests good with a multimeter. Our used limiters are professionally tested and verified working. They're removed from working refrigerators and offer significant savings. However, for maximum reliability, we recommend the new OEM part.

Q: Will this fix my refrigerator that's not cooling?
A: If your refrigerator isn't cooling AND you see ice buildup on the evaporator coils, a failed defrost limiter is likely the cause. The ice blocks airflow, preventing proper cooling. Replacing the limiter allows proper defrost cycles, melting the ice and restoring cooling.

Q: How often should I replace the defrost limiter?
A: Defrost limiters typically last 8-12 years. Replace it only when it fails or shows symptoms of malfunction. It's not a regular maintenance item like filters.
