Supco WV10029 Washer Water Inlet Valve (replaces WG04F00002, WH13X10029, 366039970201)
WG04F00002 Washer Water Inlet Valve (Water Valve Assembly, Fill Valve, Solenoid Valve)
WG04F00002 Washer Water Inlet Valve (Water Valve Assembly, Fill Valve, Solenoid Valve)
Supco WV10029 Washer Water Inlet Valve (replaces WG04F00002, WH13X10029, 366039970201)
WG04F00002 Washer Water Inlet Valve (Water Valve Assembly, Fill Valve, Solenoid Valve)
WG04F00002 Washer Water Inlet Valve (Water Valve Assembly, Fill Valve, Solenoid Valve)

WG04F00002 Washer Water Inlet Valve (Water Valve Assembly, Fill Valve, Solenoid Valve)

Price
$99.99
Buying Options: XPart

Product variant with selected options does not exist!

Frequently Bought Together

Confirm This Fits Your Model
Not sure where to find your model number? See guide →

What Customers Say About XPart Supply

4.82 ★ (250)
Verified

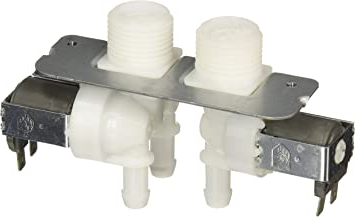

WG04F00002 Washer Water Inlet Valve

The WG04F00002 is a genuine OEM washer water inlet valve assembly used on select GE/Hotpoint washers. It’s a 2-inlet / 3-outlet solenoid valve set that controls hot/cold water flow into the dispenser/tub through electrically actuated coils. The main control board energizes the solenoids based on cycle stage (prewash/wash/rinse/softener/bleach) and water level feedback. Common failures include clogged inlet screens (low flow), stuck solenoids (no fill/overfill), internal diaphragm wear (slow leak), coil burnout (open circuit), or connector corrosion. Symptoms: washer won’t fill, fills very slowly, wrong water temperature, overfills, water continues to trickle in when off, fill errors, or poor rinse performance. IMPORTANT: Always check household water pressure and clean the inlet screens before condemning the valve. CRITICAL: Unplug washer and shut off water supply before servicing.



✅Compatibility & Cross Reference

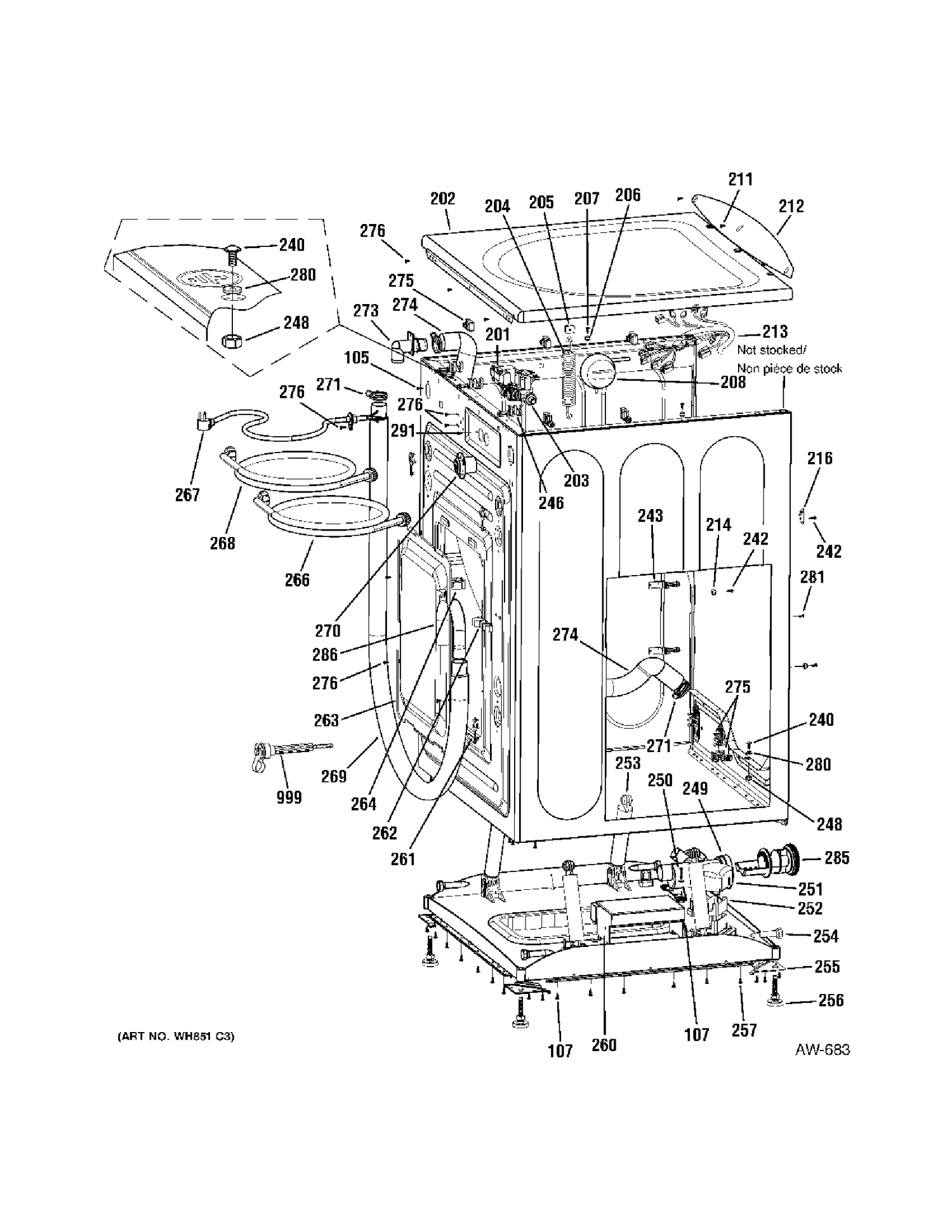

Item #203 in diagram.


WH13X10029, 366039970201


GBVH5140H0WW, GBVH5140H1WW, GBVH5200J0WW, GBVH5200J1WW, GBVH5200J3WW, GBVH5200J4WW, GBVH5200K0WW, GBVH5300K0WW, GBVH5300K2WW, GFAN1000L0WW, GFAN1000L1WW, GFAN1000L2WW, GFAN1000L3WW, GFAN1000L4WW, GFAN1100L0WW, GFAN1100L1WW, GFAN1100L2WW, GFAN1100L3WW, GFAN1100L4WW, GFW400SCK0WW, GFW400SCM0WW, GFW400SCM1WW, GFW430SSM0WW, GFW430SSM1WW, GFW450SPK0DG, GFW450SSK0WW, GFWH1200D0WW, GFWH1200D1WW, GFWH1200H0WW, GFWH1200H1WW, GFWH1300D0WW, GFWN1000L0WW, GFWN1000L1WW, GFWN1000L2WW, GFWN1100D0WW, GFWN1100D1WW, GFWN1100H0WW, GFWN1100H1WW, GFWN1100H2WW, GFWN1100L0WW, GFWN1100L1WW, GFWN1100L2WW, GFWN1100L3WW, GFWN1100L4WW, GFWN1200D0WW, GFWN1200D1WW, GFWN1300D0WW, GFWN1300J0WW, GFWN1300J1WW, GFWN1600J0WW, GFWN1600J1WW, GFWS1700H0WW, GFWS1700H1WW, GFWS1705H0DG, GFWS1705H1DG, GMAN1200D0WW, GMAN1200L1WW, GMAN1200L2WW, GMAN1200L4WW, JCB730DF3BB, WBVH5100H0WW, WBVH5100H1WW, WBVH5200J0WW, WBVH5200J1WW, WBVH5200J2WW, WBVH5200J3WW, WBVH5200K0WW, WBVH5300K0WW, WBVH5300K1WW, WBVH5300K3WW

Water Inlet Valve, Fill Valve, Solenoid Valve, Water Valve Assembly

GE, Hotpoint (verify by model)

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
