GE Washer Inverter Board WG04F11964 — Discontinued, Replaced by WG04F13075 / WH22X38837

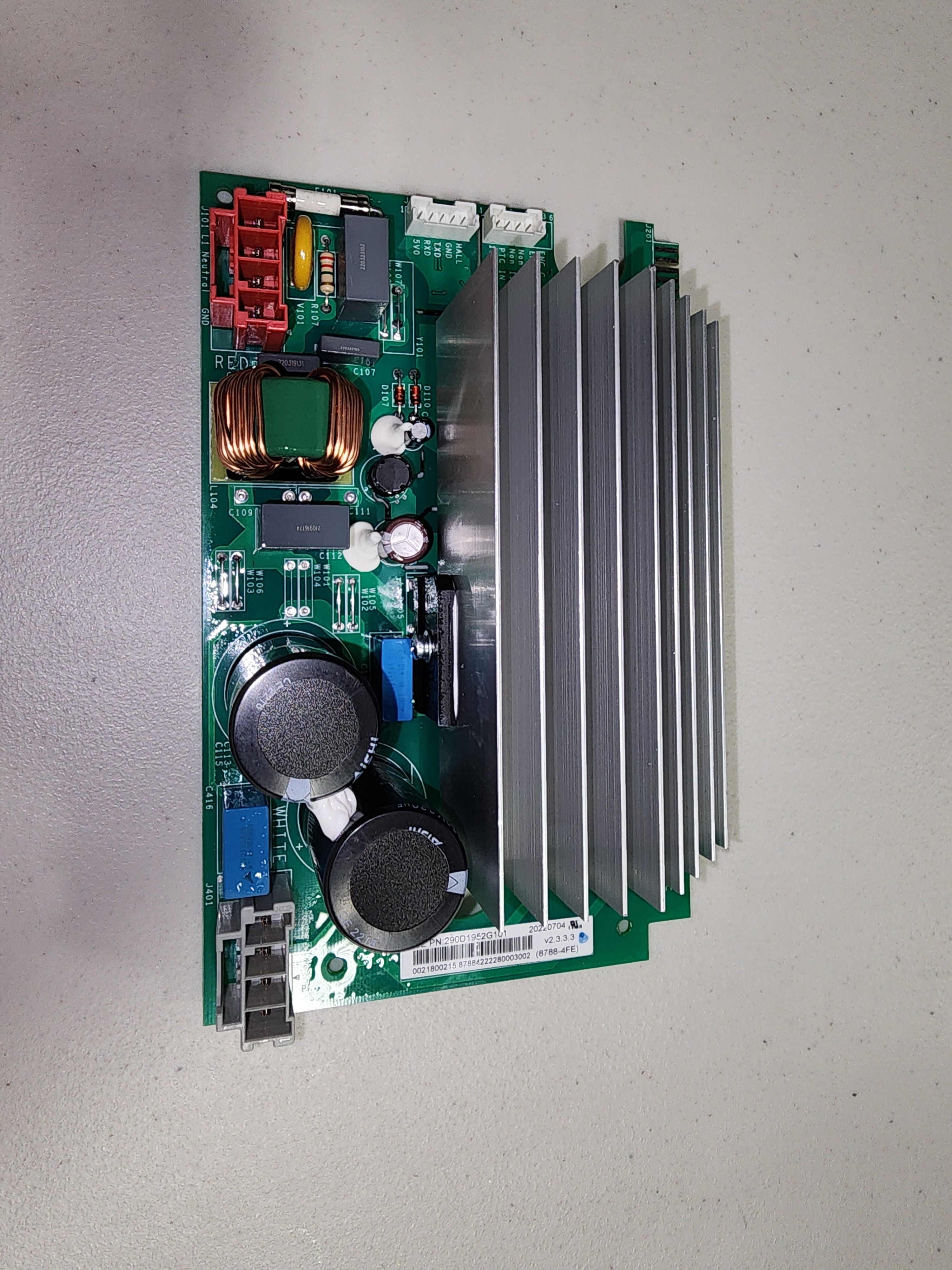

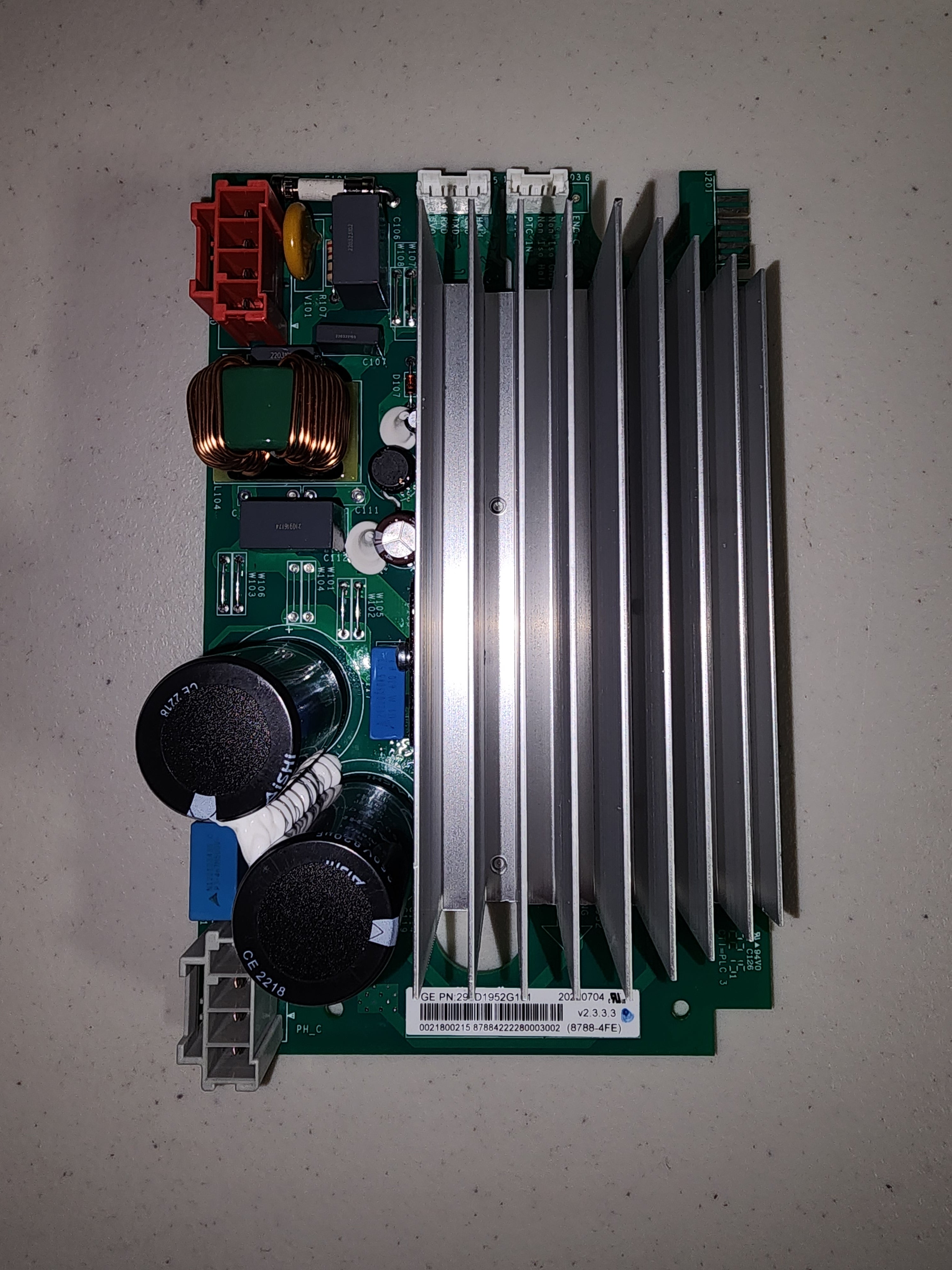

WG04F11964 is a discontinued GE/Mabe front-load washer motor inverter board. The inverter board receives operating commands from the washer’s main control and regulates the drive motor’s speed and direction.

The current Canadian replacement is WG04F13075. The current U.S. replacement is WH22X38837.

Symptoms such as no spin, interrupted cycles or motor-related faults may be caused by the inverter board, motor, wiring, main control, door-lock system, drainage problems or another component. Diagnose the washer using its model-specific service procedure before replacing an electronic board.

Disconnect electrical power before servicing. Confirm the complete washer model and revision before ordering.

❓ Is This the Right Part?

This is the correct part if ALL of the following are true:

• ✔ Washer powers on — display lights up or control panel responds
• ✔ Water fills and drains correctly
• ✔ Door latch engages and no door-related fault codes are present
• ✔ Main control board has been ruled out as the fault source through model-specific diagnosis
• ✔ Inverter board has been identified as the fault through model-specific service procedure
• ✔ Your physical inventory is labelled WG04F11964

Not sure? Send us your model number — we’ll confirm before you order.

🔧 Common Symptoms Associated With Inverter Board Failure

• Drum does not spin — motor hums or is silent during spin phase
• Washer stops mid-cycle during spin or agitation
• Inconsistent or erratic spin speeds — drum surges or stutters
• Motor-related fault codes displayed (confirm against your model’s service documentation)
• LED status indicators flashing abnormally

These symptoms may also be caused by the drive motor, wiring harness, main control board, door-lock assembly, or a drainage fault. Confirm the root cause using your model’s service procedure before ordering.

📦 Part Details

• Supersession chain (CA): WG04F11964 → WG04F12301 → WG04F12508 → WG04F12652 → WG04F12727 → WG04F13075
• Supersession chain (US): WH22X29531 → WH22X32059 → WH22X32957 → WH22X34657 → WH22X35837 → WH22X38837

⚙️ Installation Notes

Skill Level: Moderate — 30 to 45 minutes. Disconnect electrical power before beginning — this board carries high-voltage motor drive current. Remove the rear access panel to locate the inverter board mounted near the motor. Photograph all harness connectors before removal, disconnect them, swap the board, and reconnect all connectors firmly. Inspect the motor wiring harness and connector pins for corrosion or burn marks before installing. Run a test spin cycle to confirm operation before reassembling the panel.

Compatible Models

GFW510SCN1WW, GFW510SCN3WW, GFW510SCN4WW, GFW510SCN5WW, GFW510SCV0WW, GFW550SPN1DG, GFW550SPN2DG, GFW550SPN3DG, GFW550SPR0RS, GFW550SPR3RS, GFW550SPR4RS, GFW550SSN0WW, GFW550SSN1WW, GFW550SSN2WW, GFW550SSN3WW, GFW550SSN4WW, GFW550SSN5WW, GFW650SPN2SN, GFW650SSN2WW, GFW650SSN4WW, GFW655SPV0DS, GFW655SSV0WW, GFW850SPN2DG, GFW850SPN2RS, GFW850SPN3RS, GFW850SPN5RS, GFW850SSN2WW, GFW850SSN4WW, GFW850SSN5WW, PFW870SPV0RS, PFW870SSV0WW, PFW950SPT0DS, PFW950SPT2DS, PFW950SPT3DS, PFW955SPW0DS, PFW955SPW0GN
