GE Dryer Timer knob assembly, white WG04L04237

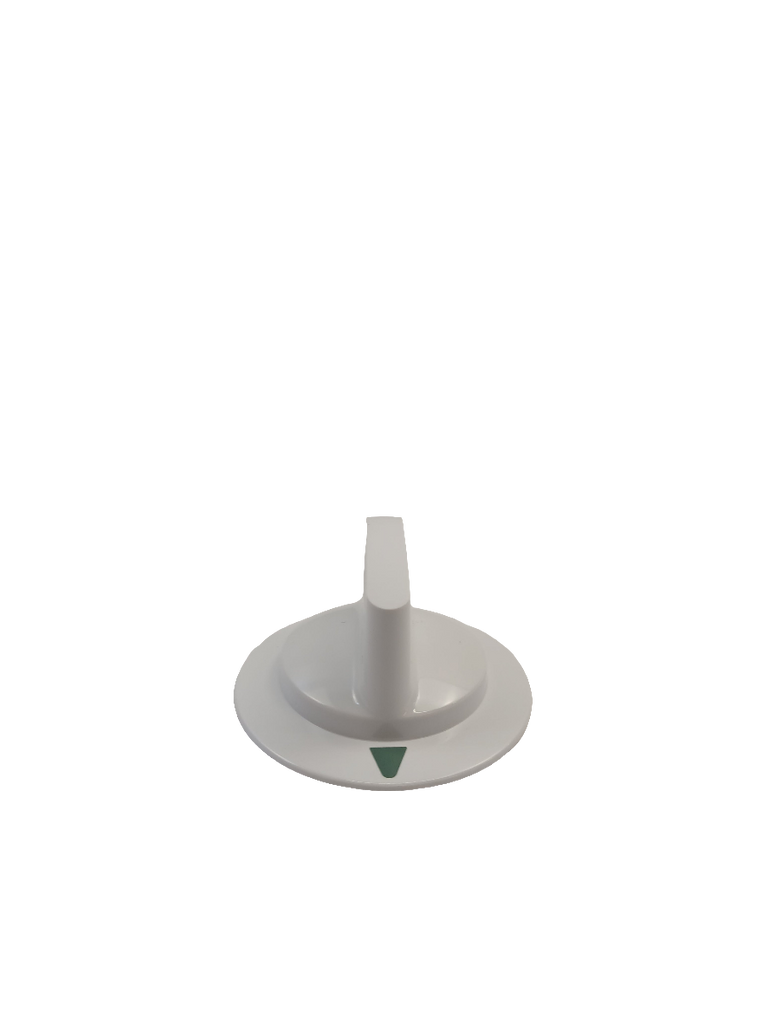

Genuine GE dryer timer/control knob assembly. White knob with gray indicator markings, used to select the dryer cycle or timer setting.

Is This the Right Part?

Common Symptoms

• Knob is cracked or broken.
• Knob spins without engaging the timer shaft.
• Dryer will not start because the timer shaft is not being turned.
• Timer selection cannot be set reliably.
• Timer does not advance after confirming that the dryer is operating in a timed cycle; this may indicate a timer or another control issue rather than the knob alone.

Check Before Replacing

• Disconnect power before inspecting or removing the knob.
• Visually inspect the knob for cracks, splitting, or a worn internal shaft interface.
• With the knob removed, check whether the timer shaft is intact and has the expected flat-sided/D-shaped engagement surface.
• Reinstall the knob and confirm that it seats firmly and turns the timer shaft without slipping.
• If the knob engages the shaft but the timer still does not operate, stop treating the knob as the sole suspected cause and refer to the appliance's model-specific service information.

Pro Tip

Part Details

Key Features

• Genuine GE dryer timer knob assembly.
• White knob with gray indicator markings.
• Used to select the desired dryer cycle or timer setting.

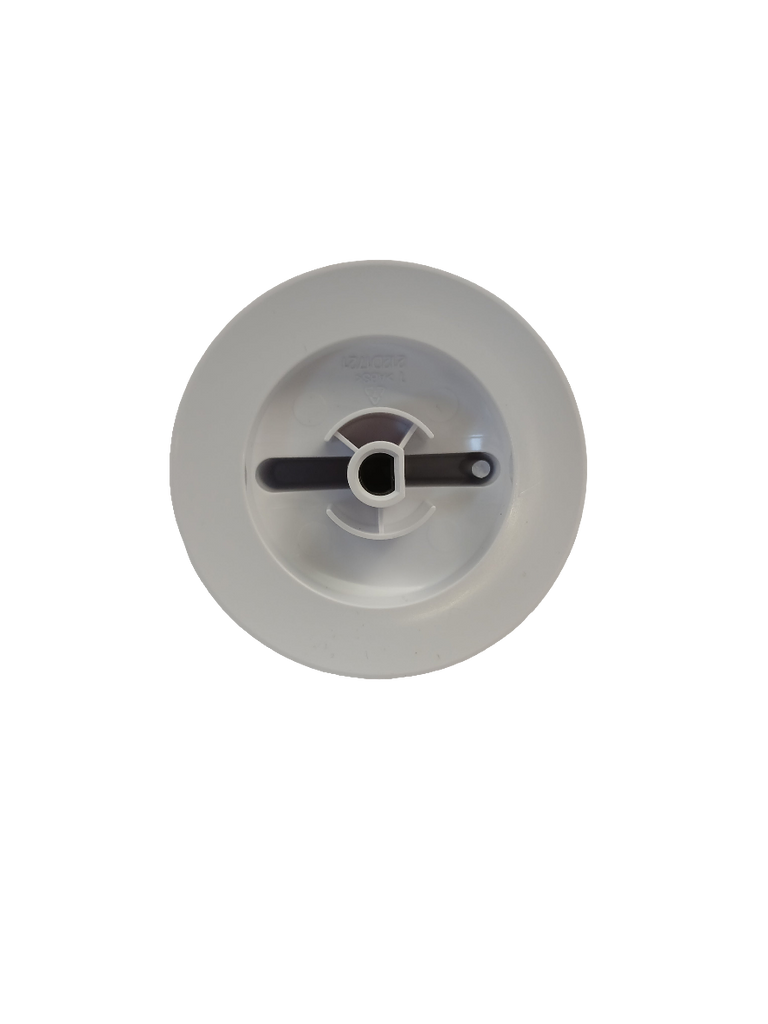

• Designed to attach to a D-shaped timer shaft.
• Part-specific replacement for the archived WG04L04237 identity.

Installation Notes

• Disconnect electrical power before servicing the control area.
• Remove the old knob by pulling it straight off the timer shaft; avoid forcing or twisting it excessively.
• Before installing, compare the replacement knob's internal interface with the timer shaft.
• Align the knob's internal flat with the shaft's flat and press the knob straight into place.
• After installation, restore power and verify that the knob engages the intended cycle positions without slipping.

Verified Compatible Models

HTDP120ED0WW, HTDP120ED1WW, HTDP120ED2WW, HTDP120ED3WW, HTDP120ED4WW, HTDP120ED5WW, HTDP120ED6WW, HTDP120GD0WW, HTDP120GD1WW, HTDP120GD2WW, HTDP120GD3WW, HTDP120GD4WW, HTDP120GD5WW, HTDP120GD6WW, HTDX100ED0WW

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
