WATER REMAINS IN THE WASHER TUB AFTER THE DRAIN PORTION OF THE CYCLE

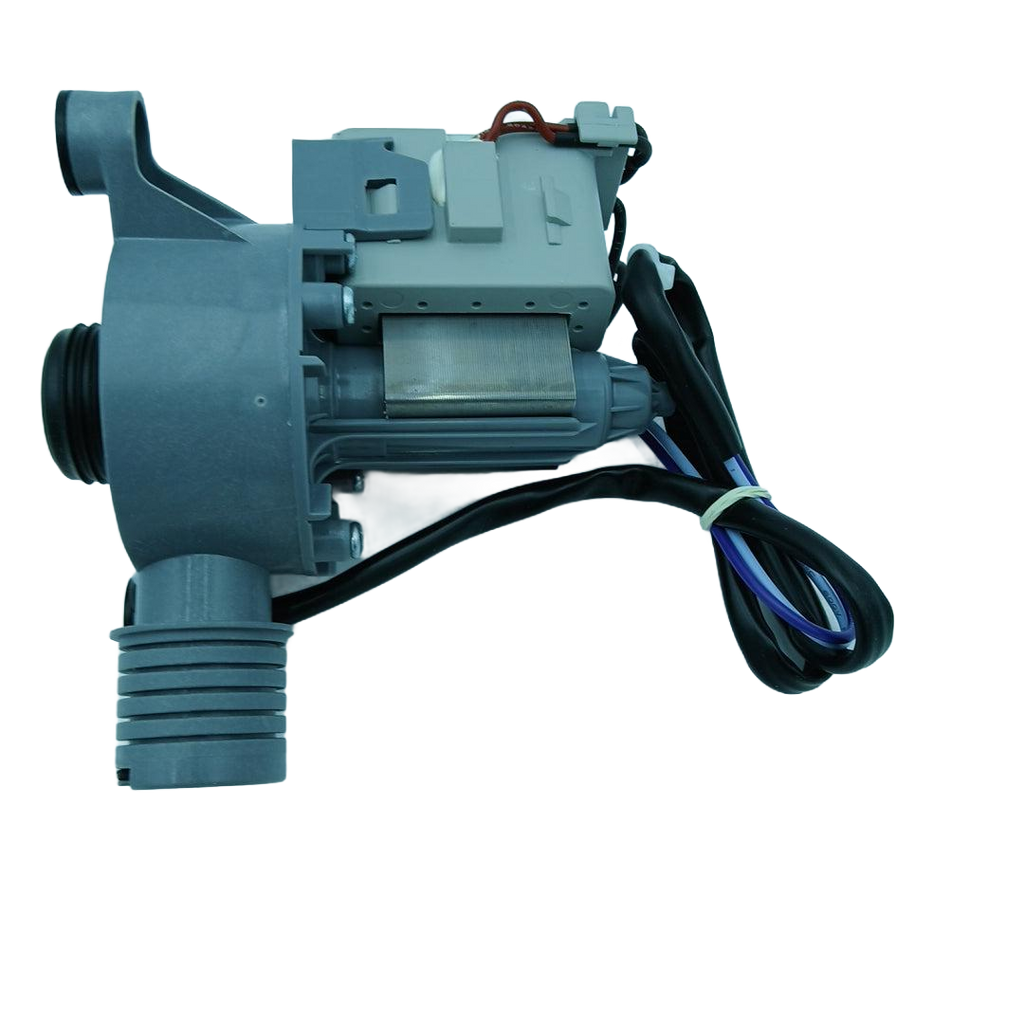

GE Appliances Washer Drain Pump WH11X34742, Replaces WH01X28078, Fixes Water remains in the washer tub after the drain portion of the cycle
Genuine GE drain pump used to remove water from compatible washing machines during drain and spin cycles.
Part WH11X34742Replaces WH01X28078GE Appliances
Genuine GE drain pump used to remove water from compatible washing machines during drain and spin cycles.
Is This the Right Part?
Part NumberWH11X34742
ReplacesWH01X28078
ManufacturerGE Appliances
Appliance TypeWasher
Part TypeDrain Pump
✅ Cross Reference Information
Current Part NumberWH11X34742
ReplacesWH01X28078
Common Symptoms
- Washer does not drain or drains slowly.
- Humming or unusual pump noise during draining.
- Washer may be unable to proceed to spin because water has not been removed.
- Drain-related error or fault indication may occur, depending on the washer model.
Check Before Replacing
- Disconnect power before inspecting the pump or wiring.
- Check the external drain hose for kinks, blockage, or improper positioning before replacing the pump.
- Inspect accessible hose connections and the pump area for blockage or foreign objects.
- Confirm that the washer receives the drain command and that the pump wiring connector is seated, without assuming the pump itself has failed.
- If electrical testing is required, follow the service documentation for the exact washer model or use a qualified technician.
Pro Tip
A no-drain symptom is not pump-specific: check the drain hose and accessible obstructions first, then verify the pump wiring and model-specific service information before ordering a replacement.
Part Details
Part NumberWH11X34742
Part TypeDrain Pump
ManufacturerGE Appliances
Appliance TypeWasher
Primary FunctionPumps wash water out of the washer during the drain and spin portions of a cycle.
Cross ReferencesWH01X28078
Key Features
- Genuine GE Appliances OEM drain pump.
- Designed for compatible GE and Haier washing machines.
- Manufacturer-listed one-year limited warranty.
- GE advises verifying the appliance model before purchase.
Installation Notes
- Disconnect electrical power and address any water remaining in the washer before beginning service.
- Use the exact washer model's service or installation documentation because access and mounting arrangements can vary.
- Reconnect all pump hoses and the electrical connector securely, and check for leaks after installation.
- Do not replace the pump solely from a no-drain symptom; verify hose, blockage, wiring, and model-specific service information first.
Verified Compatible Models
ATLMW41, CLAWI47W, CTW41N1AW, HLTW600AXW, MAD160S2801GPSFMUS13, MAD160S2801PS, MLV41N1AWW, MLV41N1AWWC, MLV45N1BWW, MLV45N1BWWC, MLV45N3BMG, MLV45N3BWW
Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
