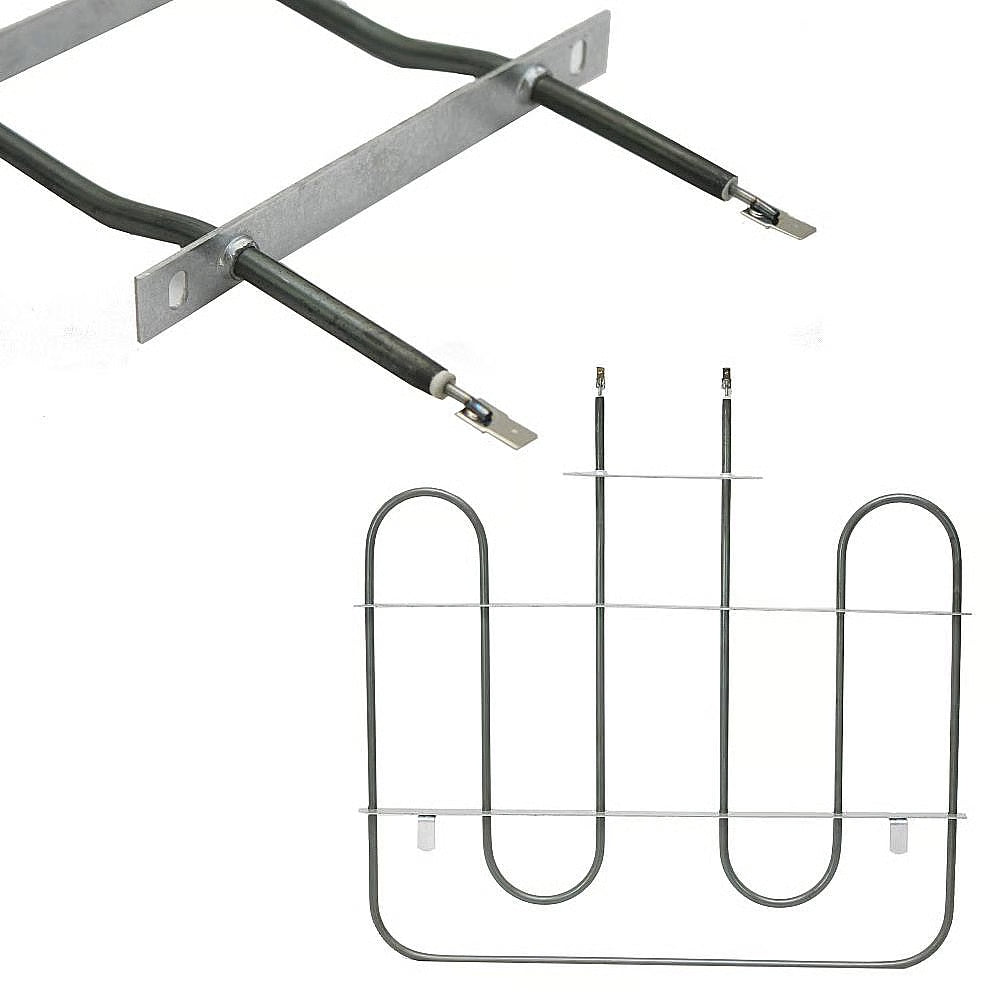

WPW10207400 Whirlpool Range Oven Broil Element – OEM Replacement
Restore peak broiling performance with the genuine WPW10207400 upper broil heating element. Designed to fit Whirlpool ranges and ovens exactly, this OEM replacement delivers the same power, reliability, and heat distribution as your original part. Because it’s a direct plug-in replacement, there’s no guesswork or modifications needed—just a straightforward fix that brings back top-down heat for browning, finishing, and searing without compromise.
Why this OEM broil element matters
The broil element is responsible for the intense top-down heat that browns the surface of dishes—think seared steaks, golden-tinished casseroles, and perfectly blistered tops. Located at the very top of the oven cavity, it heats to very high temperatures when you select the broil function. A failing broil element can create hot spots, crack or blister, or stop delivering top heat entirely. Replacing it with an OEM part ensures consistent performance, even heat, and reliable operation when you need it most.
What problems this part fixes
- Oven won’t broil or has no top heat
- Broil element appears burned, blistered, or physically damaged
- Oven trips the circuit breaker when broil is selected
- Food fails to brown or finish evenly on top
- Broil function works intermittently
- Oven heats from the bottom but not the top
Key features & specifications
- Part Number: WPW10207400
- Type: Upper broil heating element
- OEM: Genuine Whirlpool replacement — exact factory specifications
- Installation: Direct plug-in replacement — no modifications needed
- Compatibility: Compatible with Whirlpool, KitchenAid, Maytag, Amana, and Jenn-Air ranges
Compatibility & model coverage
This OEM broil element is designed for select Whirlpool ranges and ovens and is also compatible with related brands in the family, ensuring a trusted fit across multiple appliances. If you’re unsure about model compatibility, this part’s direct-fit design and common range coverage keep replacement straightforward and accurate, helping you avoid guesswork and additional costs.
Installation & safety guide
Estimated install time: 15–30 minutes
Tools you’ll need: Phillips screwdriver or ¼" nut driver
- Disconnect power at the circuit breaker to ensure safe service.
- Open the oven door and remove all racks to access the broil element at the top of the oven cavity.
- Locate and remove the mounting screws that secure the old element.
- Slide the old element out and disconnect the wire terminals.
- Connect the new WPW10207400 element to the existing terminals, then push the element into place and secure the mounting screws.
- Reinstall racks, restore power at the breaker, and test the broil function to confirm heat at the top of the oven.
Safety note: Always ensure power is fully disconnected before servicing any oven element to prevent shock or injury.
Why choose this replacement from XPart Supply Ltd.
As a Canadian specialist in home appliance parts, XPart Supply Ltd. offers genuine OEM components with a focus on reliability and long-term performance. This WPW10207400 broil element is backed by a commitment to fit and function—you’re purchasing an authentic Whirlpool replacement designed to restore original broiling capability. Our Canada-wide shipping supports quick delivery, and the company has served customers with parts and repairs since 1996, making us a trusted partner for home cooks and repair pros alike.
Buying options
- OEM (New): Genuine Whirlpool broil element — guaranteed fit and performance
Use cases and scenarios
Whether you’re finishing a weeknight steak with a quick sear, browning cheesy casseroles, or giving a dessert a glossy top finish, this upper broil element delivers consistent top-heat power when you need it. It’s an ideal solution for households that rely on precise browning and quick heat shaping, and it’s especially valuable after a previous element has burned out or begun to fail.
Trust and category context
Part of the OEM range parts ecosystem, this model-specific repair part sits within the Home & Garden category, under Kitchen & Dining, specifically in Cooktop, Oven & Range Accessories. It’s built to match factory specs, deliver dependable top heat, and extend the life of your Whirlpool family appliance. For those maintaining multiple brand units, this replacement covers Whirlpool and related brands in the same appliance lineage, reducing the need for multiple part inventories.
WPW10207400 Whirlpool Range Oven Broil Element – Fix Your Oven That Won't Broil, Has No Top Heat, or Has a Burned-Out Broil Element
Genuine OEM Replacement · Fast Canada-Wide Shipping · Canadian Business Since 1996
The WPW10207400 Whirlpool Range Oven Broil Element is the genuine OEM upper heating element for Whirlpool ranges and ovens. The broil element provides the intense top-down heat needed for broiling, browning, and finishing dishes. When it burns out or fails, your oven will lose broiling function entirely. This is a direct OEM replacement — no modifications required.
✓ Model-Specific Repair Pages
Find your exact model for confirmed-fit part guidance:
The broil element is mounted at the top of the oven cavity and heats to high temperatures when the broil function is activated. Over time, the element can develop hot spots, crack, or burn through — often visible as a blistered or broken section on the element coil. A failed broil element will cause the oven to not heat from the top, fail to broil, or trip the circuit breaker. This genuine OEM part restores full broiling performance.
✓ Common Symptoms Fixed
- Oven won't broil or has no top heat
- Broil element visibly burned, blistered, or broken
- Oven trips circuit breaker when broil is selected
- Food not browning or finishing on top
- Broil function works intermittently
- Oven heats from bottom but not top
✓ Key Features & Specifications
- Part Number: WPW10207400
- Type: Upper broil heating element
- OEM: Genuine Whirlpool replacement — exact factory specifications
- Direct plug-in replacement — no modifications needed
- Compatible with Whirlpool, KitchenAid, Maytag, Amana, and Jenn-Air ranges
✓ Buying Options
- OEM (New): Genuine Whirlpool broil element — guaranteed fit and performance
✓ Installation Tips
- Difficulty: Easy — beginner DIY
- Estimated Time: 15–30 minutes
- Tools Required: Phillips screwdriver or ¼" nut driver
- Steps: Disconnect power → open oven door → remove oven racks → unscrew element mounting screws → pull element forward → disconnect wire terminals → connect new element → push back and secure → restore power and test broil function
- Safety Note: Always disconnect power at the breaker before servicing any oven element
✓ Compatible Models
Compatible with select Whirlpool, KitchenAid, Maytag, Amana, and Jenn-Air range models. See full model list in tags or contact us to confirm compatibility for your specific model number.
✓ Replacement Part Numbers
- WPW10207400 (this part)
- W10207400
✓ Frequently Asked Questions
How do I know if my broil element is burned out?
Visually inspect the element — a burned-out element often shows a visible crack, blister, or hole in the coil. You can also test it with a multimeter set to continuity. No continuity means the element has failed. Contact us if you need help diagnosing your oven.
Is WPW10207400 the same as W10207400?
Yes — WPW10207400 is the updated OEM part number that supersedes W10207400. Both refer to the same broil element.
Will this fit my KitchenAid or Maytag range?
This element fits select KitchenAid, Maytag, Amana, and Jenn-Air ranges built on the Whirlpool platform. Contact us with your model number to confirm fit before ordering.
Is this difficult to install?
No — this is one of the easiest oven repairs. Most homeowners can complete it in 15–30 minutes with a basic screwdriver. No special tools or wiring knowledge required.
Do you ship to all of Canada?
Yes — XPart Supply ships fast Canada-wide from our Canadian warehouse. Orders placed before our daily cutoff typically ship same or next business day.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
