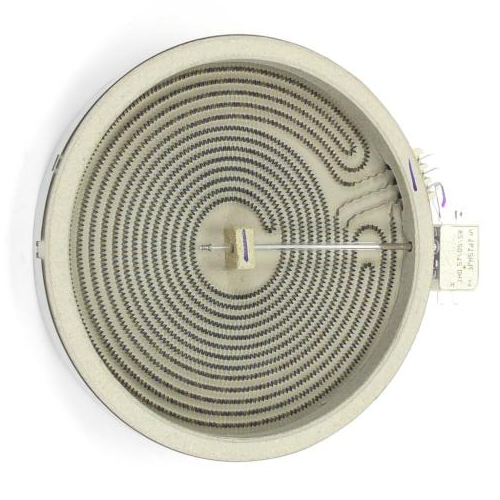

Whirlpool Range Radiant surface element, 3000 watts; 300 mm (approximately 12-inch) triple element W11563195, Replaces W11318371, WPW10187839, W10187839

Genuine Whirlpool OEM radiant surface heating element used in electric ranges and cooktops. The element supplies heat to a cooktop cooking area and is rated at 3000 watts.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• The affected cooking zone remains cold while other zones operate.
• The zone heats unevenly or does not reach normal cooking temperature.
• One or more rings of the triple element fail to heat.
• The zone may remain energized or heat abnormally if the associated control or limiter is also faulty; the element itself should not be presumed to be the cause.

Check Before Replacing

• Turn off power to the range or cooktop at the disconnect or circuit breaker before inspection.
• Compare the affected zone with another zone using the appliance’s normal controls; do not assume an element fault if multiple zones are affected.
• With power disconnected, visually inspect the element area and accessible wiring for obvious breaks, scorching, loose connections, or heat damage.
• If qualified to perform appliance electrical testing, check element continuity only with the appliance fully de-energized and isolated; otherwise have a qualified technician test the element and associated control components.
• Confirm that the replacement element’s physical layout and connector arrangement match the appliance parts diagram before ordering or installing.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM radiant surface element.
• 3000-watt heating capacity.
• 300 mm, approximately 12-inch, triple-zone element.
• Used in selected electric ranges and built-in cooktops.
• Archived manufacturer replacement numbers include W11318371, WPW10187839, and W10187839.

Installation Notes

• Disconnect electrical power before opening or servicing the range or cooktop.
• Verify the appliance model and the element’s physical and electrical match before installation.
• Access and connector-removal details vary by appliance model; follow the model-specific service or installation instructions.
• Keep track of connector locations and retaining hardware during removal, and ensure all connections and supports are restored before re-energizing the appliance.
• Do not work on or test the element while power is applied; seek qualified service if access requires handling live 240-volt wiring or if wiring is heat-damaged.

Verified Compatible Models

66495123611, 66495123613, 66495223710, 66495223711, 66495223713, G9CE3074XB00, G9CE3074XS00, G9CE3675XB00, G9CE3675XB01, G9CE3675XS00, G9CE3675XS01, JEC3430BB00, JEC3430BS00, JEC3536BB00, JEC3536BS00

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
