Whirlpool Top-load washer drive belt WP22003483, Replaces 22003483, 22002709, 62608400, 62618130

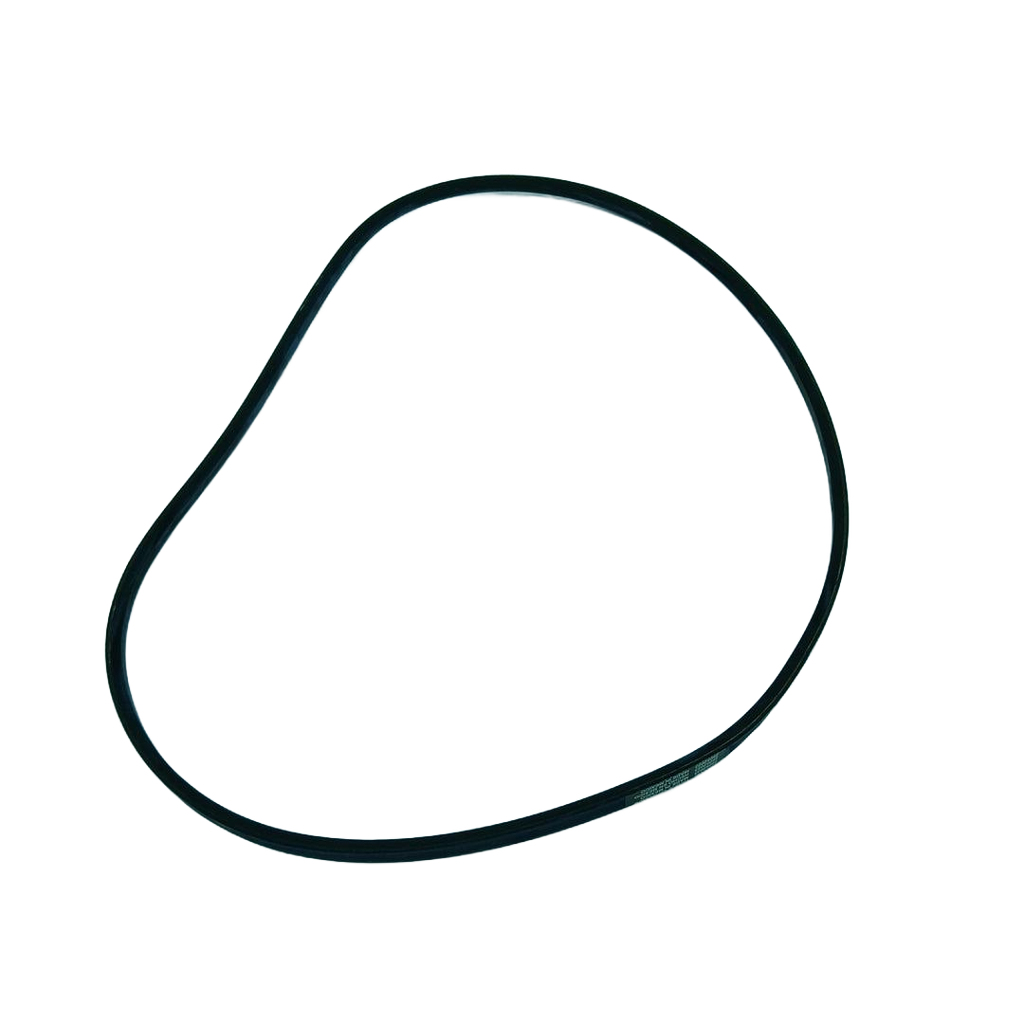

Genuine Whirlpool 52-inch rubber drive belt used to transfer motor power for washer agitation and spin cycles. The part is manufactured by Whirlpool for Whirlpool/Maytag-family top-load washers.

Is This the Right Part?

Common Symptoms

• Burning-rubber smell
• Washer will not agitate
• Washer will not spin or leaves clothes unusually wet
• Motor runs while the basket moves slowly or not at all
• Visible belt cracking, glazing, fraying, looseness, or breakage

Check Before Replacing

• Disconnect electrical power before inspection.
• After power is disconnected, inspect the belt for cracking, glazing, fraying, looseness, residue, or breakage.
• If safely accessible for the exact washer model, check that the belt is seated on the motor and drive pulleys.
• Observe whether the motor operates while the basket fails to agitate or spin; this symptom can also involve pulleys, transmission, pump, motor, or controls.
• Do not operate the washer with panels removed unless the model-specific service documentation permits it and appropriate electrical-safety procedures are followed.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM washer drive belt

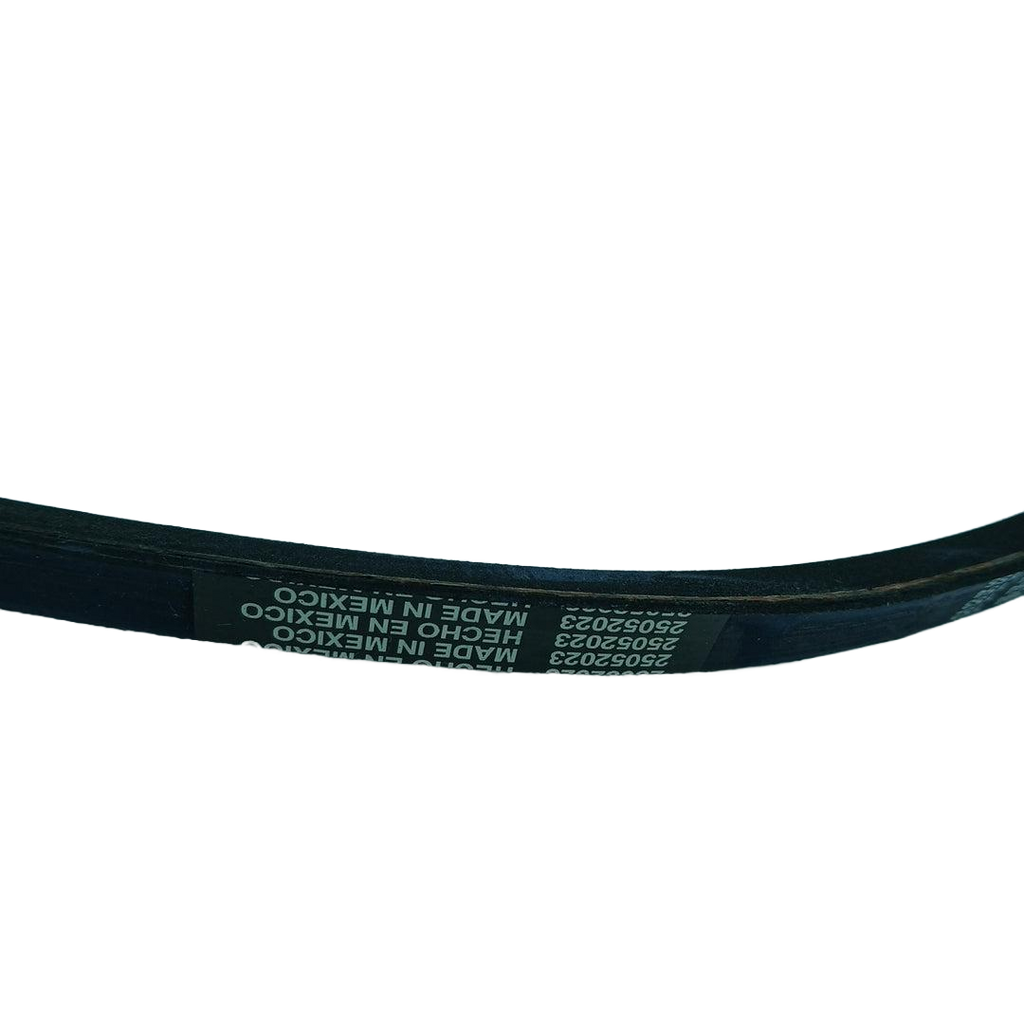

• Black rubber construction
• Approximately 52 inches long according to archived and retailer specifications
• Connects the motor to the washer drive system for wash and spin operation
• Documented for select Whirlpool/Maytag-family top-load washers

Installation Notes

• Disconnect power before servicing and shut off the washer water supplies if the model-specific procedure requires access that could disturb the hoses.
• Verify WP22003483 against the washer model and the removed belt before installation.
• Follow the model-specific service manual for panel access and belt routing; access and routing vary by washer design.
• Route the belt over the correct motor and drive pulleys and confirm that it is fully seated before reassembly.
• After reassembly, run an appropriate test cycle and check for abnormal noise, slipping, burning smell, or leakage.

Verified Compatible Models

MAV4057AWQ, MAV4057AWW, MAV4500AWW, MAV5000AWQ, MAV5000AWW, MAV5057AWQ, MAV5057AWW, MAV5960AWW, MAV6000AWQ, MAV6000AWW, MAV6057AWQ, MAV6057AWW, MAV6200AWQ, MAV6200AWW, MAV6250AWQ

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
