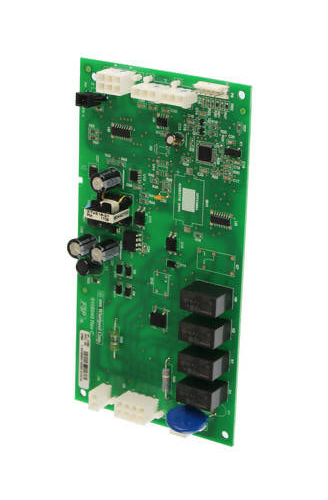

Whirlpool Refrigerator Electronic Control Board (Control, Electric / Electric Control Relay Board) WP2318054, Replaces 2318054

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Refrigerator remains warm or has erratic cooling
• Defrost cycle does not operate properly, potentially causing frost buildup
• Compressor or cooling loads may not start or may cycle abnormally
• Repeated clicking or a blank display may occur when the control board fails

Check Before Replacing

• Confirm the refrigerator is receiving power and that the circuit breaker or fuse has not tripped.
• With power disconnected, inspect the control-board wiring connectors for looseness, visible damage, or corrosion; do not remove or modify wiring while energized.
• Use the refrigerator’s model-specific service-diagnostic procedure to check cooling and defrost functions when that procedure is available.
• Before attributing the symptom to the control board, verify that obvious external causes such as blocked airflow, an open door, or incorrect temperature settings are not present.
• Do not perform energized voltage measurements unless qualified and equipped to do so; Whirlpool technical documentation reserves such measurements for authorized service technicians.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power before accessing or replacing the control board.
• Protect or relocate perishable food while the refrigerator is out of service.
• Handle the electronic board by its edges and avoid contact with exposed circuitry.
• Transfer or reconnect wiring only as identified for the exact refrigerator model; do not force connectors.
• Follow the model-specific service information and any instructions supplied with the replacement board.
• Restore power and verify normal cooling and defrost operation after installation.

Verified Compatible Models

JS42CXDBDB00, JS42CXDUDB00, JS42CXDUDB02, JS42PPDUDB01, JS42PPDUDB02, JS42PPDUDB14, JS42PPDUDB15, JS42PPDUDB16, JS42PPDUDB20, JS42PPDUDE00, JS42SEDUDB00, JS42SEDUDB01, JS42SEDUDW01, JS42SEDUDW12, JS42SEDUDW13, JS42SEDUDW14, JS42SEDUDW15, JS42SEDUDW20, JS42SSDUDE00, JS42SSDUDE01, JS48CXDBDB01, JS48CXDBDB13, JS48CXDUDB00, JS48PPDUDB01, JS48PPDUDB13, JS48PPDUDB14, JS48PPDUDB15, JS48PPDUDB16, JS48PPDUDB20, JS48PPDUDE00, JS48PPDUDE01, JS48SEDUDB00, JS48SEDUDB01, JS48SEDUDW00, JS48SEDUDW12, JS48SEDUDW14, JS48SEDUDW20, JS48SEDUEA01, JS48SSDUDE00, JS48SSDUDE01, KBSD502ESS00, KBSD508ESS00, KBSD602ESS00, KBSD602ESS01, KBSD606ESS01, KBSD608EBS00, KBSD608ESS00, KBSD612ESS01, KBSD618ESS00, KBSD618ESS01

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
