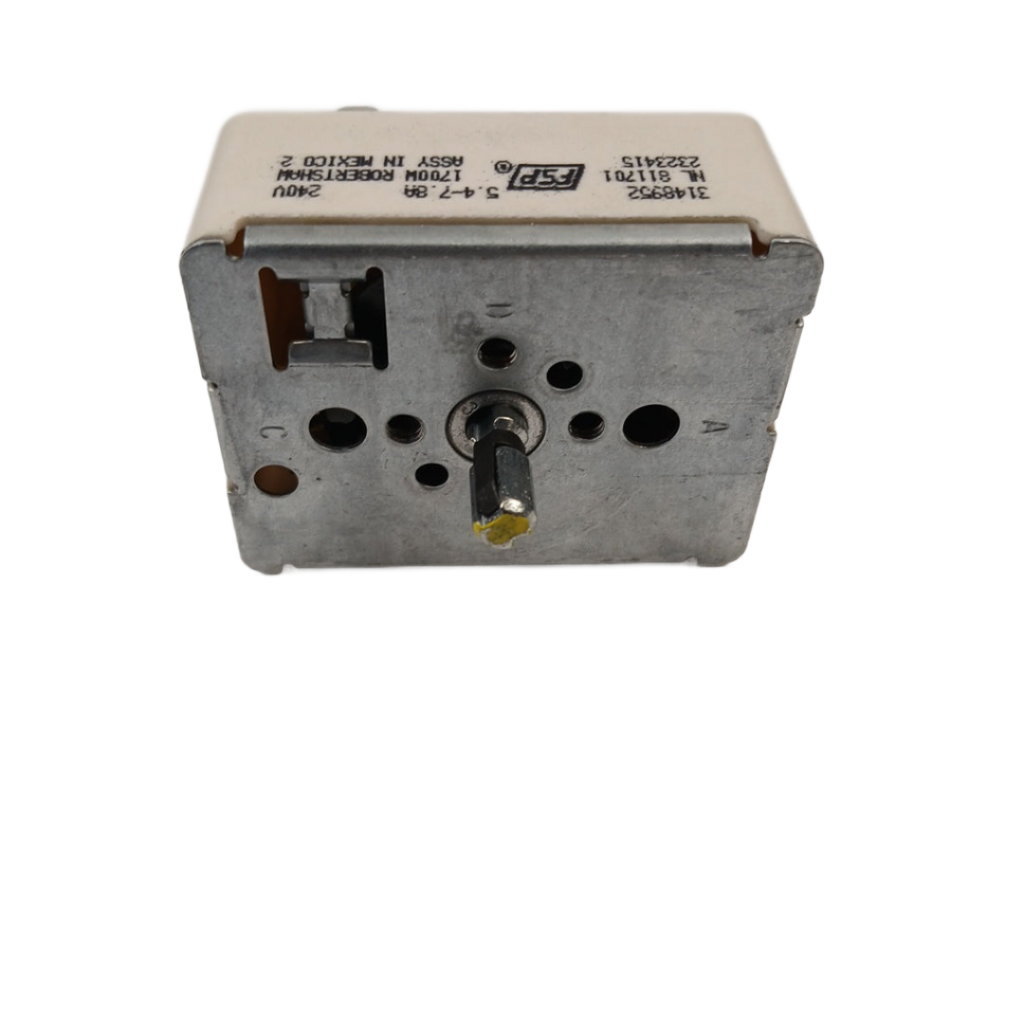

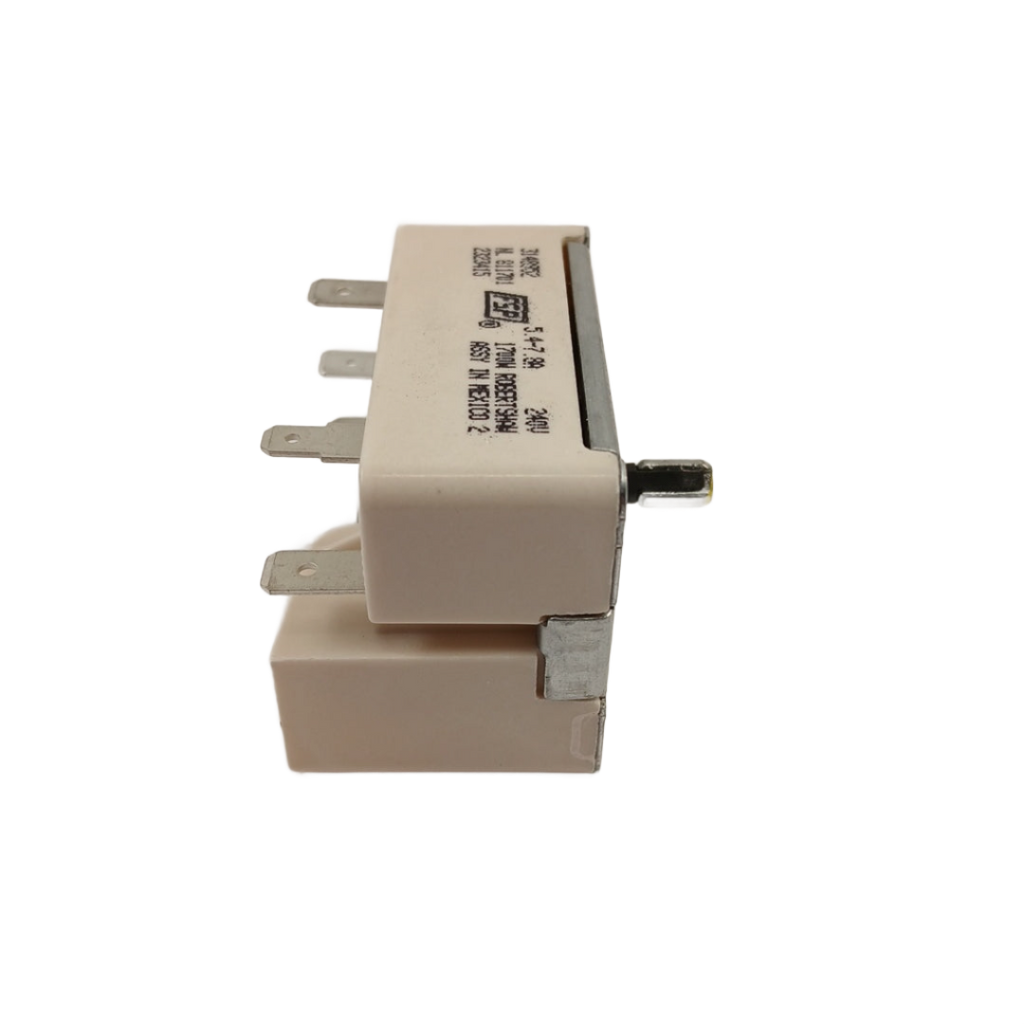

Whirlpool Range surface element control switch, 6-inch infinite switch WP3148952, Replaces 3148952

Genuine Whirlpool surface-element control switch used to regulate a range's 6-inch surface element. Documented symptoms include an element that will not heat or has inconsistent temperature control.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• The 6-inch element remains cold when its control is turned on.
• The element heats inconsistently or does not maintain the selected heat level.
• The element may remain energized or heat excessively if the switch contacts fail closed.

Check Before Replacing

• Confirm the issue follows the 6-inch element’s control switch rather than another burner control.
• With the range disconnected from power, inspect the switch terminals and connected wiring for loose connections, discoloration, melting, or heat damage.
• Check the surface element and wiring for continuity or damage only according to the appliance’s model-specific service documentation; do not perform live-voltage testing unless qualified to work on range circuits.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM surface-element control switch.
• Infinite-switch design for cycling power to regulate cooking temperature.
• Specified for a 6-inch surface element.
• Replaces Whirlpool number 3148952.
• Manufacturer part number WP3148952.

Installation Notes

• Disconnect power to the range by unplugging it or switching off the range circuit breaker before accessing the control switch.
• Allow the range and nearby components to cool before service.
• Use the appliance’s model-specific service instructions to identify terminal locations and reconnect wiring correctly.
• After installation, restore power and verify operation of the associated 6-inch element without touching exposed energized parts.

Verified Compatible Models

4RF315PXEQ0, 4RF315PXGQ0, 4RF315PXKQ0, 4RF315PXMQ0, CES365HQ0, CES365HQ1, CES365HZ0, CES365HZ1, CES366HQ0, CES366HQ1, CES366HZ0, CES366HZ1, FEP314BL0, FEP314BW0, FES364BL0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
