GAS DRYER FAILS TO HEAT OR IGNITE RELIABLY

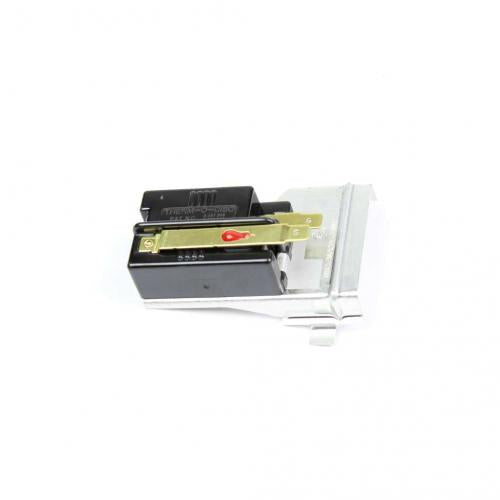

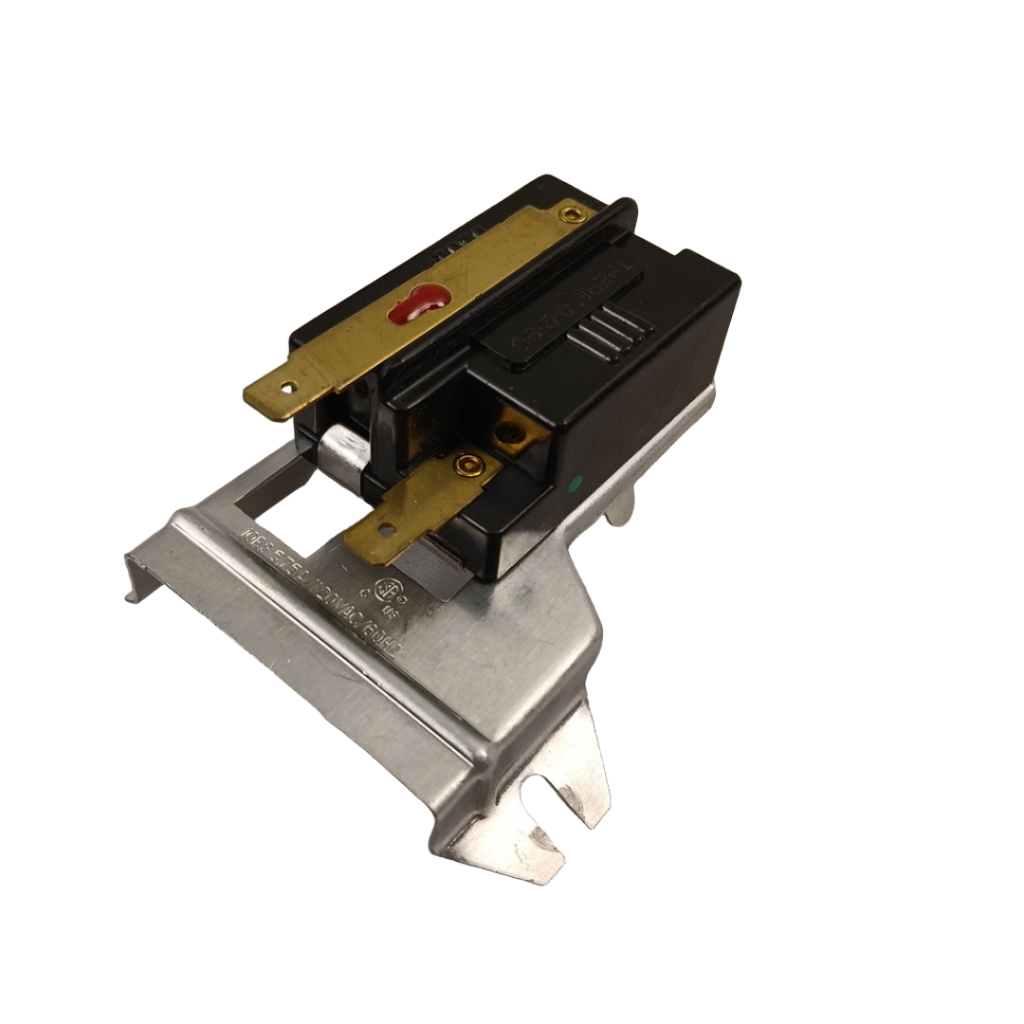

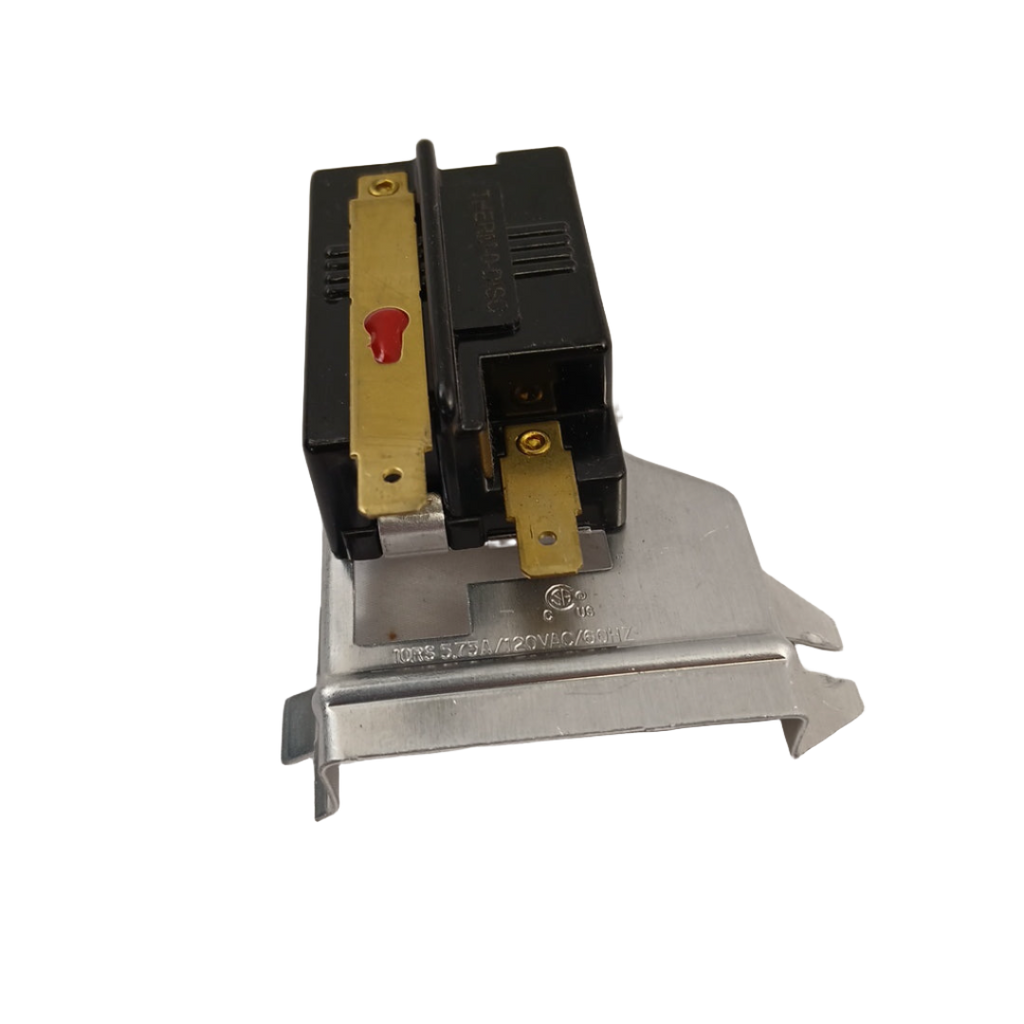

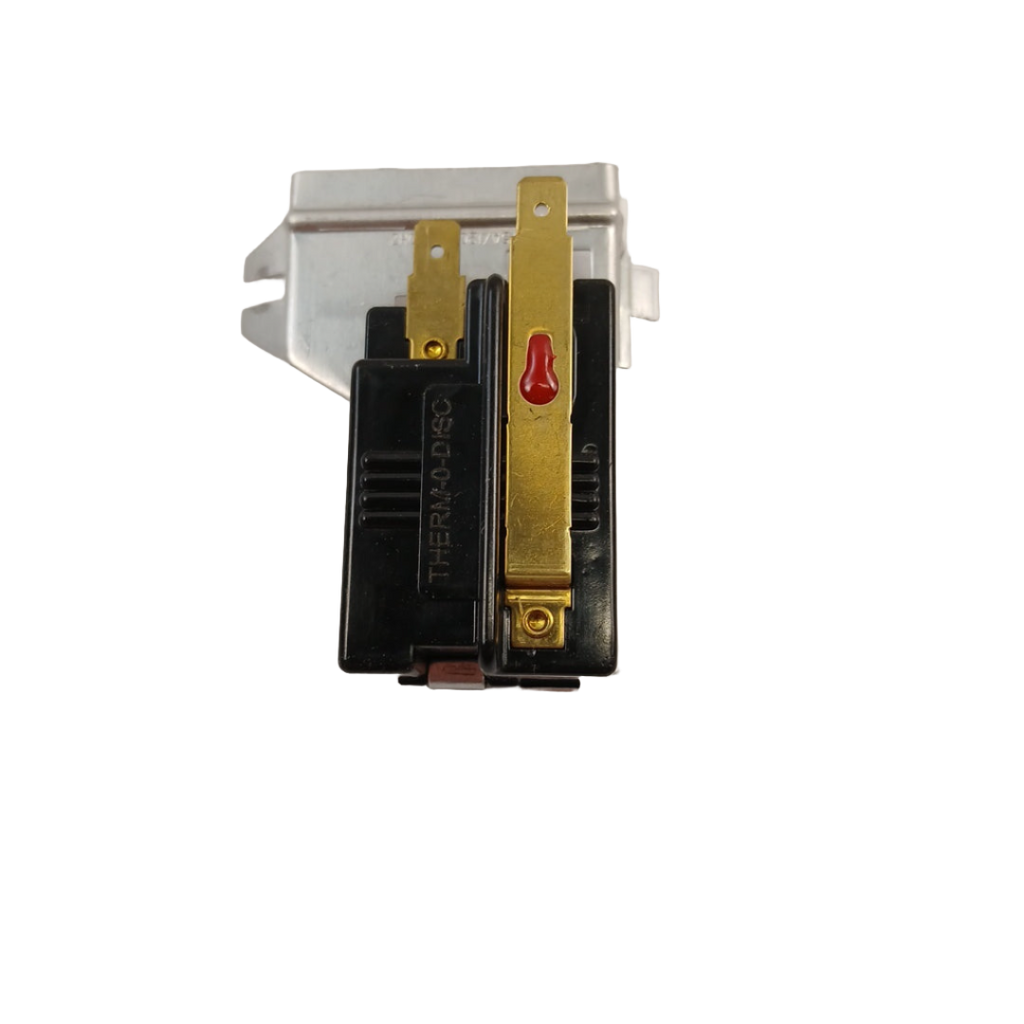

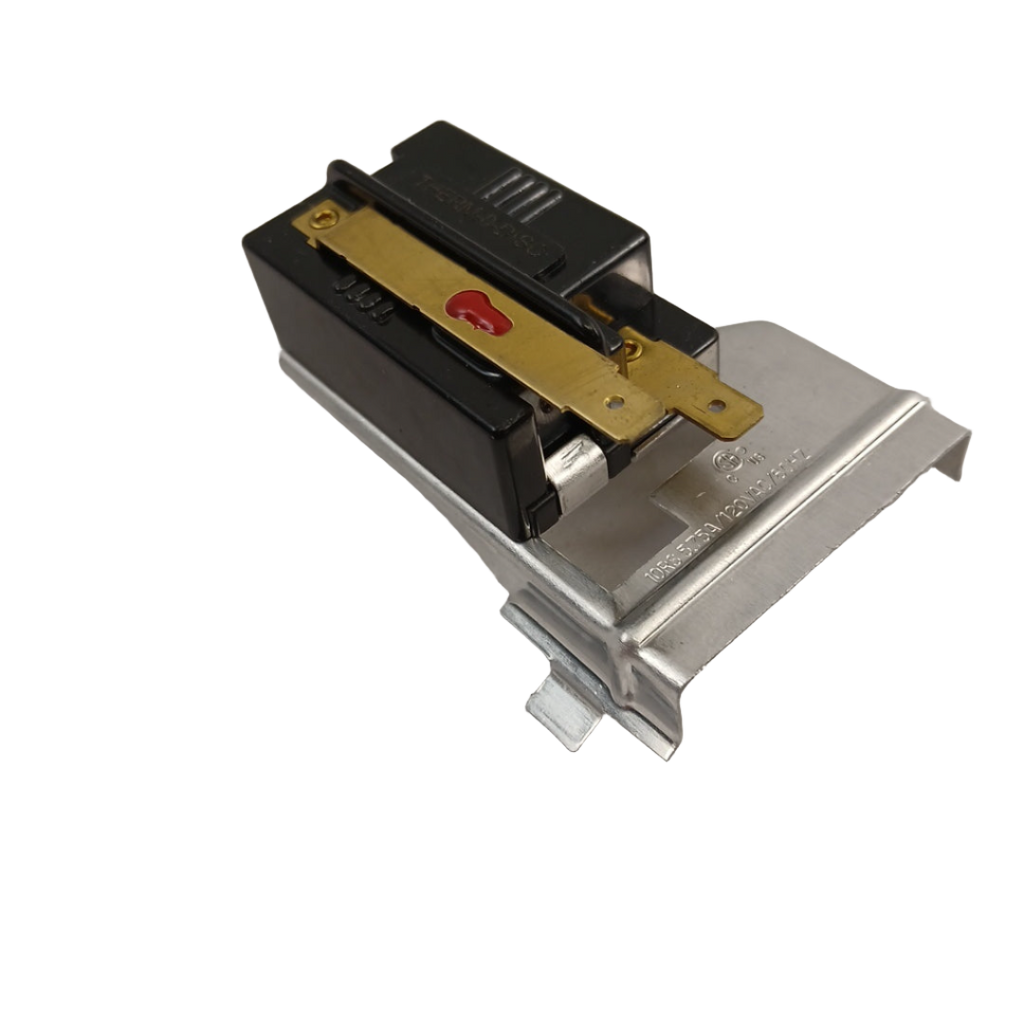

Whirlpool Dryer Radiant flame sensor WP338906, Fixes Gas dryer fails to heat or ignite reliably
OEM gas-dryer radiant flame sensor located at the burner assembly across from the gas igniter. It monitors whether the igniter is hot enough to ignite the gas burner.
Part WP338906Replaces 338906, 303377, Y303377, Y56231, 56231, 35001096, DC32-00008A, 14205529, 14210083, 14218928, K35-194, DE353, R0611503Whirlpool
Guaranteed to Fit — or your money back.
Confirm your full appliance model number before ordering.
Confirm your full appliance model number before ordering.
Is This the Right Part?
Part NumberWP338906
Replaces338906, 303377, Y303377, Y56231, 56231, 35001096, DC32-00008A, 14205529, 14210083, 14218928, K35-194, DE353, R0611503
ManufacturerWhirlpool
Appliance TypeDryer
Part TypeRadiant flame sensor
✅ Cross Reference Information
Current Part NumberWP338906
Replaces338906, 303377, Y303377, Y56231, 56231, 35001096, DC32-00008A, 14205529, 14210083, 14218928, K35-194, DE353, R0611503
Common Symptoms
- Igniter glows but the gas burner does not ignite
- Dryer heats initially, then stops heating during the cycle
- Intermittent or no heat while the drum continues to turn
- Dryer takes longer than usual to dry when the sensor does not respond correctly
Check Before Replacing
- Disconnect electrical power and shut off the gas supply before accessing the burner assembly.
- Visually confirm that the radiant sensor is positioned across from the igniter and that its wiring connectors are seated.
- With power disconnected and the sensor wires removed, check the sensor for continuity at room temperature using a multimeter; lack of continuity indicates the sensor should be investigated, but does not by itself prove it is the only fault.
- Observe the ignition sequence only if the appliance manufacturer's service instructions permit it; distinguish an igniter that does not glow from an igniter that glows without burner ignition before attributing the issue to the sensor.
Pro Tip
A flame-sensor continuity check at room temperature is a useful screening test, but also inspect the igniter, thermal fuse, wiring, gas supply, and burner components because similar no-heat symptoms can have other causes.
Part Details
Part NumberWP338906
Part TypeRadiant flame sensor
ManufacturerWhirlpool
Appliance TypeDryer
Primary FunctionMonitors heat from the gas-dryer igniter/flame at the burner assembly and controls whether the burner ignition sequence can continue.
Installation Notes
- Disconnect electrical power and shut off the gas supply before servicing the dryer.
- Access the sensor at the burner assembly according to the appliance's service instructions.
- Transfer the wire connectors to the corresponding terminals and ensure they are fully seated.
- Secure the replacement sensor in the original mounting position opposite the igniter; do not alter its alignment.
- Reassemble all removed panels and verify proper operation only after the appliance is safely restored.
Verified Compatible Models
1LG5701XKW0, 1LG5921XKW0, 1LG9801XKW1, 2LG5701XKW0, 3CG2901XSN0, 3CG2901XSN1, 3CG2901XSN3, 3CG2901XSW0, 3CG2901XSW1, 3CG2901XSW3, 3CGP2901DN0, 3CGP2901DW0, 11077975800, 11087082100, 11087571600
Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
