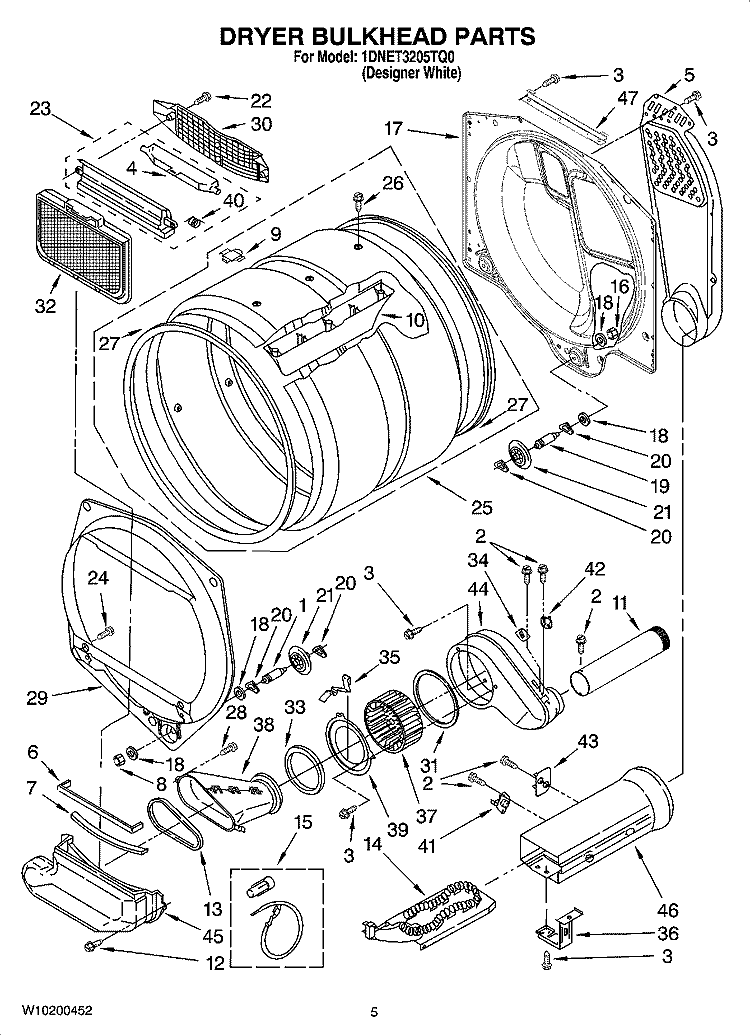

Item #41 in in diagram.

Part number WP3390291 replaces 3390291, 696397, XPT198, AP6008306

11060012000, 11060052990, 11060052991, 11060056990, 11060056991, 1106007299, 11060072990, 11060072991, 11060092990, 11060092991, 11060094990, 11060094991, 11060096990, 11060096991, 11060097990, 11060172000, 11060232000, 1106090199, 11060901990, 1106090299, 11060902990, 11060904990, 1106090799, 11060907990, 11060912990, 1106092299, 11060922990, 11060924990, 1106092799, 11060927990, 1106093299, 11060932990, 1106093699, 11060936990, 1106094299, 11060942990, 1106095299, 11060952990, 11060954990, 1106095699, 11060956990, 1106095799, 11060957990, 11060972990, 1106098299, 11060982990, 11060992990, 11060994990, 11060996990, 11060997990, 11062032100, 11062036100, 11062042100, 11062052100, 11062054100, 11062056100, 11062062100, 11062062101, 11062062102, 11062062103, 11062064100, 11062064101, 11062064102, 11062064103, 11062066100, 11062066101, 11062066102, 11062066103, 11062082100, 11062082101, 11062082102, 11062084100, 11062084101, 11062084102, 11062086100, 11062086101, 11062086102, 11062902100, 11062904100, 11062912100, 11062922100, 11062924100, 11062932100, 11062936100, 11062942100, 11062952100, 11062954100, 11062956100, 11062972100, 11062972101, 11062972102, 11062974100, 11062974101, 11062974102, 11062982100, 11062982101, 11062982102, 11062992100, 11062992101, 11062992102, 11062994100, 11062994101, 11062994102, 11062996100, 11062996101, 11062996102, 11063012100, 11063012101, 11063012102, 11063014100, 11063014101, 11063014102, 11063022100, 11063022101, 11063022102, 11063024100, 11063024101, 11063024102, 11063032100, 11063032101, 11063032102, 11063034100, 11063034101, 11063034102, 11063036100, 11063036101, 11063036102, 11063042100, 11063042101, 11063042102, 11063046100, 11063046101, 11063046102, 11063052100, 11063052101, 11063052102, 11063062100, 11063062101, 11063062102, 11063064100, 11063064101, 11063064102, 11063066100, 11063066101, 11063066102, 11063912100, 11063932100, 11063932101, 11063932102, 11063942100, 11063942101, 11063942102, 11063952100, 11063952101, 11063952102, 11063954100, 11063954101, 11063954102, 11063956100, 11063956101, 11063956102, 11064082200, 11064082201, 11064082202, 11064084200, 11064084201, 11064084202, 11064086200, 11064086201, 11064086202, 11064872400, 11064872401, 11064882400, 11064882401, 11064892400, 11064892401, 11064894400, 11064894401, 11064942300, 11064944300, 11064946300, 11064952300, 11064954300, 11064956300, 11064962300, 11064964300, 11064966300, 11064972300, 11064972301, 11064976300, 11064976301, 11064982300, 11064982301, 11064992300, 11064992301, 11064994300, 11064994301, 11064996300, 11064996301, 11065062500, 11065064500, 11065066500, 11065822400, 11065922400, 11065922401, 11065924400, 11065924401, 11065926400, 11065926401, 11065942400, 11065942401, 11065944400, 11065944401, 11065946401, 11065956400, 11065962400, 11065962401, 11065964400, 11065964401, 11065966400, 11065966401, 11066051690, 11066058690, 11066071690, 11066101690, 11066512690, 11066512691, 11066514690, 11066514691, 11066611690, 11066611691, 11066612690, 11066612691, 11066702690, 11066702691, 11066712690, 11066712691, 11066722690, 11066722691, 11066801690, 11066801691, 11066808690, 11066808691, 11066812690, 11066812691, 11066814690, 11066814691, 11066822690, 11066822691, 11066824690, 11066824691, 11066852690, 11066852691, 11066854690, 11066854691, 11066901690, 11066901691, 11066901692, 11066902690, 11066902691, 11066902692, 11066904690, 11066904691, 11066904692, 11066912690, 11066912691, 11066912692, 11066914690, 11066914691, 11066914692, 11066922500, 11066922501, 11066924500, 11066924501, 11066926500, 11066926501, 11066932690, 11066932691, 11066934690, 11066934691, 11066942500, 11066942501, 11066944500, 11066944501, 11066952690, 11066952691, 11066954690, 11066954691, 11066955690, 11066955691, 11066962500, 11066962501, 11066964500, 11066964501, 11066966500, 11066966501, 11066972500, 11066972501, 11066982500, 11066982501, 11066992500, 11066992501, 11066994500, 11066994501, 11066996500, 11066996501, 11067732790, 11067741600, 11067751600, 11067761600, 11067832790, 11067834790, 11067841600, 11067851600, 11067861600, 11067862600, 11067864600, 11067902790, 11067902791, 11067904790, 11067904791, 11068722700, 11068732700, 11068822700, 11068832700, 11068837700, 11068842700, 11068847700, 11068932790, 11068932791, 11068932792, 11068934790, 11068934791, 11068934792, 11068942890, 11068942891, 11068942892, 11068944890, 11068944891, 11068944892, 11068972890, 11068972891, 11068972892, 11068974890, 11068974891, 11068974892, 11069012990, 11069032990, 11069722800, 11069727800, 11069732800, 11069737800, 11069822800, 11069822801, 11069832800, 11069832801, 11069902890, 11069912990, 11080764000, 11084762300, 11084762301, 11084764300, 11084764301, 11086405110, 11086405120, 11086405130, 11086405140, 11086405150, 11086405160, 11086405810, 11086405820, 11086405830, 11086405840, 11086405850, 11086405860, 11086407110, 11086407120, 11086407130, 11086407140, 11086407150, 11086407160, 11086407810, 11086407820, 11086407830, 11086407840, 11086407850, 11086407860, 11086427110, 11086427310, 11086427610, 11086427710, 11086427810, 11086467110, 11086467310, 11086467610, 11086467710, 11086467810, 11086477110, 11086477310, 11086477610, 11086477710, 11086477810, 11086573130, 11086573330, 11086573630, 11086573730, 11086573830, 11086663100, 11086663300, 11086663600, 11086663700, 11086663800, 11086672100, 11086672300, 11086672600, 11086672700, 11086672800, 11086681110, 11086681120, 11086681310, 11086681320, 11086681610, 11086681620, 11086681710, 11086681720, 11086681810, 11086681820, 11086682110, 11086682120, 11086682310, 11086682320, 11086682610, 11086682620, 11086682710, 11086682720, 11086682810, 11086682820, 11086683110, 11086683120, 11086683310, 11086683320, 11086683610, 11086683620, 11086683710, 11086683720, 11086683810, 11086683820, 11086692110, 11086692120, 11086692310, 11086692320, 11086692610, 11086692620, 11086692710, 11086692720, 11086692810, 11086692820, 11086694110, 11086694120, 11086694310, 11086694320, 11086694510, 11086694520, 11086694710, 11086694720, 11086694810, 11086694820, 11086781100, 11086781300, 11086781600, 11086781700, 11086781800, 11086810100, 11086820100, 11086821100, 11086850100, 11086860100, 11086860300, 11086860700, 11086860800, 11086862100, 11086862300, 11086862600, 11086862700, 11086862800, 11086863100, 11086863300, 11086863600, 11086863700, 11086863800, 11086864100, 11086864300, 11086864600, 11086864700, 11086864800, 11086870100, 11086870300, 11086870600, 11086870700, 11086870800, 11086872100, 11086872300, 11086872600, 11086872700, 11086872800, 11086873100, 11086873300, 11086873600, 11086873700, 11086873800, 11086874100, 11086874300, 11086874600, 11086874700, 11086874800, 11086878100, 11086878300, 11086878600, 11086878700, 11086878800, 11086880100, 11086880300, 11086880600, 11086880700, 11086880800, 11086884100, 11086884300, 11086884600, 11086884700, 11086884800, 11086894100, 11086894300, 11086894500, 11086894700, 11086894800, 11086910100, 11086921100, 11086950100, 11086950800, 11086980100, 11086980300, 11086980600, 11086980700, 11086980800, 11086982100, 11086982110, 11086982300, 11086982310, 11086982700, 11086982710, 11086982800, 11086982810, 11086983100, 11086983110, 11086983130, 11086983300, 11086983310, 11086983700, 11086983710, 11086983800, 11086983810, 11086983830, 11086984100, 11086984110, 11086984120, 11086984300, 11086984310, 11086984700, 11086984710, 11086984800, 11086984810, 11086984820, 11086992100, 11086992300, 11086992700, 11086992800, 11086993100, 11086993110, 11086993300, 11086993310, 11086993500, 11086993510, 11086993700, 11086993710, 11086993800, 11086993810, 11086994100, 11086994300, 11086994500, 11086994700, 11086994800, 11087850800, 11088762790, 11088762791, 11088762792, 11088762793, 11088764790, 11088764791, 11088764792, 11088764793, 11092962100, 11092962101, 11092962102, 11092964100, 11092964101, 11092964102, 11092966100, 11092966101, 11092966102, 11094962300, 11094964300, 11094966300, 11096060100, 11096091100, 11096091300, 11096091700, 11096091800, 11096093100, 11096093300, 11096093500, 11096093700, 11096093800, 11096094100, 11096094300, 11096094500, 11096094700, 11096094800, 11096110100, 11096121100, 11096195100, 11096195110, 11096195120, 11096195500, 11096195510, 11096195520, 11096195800, 11096195810, 11096195820, 11096210100, 11096220100, 11096250100, 11096260100, 11096263100, 11096263800, 11096264100, 11096264800, 11096271100, 11096271600, 11096271800, 11096272000, 11096272100, 11096272600, 11096272800, 11096272900, 11096273100, 11096273600, 11096273800, 11096274100, 11096274600, 11096274800, 11096278100, 11096278800, 11096280100, 11096280600, 11096280800, 11096281100, 11096281800, 11096282100, 11096282800, 11096283100, 11096283110, 11096283800, 11096283810, 11096284100, 11096284110, 11096284800, 11096284810, 11096291100, 11096291110, 11096291800, 11096291810, 11096292100, 11096292110, 11096292800, 11096292810, 11096293100, 11096293110, 11096293500, 11096293510, 11096293800, 11096293810, 11096310100, 11096320100, 11096350100, 11096363100, 11096363800, 11096364100, 11096364800, 11096374200, 11096374210, 11096375100, 11096375800, 11096407160, 11096418100, 11096418800, 11096428100, 11096428800, 11096429100, 11096429800, 11096468100, 11096468800, 11096469100, 11096469800, 11096478100, 11096478800, 11096510100, 11096510110, 11096510120, 11096511100, 11096511110

What's the difference between the high limit thermostat and the thermal fuse?

The high limit thermostat and thermal fuse are both safety devices that protect your dryer from overheating, but they work differently. The high limit thermostat (like the WP3390291) is a resettable bi-metal switch — when the temperature gets too high, it opens the circuit to cut power to the heater, but once the temperature drops, it automatically resets and allows heating to resume. It's designed to cycle as needed during normal operation if temperatures spike. The thermal fuse is a one-time safety device — when it blows due to excessive heat, it permanently breaks the circuit and must be replaced. It's the last line of defense and only activates if the high limit thermostat fails to control the temperature. If your dryer has no heat, test both components: the high limit thermostat should show continuity at room temperature (if it doesn't, it's failed open); the thermal fuse should also show continuity (if it doesn't, it's blown). Both components failing often indicates a clogged vent that caused severe overheating — always clean the vent system when replacing either part.

WP3390291, Whirlpool dryer high limit thermostat, dryer high limit thermostat, dryer won't heat, 3390291, dryer overheating, dryer thermal cut-off, dryer safety thermostat, Maytag dryer thermostat, dryer shuts off mid-cycle, Kenmore dryer thermostat, dryer limit thermostat, dryer no heat, high temperature cut-off, dryer thermostat replacement, L250 thermostat, dryer keeps shutting off, Whirlpool dryer repair, dryer overheats then stops, dryer thermal limit switch

Whirlpool
