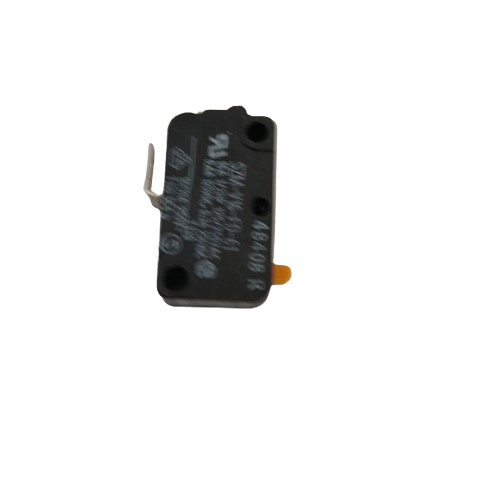

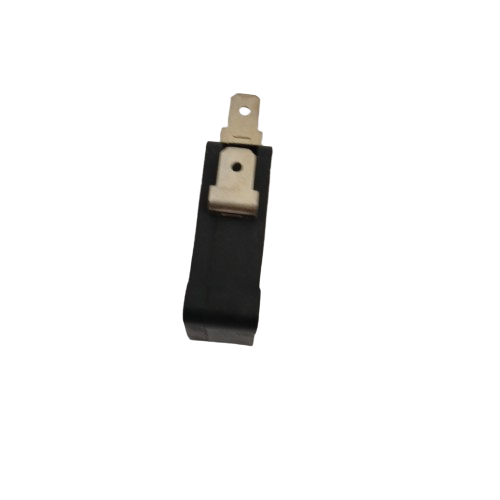

WP3405-001034 Whirlpool Microwave Door Switch, 125/250 VAC
OEM Whirlpool Replacement | Microwave Door Interlock Switch | Replaces 3405-001034 | Ships Fast from XPart Supply
The WP3405-001034 is the genuine OEM Whirlpool microwave door interlock switch rated at 125/250 VAC. This switch is part of the door safety interlock system that prevents the microwave from operating when the door is open. When a door switch fails, the microwave may not start, may run with the door open (a safety hazard), or may blow the main fuse. This part directly replaces 3405-001034 and fits over 300 Whirlpool, Maytag, JennAir, Amana, and Samsung-built microwave models.
✓ Model-Specific Repair Pages
UMV2186AAS
UMV1152CAS
UMC5200BAS
YMMV4203DS00
UMV2186AAS
UMV1152CAS
UMC5200BAS
SMH7175BC
SMH7174BC
MMV5207BAS
SMH7150BC
MMV4205BAS
JMV8208BAS
MMW5530DAB20
JMC9158BAS
MMV5207BAS
AMV5164BAS
MMV4205BAS
AMC6158BAS
AMC5101AAS
AMC4080AAS
JMV9169BAS
AMC2206BAB
JMV8208BAS
AMC2206BABAMC4080AASAMC5101AASAMC6158BASAMV5164BASJMC9158BASJMV8208BASJMV9169BASMMV4205BASMMV5207BASSMH7150BCSMH7174BCSMH7175BCUMC5200BASUMV1152CASUMV2186AASMMW5530DAB20JMW8330DAB15JMW9330DAB16YMMV4203DS00
Microwave ovens use a series of two or three door interlock switches that must all close in the correct sequence when the door is shut before the magnetron can energize. The WP3405-001034 is a normally-open or normally-closed switch (depending on position in the circuit) rated at 125/250 VAC. A failed switch typically causes the microwave to be completely dead, to blow the main fuse, or in rare cases to run with the door open. Always replace all door switches as a set when one fails, and always replace the fuse if it has blown before diagnosing the switches.
✓ Common Symptoms Fixed
Microwave completely dead — will not start at all — Main fuse blows repeatedly — Microwave runs with door open (safety hazard — stop use immediately) — Microwave starts but stops immediately after door closes — Display works but microwave won't heat
✓ Key Features & Specifications
OEM Whirlpool part number WP3405-001034 — Replaces 3405-001034 — Type: Microwave door interlock switch — Rating: 125/250 VAC — Fits Whirlpool, Maytag, JennAir, Amana, and Samsung-built microwave models — 300+ compatible models
✓ Buying Options
New OEM (WP3405-001034): Genuine Whirlpool original equipment manufacturer part. Exact fit and full manufacturer specifications. Recommended for all standard repairs. XPart Supply aftermarket replacement parts are not affiliated with, sponsored by, or endorsed by Whirlpool or any OEM manufacturer.
✓ Replacement Part Numbers
WP3405-001034 (OEM Whirlpool) — 3405-001034 (superseded)
✓ Installation Tips
Unplug the microwave before beginning — capacitors inside can hold a lethal charge even when unplugged. If you are not comfortable discharging the capacitor, take the unit to a qualified technician. Remove the outer cabinet to access the door switch assembly. Photograph all switch positions and wire connections before disconnecting. Test each switch with a multimeter before replacing to confirm which one has failed. Replace the main fuse if it has blown. Install the new switch in the same position and orientation, reconnect all wires, reassemble the cabinet, and test all door positions before returning to service.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
