Whirlpool Range Sealed surface burner assembly / sealed burner head with spark electrode WP3412D024-09, Replaces 3412D024-09

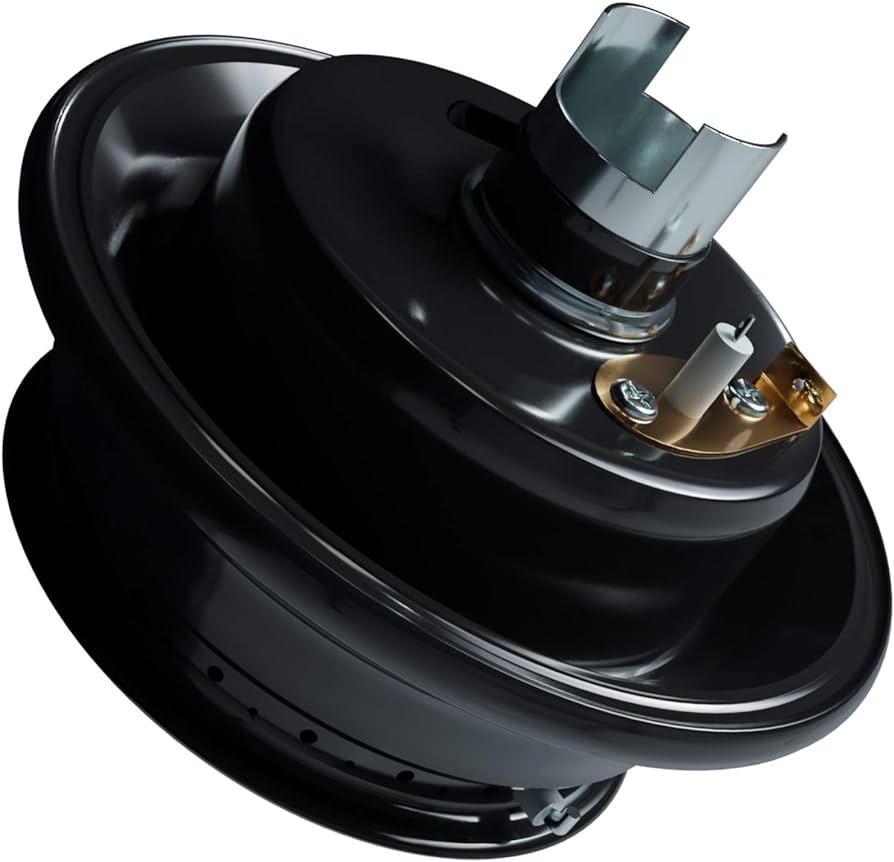

Black sealed gas surface-burner head assembly with an integrated spark electrode. It directs gas flow and supports even flame distribution on a gas range. The manufacturer parts listing states that no gasket seal is required and that the assembly releases by rotating counterclockwise.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• A burner fails to light despite the range’s ignition system operating
• Uneven or unstable flame distribution from the affected burner
• Gas odor associated with a burner that does not ignite
• Burner ignition or flame performance remains abnormal after confirming the burner components are correctly seated

Check Before Replacing

• Turn all burner controls off and allow the burner to cool before inspection.
• Confirm the burner head is correctly seated and has not shifted out of position.
• Visually inspect the burner head, gas ports, and integrated electrode for cracks, blockage, contamination, or visible damage; do not probe or enlarge the ports.
• Compare the affected burner’s visible flame behavior with another burner, while following the appliance owner’s safety instructions.
• If gas odor persists when the controls are off, stop using the appliance, ventilate the area if safe, and contact a qualified gas-appliance service professional.

Pro Tip

Part Details

Key Features

• Whirlpool OEM sealed gas surface-burner head assembly
• Black burner head
• Integrated spark electrode included
• No gasket seal required for the updated design
• Assembly releases from the main top by rotating counterclockwise, according to the Whirlpool parts listing

Installation Notes

• Disconnect electrical power and allow the appliance and burner components to cool before service.
• Remove the grate and other removable burner components as needed to access the assembly.
• Follow the manufacturer’s specified rotation direction to release the old assembly; the Whirlpool listing specifies counterclockwise release.
• Transfer or reconnect the spark/electrode connection only as directed by the appliance’s service information, keeping wires from falling into the range top.
• Seat and lock the replacement assembly as directed, and do not add a gasket seal because the updated part is specified not to require one.
• After installation, check operation only after all parts are correctly seated; if gas odor or abnormal flame persists, discontinue use and obtain qualified service.

Verified Compatible Models

A8241RA, A8241RS, A8241RV, A8241RW, CSG5600BAD, CSG5600BAL, CSG5600BAW, D8241RT-L, X8261RB, X8261RV

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
