Whirlpool Top-load washer drain pump with pulley WP35-6465, Replaces 35-6465, 35-2057, 35-2099, 35-3834, 35-5766, 21001589, 21001732, 21001906

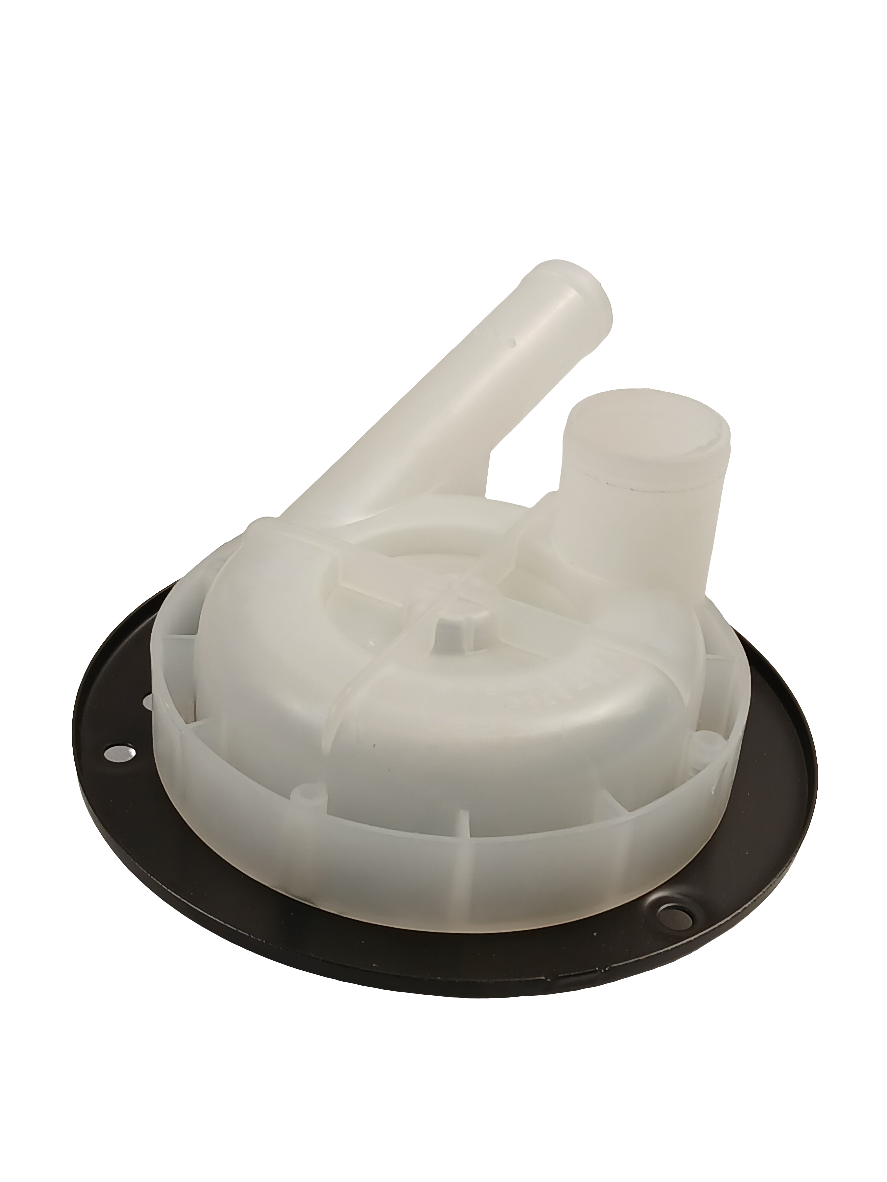

Two-port washing-machine drain pump assembly driven by the main drive belt; includes a pulley and removes water during the washer drain cycle.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Washer will not drain or drains poorly
• Water leaks from the pump area or underneath the washer
• Grinding, screeching, or other unusual noise during draining or spin
• Burning smell or belt-related noise if the pump or pulley is seized
• Washer may fail to agitate or complete the cycle when the pump or pulley is mechanically locked

Check Before Replacing

• Disconnect electrical power before inspecting the pump, belt, or hoses.
• Check the drain hose and the pump’s two hose connections for kinks, obstructions, loose connections, or visible leakage.
• With power disconnected and residual water safely contained, inspect the pump area for foreign objects, pulley damage, belt damage, or signs of seizure.
• If accessible for the specific washer model, observe whether the pump pulley turns with the drive belt and whether the pump produces grinding or screeching; do not force a seized pulley.
• Verify that the washer’s drain problem is not caused by a blocked external drain hose or another drive-system component before condemning the pump.

Pro Tip

Part Details

Key Features

• Whirlpool genuine OEM drain-pump assembly
• Two water ports

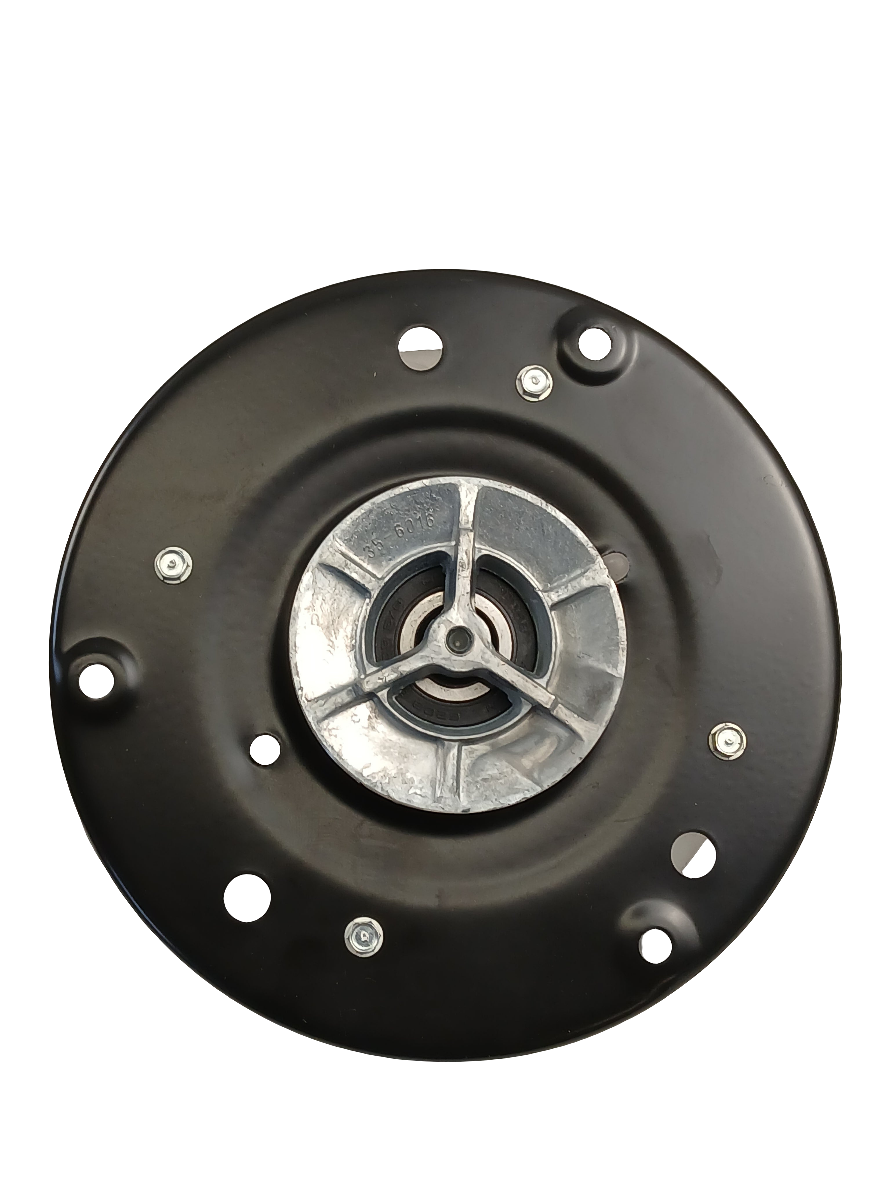

• Integrated pulley for main-drive-belt operation
• Designed for top-load washing machines
• Removes water during the washer drain cycle

Installation Notes

• Disconnect power and water supplies before service, and contain residual water from the hoses before removing the pump.
• Use the washer model’s service procedure to gain access to the pump and belt area; access and fastener count can vary by model.
• Mark or photograph hose routing and pump orientation before removal, then reconnect both hoses to the corresponding ports and secure their clamps.
• Remove or release the drive belt as required for the model, reinstall it over the pump pulley and the other drive pulleys, and verify that it tracks correctly before testing.
• Do not operate the washer until the pump is securely mounted, both hoses and clamps are reconnected, and the belt and panels are correctly restored.

Verified Compatible Models

AAV1000AWW, AAV2000AWW, AAV2200AWA, AAV2200AWW, AAV4200AWA, AW20L1A, AW20L4WS, CW18P2AC, CW20P5HC, CW20P6H, CW20P8WSC, HWA2606A, LWM263KA, LWN203AC, W20JY4C

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
