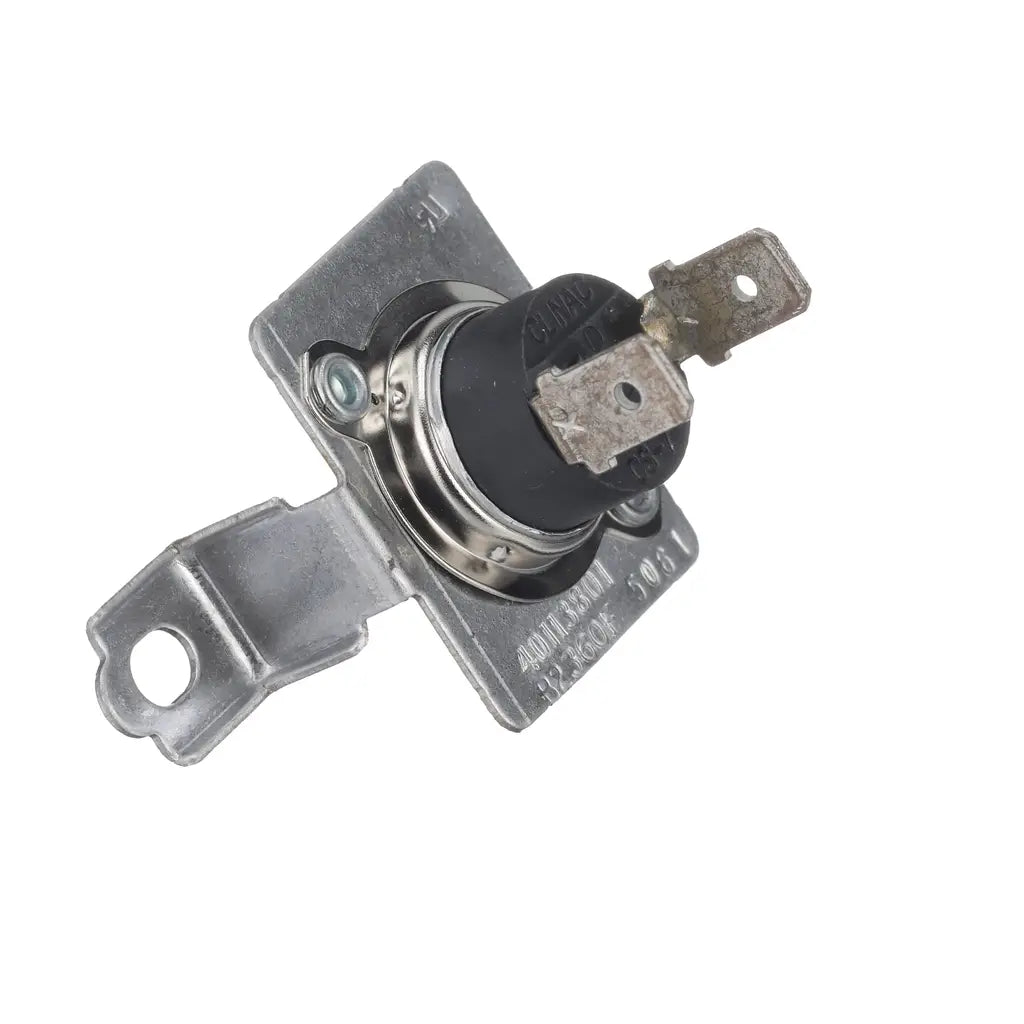

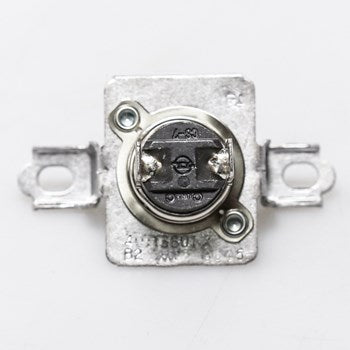

Whirlpool Dryer Thermal Fuse WP40113801, Replaces 40113801, 14218937, 510183, 62600

Genuine Whirlpool one-time-use high-limit thermal fuse for dryers. It serves as a backup to the high-limit thermostat and interrupts dryer heat when an overheat condition occurs.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Dryer does not start
• Dryer runs but does not heat
• Dryer has insufficient heat
• Dryer overheats before the fuse opens

Check Before Replacing

• Disconnect electrical power before servicing.
• With the fuse electrically isolated according to the model’s service procedure, check continuity with a multimeter; an open circuit indicates a blown fuse, but does not by itself identify the cause of overheating.
• Inspect and clean the dryer lint screen and exhaust vent for restricted airflow before installing a replacement.
• Do not bypass, jumper, or reuse this one-time fuse; confirm the replacement matches the dryer model and the specified temperature rating.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM dryer thermal fuse
• High-limit safety component
• One-time-use, non-resettable design
• Listed as a 360°F dryer thermal fuse
• Functions as backup protection for the high-limit thermostat

Installation Notes

• Disconnect the dryer from electrical power before installation.
• Access and mounting location vary by dryer model; use the model-specific service or repair instructions.
• Transfer the wires to the replacement fuse only after confirming the wiring and part match the model.
• Secure the new fuse in the original mounting position and restore all panels and wiring before testing.
• After replacement, verify that the exhaust path is clear and test the dryer according to the model’s instructions.

Verified Compatible Models

ADE7005AKW, ADE7005AYW, ADE9005AGW, AEM197, AEM377, AEM397, AEM407L, AEM407L2, AEM427L2, AEM427W, AEM427W2, AEM477L2, AEM477W, AEM497L, AEM497W, AEM677L2, AEM677W, AEM677W2, AEM697L, AEM697W, ALE230RCW, ALE331RAW, ALE443RAC, ALE443RCW, ALE643RBC, ALE866SBC, ALE866SBW, ALE866SCW, ALG230RAW, ALG331RAW, ALG331RMC, ALG331RMW, ALG443RAW, ALG643RBC, ALG643RMC, ALG866SBW, ALG866SCW, CDE6505AZW, CDE6505W, CDE9500W, CDE9505AZW, CDE9505W, CDG6505W, CDG9505W, CYE3005AKW, CYE3005AYW, CYE3005AZW, CYG1005AWW, DLE330RCW, DLG330RCW

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
