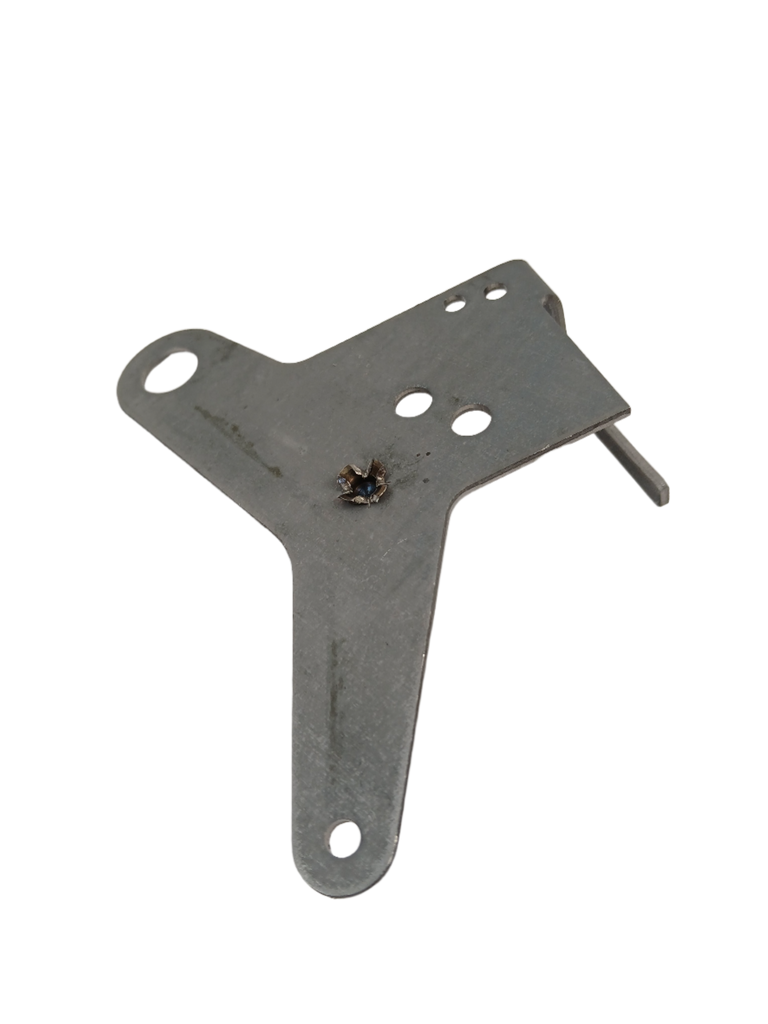

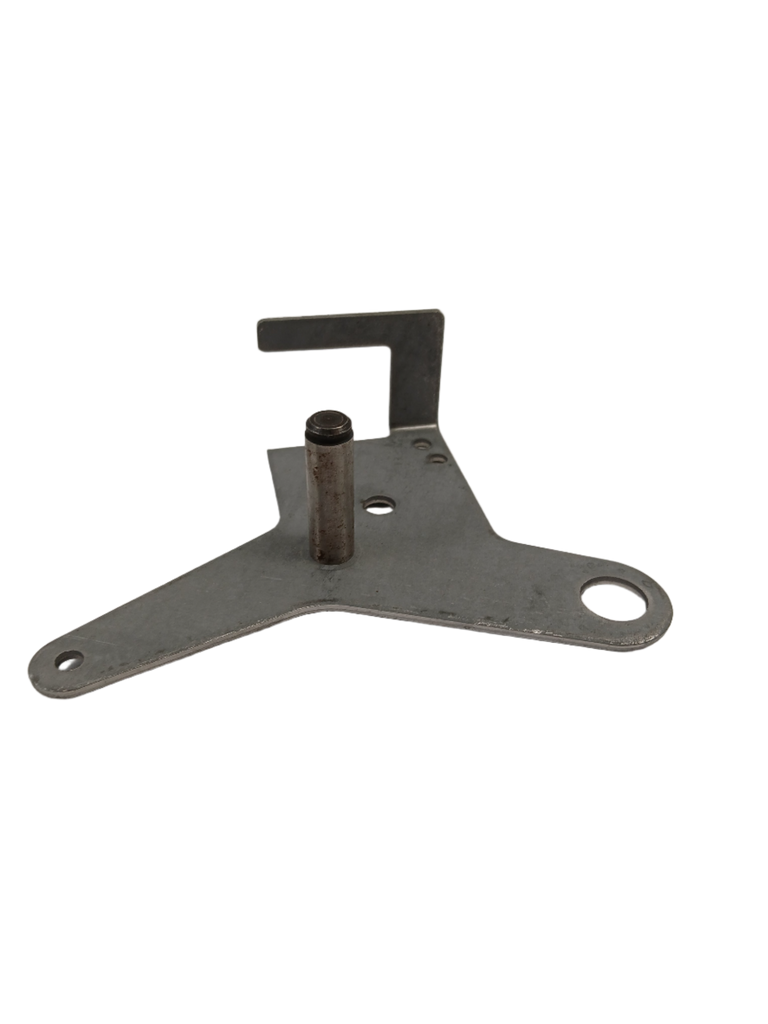

Whirlpool Dryer Idler Pulley Arm and Shaft Assembly WP6-3033630, Replaces 6-3033630, 63033630, Y303363, 3-3363, 303363

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Excessive idler-arm or shaft play when the belt is tensioned
• Worn, bent, cracked, or damaged arm or shaft
• Idler pulley does not rotate freely on the shaft
• Belt dust, fraying, or abnormal belt tracking associated with poor idler alignment

Check Before Replacing

• Unplug the dryer and allow heated components to cool before inspection.
• With the belt tension released, inspect the arm and shaft for bending, cracks, wear, or unusually loose movement.
• Check that the idler pulley wheel rotates freely on the shaft and that its washers or retaining hardware are present.
• Inspect the drive belt for fraying, edge damage, belt dust, or abnormal tracking before concluding the arm is faulty.
• Verify that the idler-arm spring remains attached at the arm and motor-bracket connection points.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power before accessing the idler assembly.
• Release belt tension before removing the belt from the motor and idler pulley.
• When reusing the pulley wheel, inspect its shaft contact surface, washers, and retaining clip; replace worn components as needed.
• Reconnect the idler-arm spring and reinstall the assembly so the belt is taut and correctly routed around the motor and idler pulleys.
• After reassembly, confirm that the pulley rotates freely and that the belt remains correctly positioned before operating the dryer.

Verified Compatible Models

DE18CA, DE18CM, DE18CS, DE18CT, DE19CA, DE19CD, DE19CS, DE19CT, DE21CA, DE21CM, DE106, DE107, DE110, DE210, DE212

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
