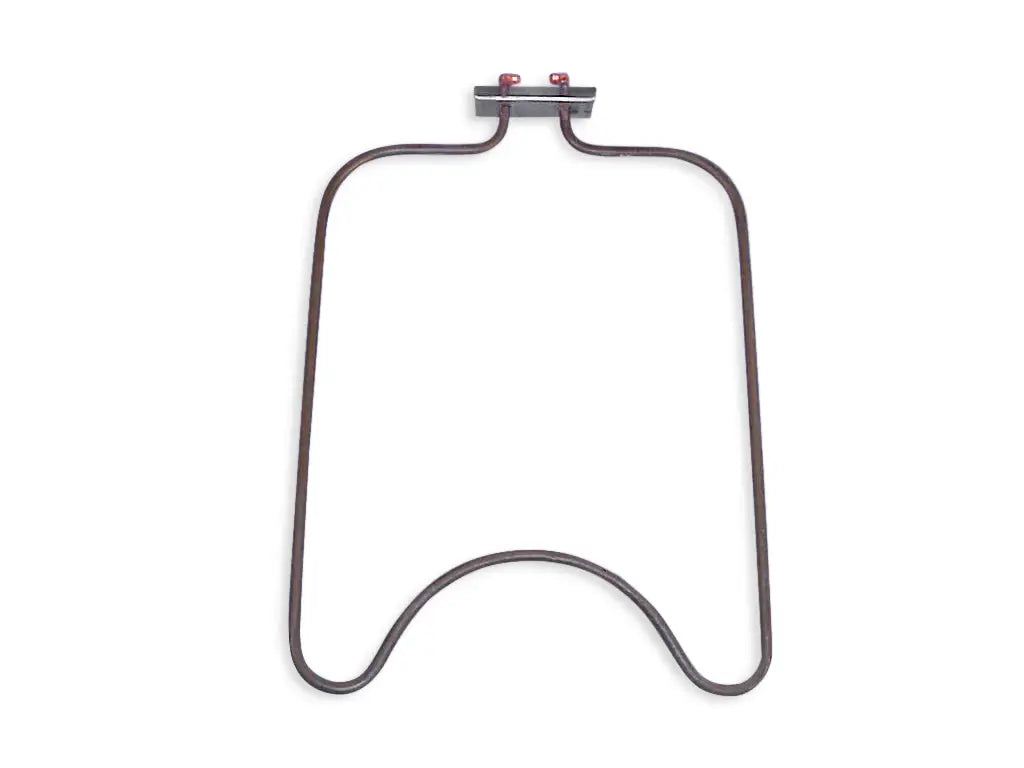

Whirlpool Range Bake Element with Screws WP715269, Replaces 715269, Y700618, 700618

Genuine OEM lower oven bake element. It mounts at the bottom of the oven cavity and supplies heat for baking; the part includes two screws.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Oven does not heat for bake
• Baking is uneven or takes unusually long
• Oven temperature is lower than expected during baking
• Visible holes, blisters, or burn-through on the element

Check Before Replacing

• With the oven cool and power disconnected, visually inspect the element for holes, blisters, burn-through, or other visible damage.
• Confirm that the bake element’s terminal connections and nearby wiring are not visibly loose, scorched, or damaged; do not handle wiring while energized.
• If using a multimeter, disconnect appliance power and isolate the element wiring before checking the element for continuity; an open circuit indicates the element itself is defective, but continuity does not by itself prove the complete heating circuit is good.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM lower oven bake element
• Includes two mounting screws
• Approximately 18 inches long
• Terminal depth is less than 1 inch

Installation Notes

• Disconnect power to the range or wall oven and allow the oven to cool before service.
• The element is mounted at the bottom of the oven cavity and is secured with screws.
• After removing the mounting screws, handle the element and its terminal wiring carefully to avoid stressing the connections.
• Verify that the replacement part’s terminals and mounting arrangement match the removed element before reconnecting and securing it.

Verified Compatible Models

4760, 4770, 4775, 4790, 4855, 4860, 4870, 4875, 4890, 88168, 88169, 88170, 88368, 88369, 88370, 800181, 800181-C, 800263, 800263-C, 800264, 800264-C, D120, W100, W100-C, W120, W120-C

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
