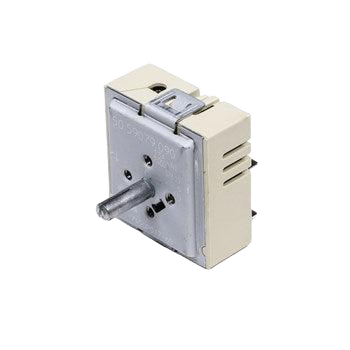

Whirlpool Range Dual surface element control switch WP74003122, Replaces 74003122, 7450P017-60, 7450P01760

OEM surface element control switch for a dual-sized burner. It turns the surface element on and off and controls heat output. The updated design uses seven labeled wire terminals instead of the earlier five-terminal design.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Surface element will not heat
• Only the inner or smaller zone of the dual element heats
• Burner operates only on high or does not regulate temperature
• Burner control knob does not properly switch or regulate the dual element

Check Before Replacing

• Disconnect electrical power to the range at the plug or circuit breaker before inspecting the switch.
• Verify that the surface-element wiring and terminals have no visible loose, burned, or damaged connections.
• Compare the existing switch terminal labels and wire positions with the replacement switch; do not rely only on terminal location because the updated design differs.
• If electrical testing is appropriate, test the switch and related element circuit only with power removed and according to the appliance wiring diagram or service documentation.
• Check the dual element itself and its wiring before condemning the switch, since either component can cause partial or no heating.

Pro Tip

Part Details

Key Features

• Whirlpool genuine OEM dual surface burner control switch
• For electric ranges with a dual-sized surface element
• Updated seven-terminal design replacing an earlier five-terminal design
• Terminals are labeled for retrofit wiring
• Rated 15 A, 240 V according to appliance-parts retailer specifications

Installation Notes

• Disconnect power to the range before starting; use the circuit breaker if the plug is inaccessible.
• Remove the control knob and access panels only as required by the appliance design.
• Record the original wire locations before disconnecting the old switch.
• Transfer wires to the matching labeled terminals on the new switch; terminal placement may differ from the old switch.
• Do not connect or test the pilot-lamp wire until the line and load wiring has been correctly connected and the retrofit instructions have been followed.
• Reassemble all panels and restore power only after wiring is secure. Powered voltage testing should be performed only by a qualified person using appropriate procedures.

Verified Compatible Models

6294576, 62260002600, 62260003600, 62260008600, 62260009600, AER5725QAQ, AER5735QAB, AER5735QAF, AER5735QAQ, AER5845QAN, MER5765QAB, MER5775QAQ, MER5875QAF, PER5750QAS, PER5750QCQ

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
