Whirlpool Range Hidden bake element, 2400W WP9755770, Replaces 9755770, W10308474

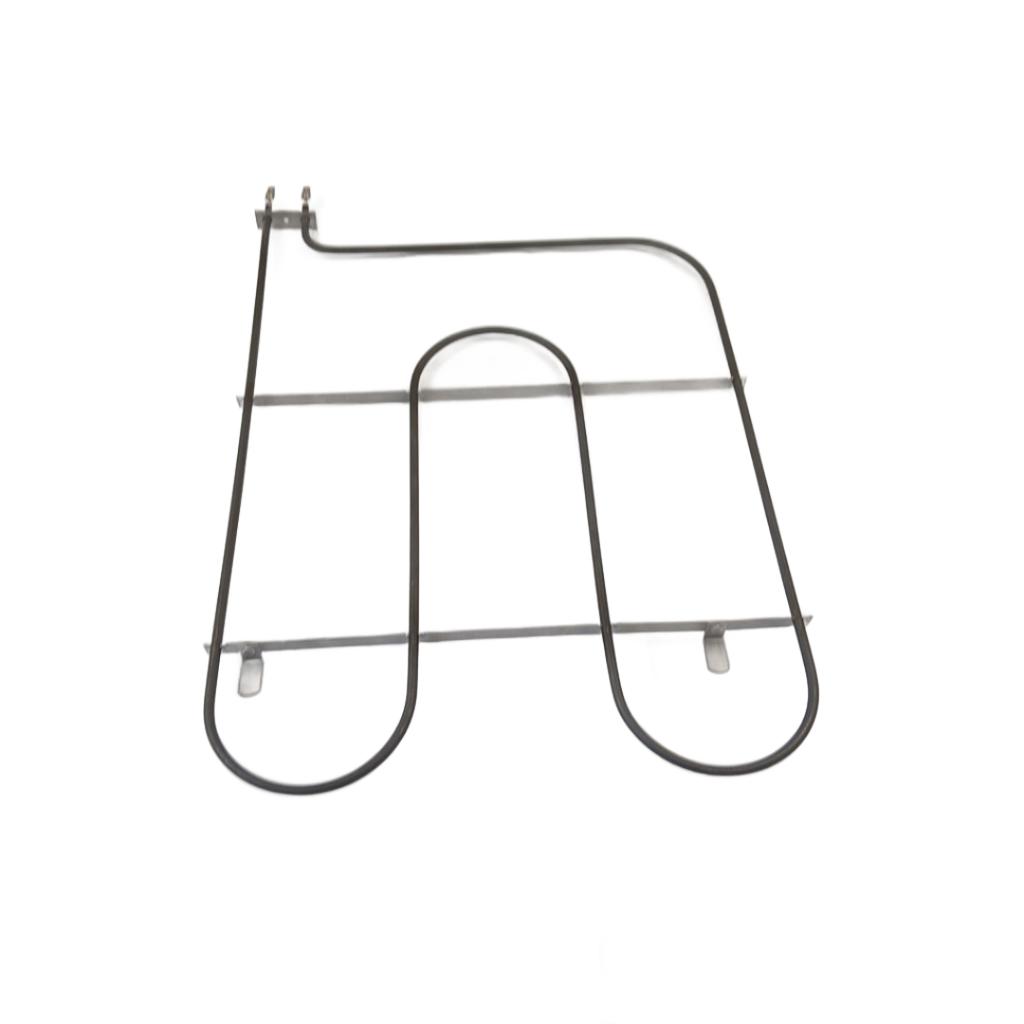

Genuine Whirlpool OEM hidden oven bake element rated at 2400 watts. The part is used in electric ranges and is installed beneath the oven cavity floor.

Is This the Right Part?

Common Symptoms

• Oven does not heat or takes unusually long to preheat.
• Baked food remains undercooked or the oven does not maintain the selected temperature.
• Oven heating is uneven when the bake element is not operating correctly.

Check Before Replacing

• With the range switched off and disconnected from power, inspect the accessible element wiring and terminals for loose, damaged, or heat-discolored connections.
• If the element terminals can be safely isolated, check continuity across the element with a multimeter; an open circuit supports a failed element, but does not by itself prove the complete oven fault.
• Compare Bake operation with Broil operation; if Broil works but Bake produces little or no heat, the hidden bake circuit or element warrants further diagnosis.
• Verify the appliance model number before ordering, because access and circuit layout vary by model.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM hidden bake element.
• 2400-watt heating element.
• Installs beneath the oven cavity floor.
• Used in compatible electric ranges.
• Whirlpool part number WP9755770; archived replacement numbers include 9755770 and W10308474.

Installation Notes

• Disconnect electrical power before accessing or servicing the element.
• The element is concealed beneath the oven cavity floor; access method varies by range model and may require access through a side, rear, drawer, or lower service panel.
• Do not pull on or strain the element wires when disconnecting the old element.
• Confirm the replacement element’s terminals and routing match the removed part before final reassembly.
• Follow the model-specific service instructions and verify the model number before beginning the repair.

Verified Compatible Models

GFE461LVB0, GFE461LVB1, GFE471LVB0, GR448LXPT3, GR563LXST1, MER7664XW2, WERP4120PB3, WERP4120SS0, WFE515S0EB1, WFE515S0ED1, WFE515S0ES1, WFE515S0ET1, WFE515S0EW1, WFE535S0JS0, WFE535S0JV0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
