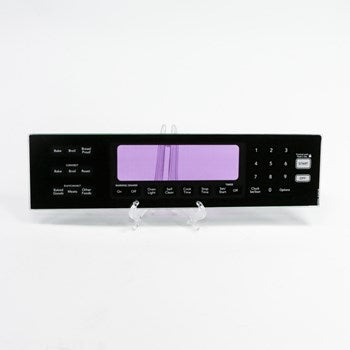

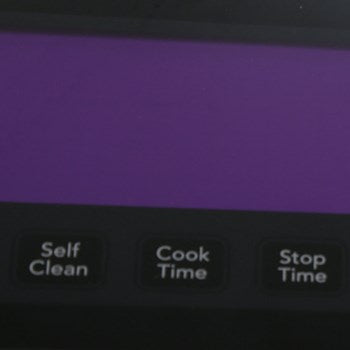

Whirlpool Range touchpad / membrane switch (black) WP9761566, Replaces 9761566

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Touchpad buttons do not respond to input.
• A stuck/shorted-key or keypad-disconnected indication may occur on applicable models.

Check Before Replacing

• Disconnect power at the breaker before accessing the control area.
• Confirm the control is not in a locked state and power-cycle the range before concluding the membrane switch has failed.
• With power disconnected, inspect that the touchpad ribbon connection to the electronic control board is fully seated and free of visible contamination or damage.
• If the connection is secure but symptoms remain, do not assume the membrane switch is the sole cause; the electronic control board may also require diagnosis.

Pro Tip

Part Details

Installation Notes

• Disconnect range power at the breaker before service.
• Verify the exact model accepts WP9761566 before opening the control panel.
• Transfer and reconnect the touchpad ribbon connection carefully; ensure it is fully seated at the electronic control board.
• This part does not include the ribbon cable, so retain the existing compatible cable unless separately replacing it.

Verified Compatible Models

KDRS807XSP, KDSS907XSP, KDRS807SSS00, KDRS807SSS01, KDRS807SSS02, KDRS807SSS03, KDRS807SSS04, KDRS807SSS05, KDRS807XSP00, KDRS807XSP01, KDSS907SSS00, KDSS907SSS01, KDSS907SSS02, KDSS907SSS04, KDSS907XSP00, KDSS907XSP01, KERS807SWW04

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
