Whirlpool Range Dual surface element control switch WP9763762, Replaces 9763762

Sale price
$201.99
Regular price
$222.31
You save
$20.32 (9%)
Buying Options: OEM

Product variant with selected options does not exist!

Frequently Bought Together

Confirm This Fits Your Model
Not sure where to find your model number? See guide →
A DUAL SURFACE ELEMENT WILL NOT HEAT OR WILL NOT ADJUST

Whirlpool Range Dual surface element control switch WP9763762, Replaces 9763762, Fixes A dual surface element will not heat or will not adjust heat correctly

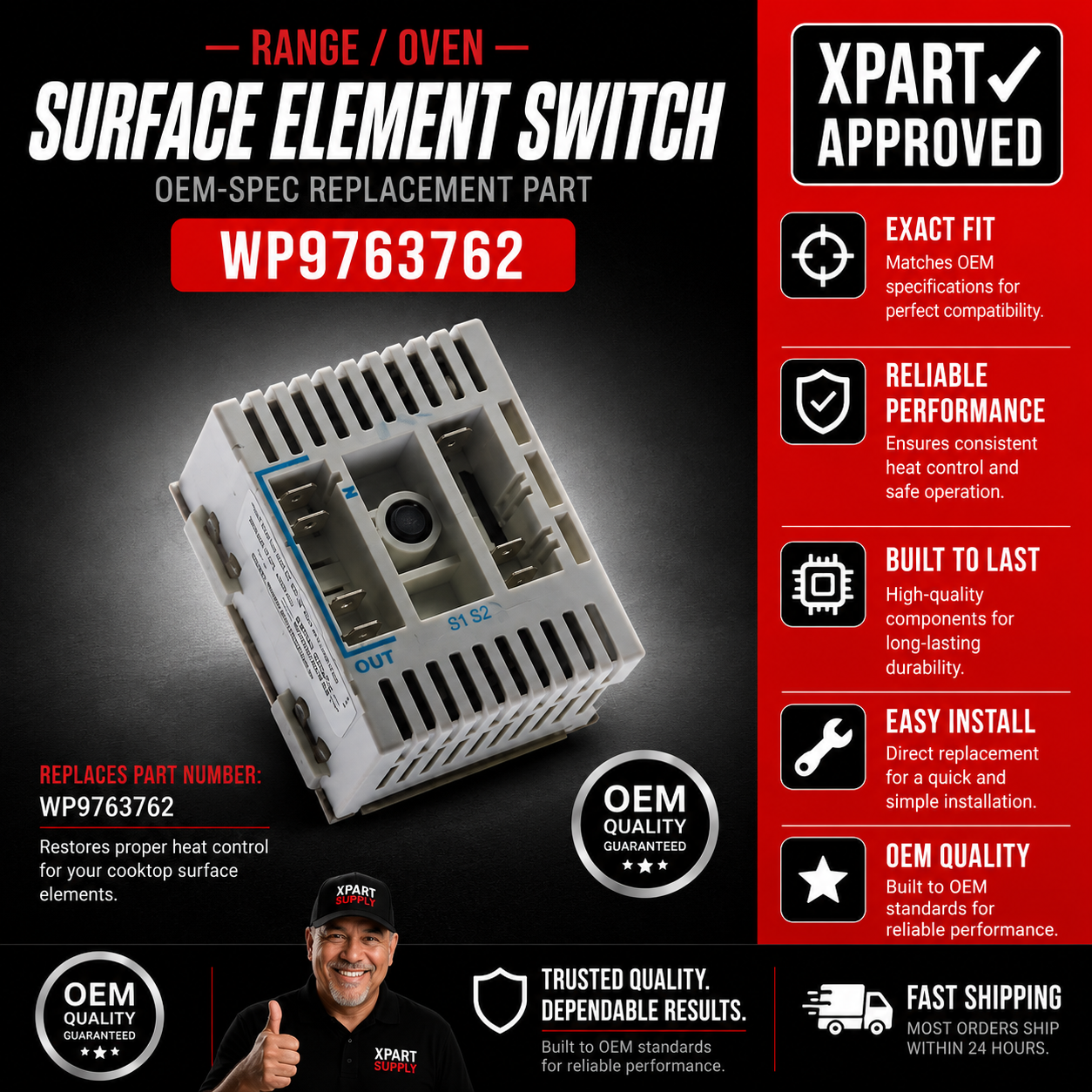

Genuine Whirlpool dual surface-element control switch, also described as an infinite switch, for electric ranges.

Part WP9763762Replaces 9763762Whirlpool

Genuine Whirlpool dual surface-element control switch, also described as an infinite switch, for electric ranges.

Is This the Right Part?

Part NumberWP9763762
Replaces9763762
ManufacturerWhirlpool
Appliance TypeRange
Part TypeDual surface element control switch

Common Symptoms

  • Surface element will not heat
  • Surface element will not turn on
  • Surface element will not start
  • Surface element heat cannot be adjusted correctly

Check Before Replacing

  • With power disconnected, verify the appliance model number before ordering because this electrical switch is model-specific.
  • If the associated dual surface element does not heat or adjust properly, compare the switch part number against the range’s parts list or model-specific fit guide.
  • Do not test or handle the switch while the range is energized.

Pro Tip

Confirm that the replacement is for the dual element circuit; Whirlpool also uses a separate single-element switch with a nearby part number.

Part Details

Part NumberWP9763762
Part TypeDual surface element control switch
ManufacturerWhirlpool
Appliance TypeRange
Primary FunctionTurns the dual surface element on and off and regulates its heat level.
Cross References9763762

Key Features

  • Dual-element control switch
  • 10.5 amps
  • 240 volts
  • Controls surface-element heat

Installation Notes

  • Disconnect electrical power by unplugging the range or switching off the range circuit breaker before installation.
  • Use the appliance model number to confirm fit before replacing this electrical component.
  • Wear protective work gloves when handling the part, as recommended by the parts documentation.

Verified Compatible Models

KERS807SBB00, KERS807SBB01, KERS807SBB02, KERS807SBL00, KERS807SBL01, KERS807SBL02, KERS807SBL03, KERS807SBL04, KERS807SBS03, KERS807SSS00, KERS807SSS01, KERS807SSS02, KERS807SSS03, KERS807SSS04, KERS807SSS05, KERS807SWW00, KERS807SWW01, KERS807SWW02, KERS807SWW03, KERS807SWW04, KERS807XSP00, KERS807XSP01, KERS807XSP02, KESS907SBB00, KESS907SBB01, KESS907SBB02, KESS907SBL00, KESS907SBL01, KESS907SBL02, KESS907SBL04, KESS907SBL05, KESS907SBL06, KESS907SSS00, KESS907SSS01, KESS907SSS02, KESS907SSS04, KESS907SSS05, KESS907SSS06, KESS907SWW00, KESS907SWW01, KESS907SWW02, KESS907SWW04, KESS907SWW05, KESS907SWW06, KESS907XSP00, KESS907XSP01, KESS907XSP02, KWES807SSS02, YKERS807SB00, YKERS807SB01, YKERS807SB02, YKERS807SB03, YKERS807SP00, YKERS807SP01, YKERS807SP02, YKERS807SP03, YKERS807SP04, YKERS807SS00, YKERS807SS01, YKERS807SS02, YKERS807SS03, YKERS807SS04, YKESS907SB00, YKESS907SB01, YKESS907SB03, YKESS907SB04, YKESS907SP00, YKESS907SP01, YKESS907SP03, YKESS907SP04, YKESS907SS00, YKESS907SS01, YKESS907SS03, YKESS907SS04, YKESS907SS05, YKESS907SW01

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.

✅Compatibility & Cross Reference

9763762

KERS807SBL01, KERS807SBL03, KERS807SBS03, KERS807SSS00, KERS807SSS04, KERS807SWW00, KERS807SWW02, KERS807SWW04, KESS907SBB01, KESS907SBL00, KESS907SBL02, KESS907SBL06, KESS907SSS04, KESS907SWW01, KESS907SWW05
