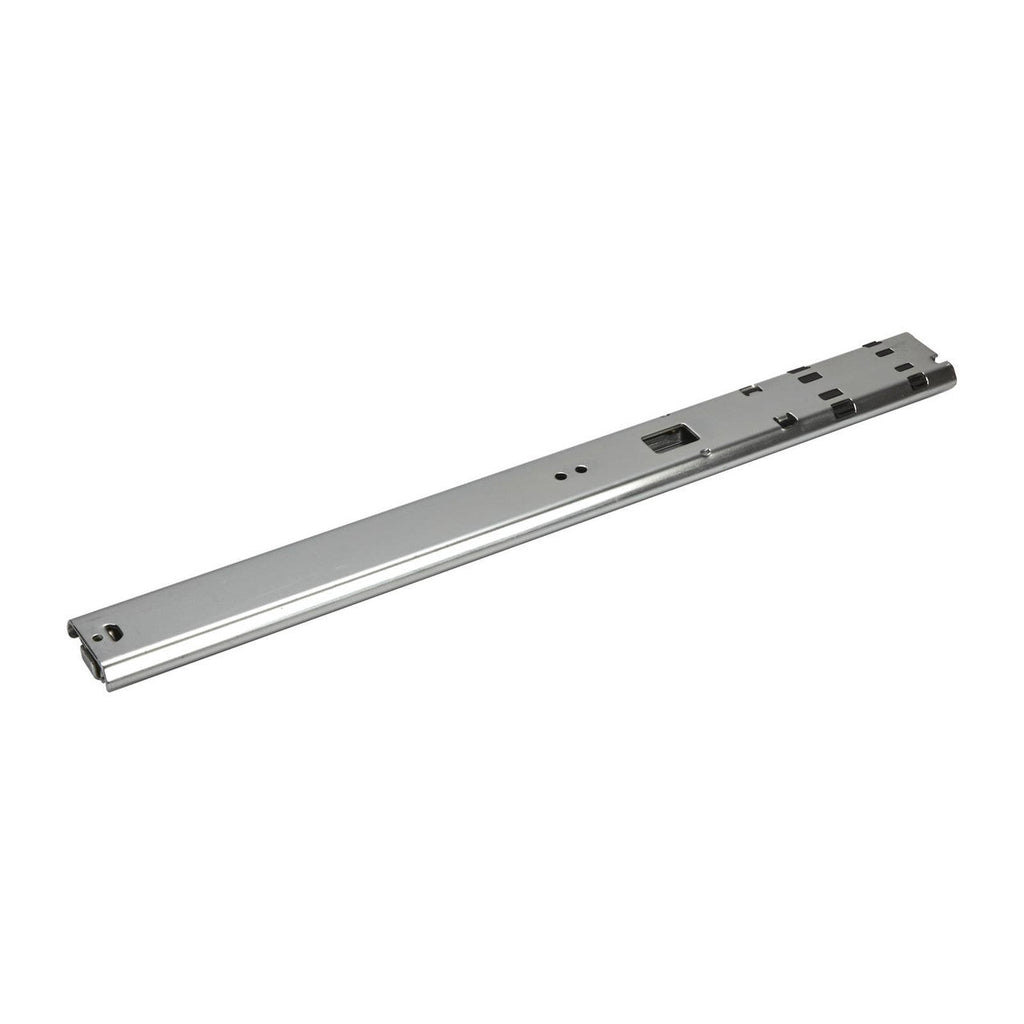

Whirlpool Refrigerator freezer drawer slide rail WPW10120018, Replaces W10120018, W10488000, 67006607

Genuine Whirlpool freezer drawer slide rail used in bottom-freezer and French-door refrigerator drawer assemblies. The part is sold as a freezer drawer slide set/rail and is identified for left/right drawer-slide applications by retailer catalogs.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Freezer drawer sticks or does not glide smoothly.
• Drawer is difficult to open or close.
• Drawer does not close or align properly, which may allow warm air entry and contribute to frost buildup.
• Visible damage or wear to the slide rail.

Check Before Replacing

• With the drawer unloaded, inspect the rail for visible cracks, bends, broken tabs, or separation from its mounting location.
• Slowly open and close the drawer while observing whether the rail binds, shifts, or causes the drawer to sit unevenly.
• Check that the drawer is properly seated on both slide rails and that no food packaging or ice is obstructing movement.
• Confirm the appliance model number before ordering because drawer-slide designs vary by refrigerator model.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool refrigerator freezer-drawer slide rail.
• Designed for either the left- or right-hand drawer-slide position according to the appliance configuration.
• Supports the freezer drawer and guides horizontal in-and-out movement.
• WPW10120018 is superseded by Whirlpool part W11658402.

Installation Notes

• Disconnect power and remove freezer contents before servicing the drawer assembly.
• Support the drawer during removal so its weight does not stress the remaining slide or cabinet mounting points.
• Follow the model-specific service or installation instructions because access and attachment details vary by refrigerator model.
• After installation, verify that the drawer is seated evenly, moves freely, and closes fully before restoring normal use.

Verified Compatible Models

10672002011, 10672002013, 10672002015, 10672003010, 10672003011, 10672003012, 10672003013, 10672003014, 10672003016, 10672003017, 10672003018, 10672009010, 10672009011, 10672009013, 10672009015

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
