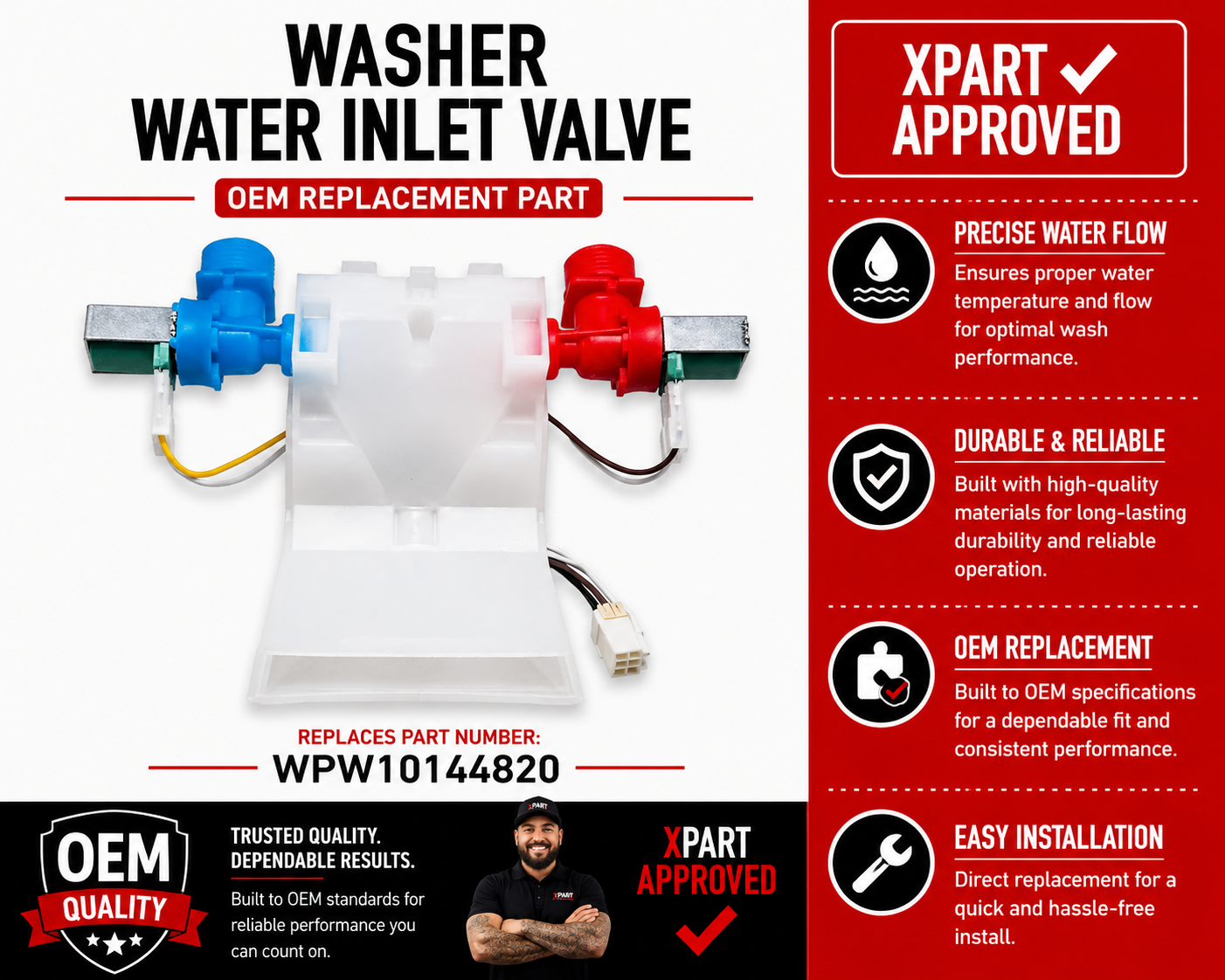

Whirlpool Washer Water Inlet Valve and Inlet Assembly with Thermistor WPW10144820, Replaces W10144820, W10311458

Whirlpool OEM washer water inlet valve and inlet assembly with hot- and cold-water valves, vacuum break, and thermistor for water-temperature sensing. A defective valve may cause slow filling or failure to fill.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Washer does not receive hot or cold water
• Washer fills slowly
• Water leaks at the inlet-valve assembly
• Water-temperature control or mixing may be incorrect
• Washer may continue filling if the valve does not close properly

Check Before Replacing

• Confirm both household hot- and cold-water supply valves are fully open.
• Check the inlet hoses for kinks, crushed sections, or blocked screens before condemning the valve.
• With the washer unplugged, inspect the valve body, hose connections, wiring connectors, and thermistor wiring for visible cracks, corrosion, looseness, or damage.
• If a fill problem is present, compare the affected hot/cold supply and check whether water enters only when the washer’s controls call for filling; do not bypass safety controls.
• After any inspection, restore water and power cautiously and check for leaks before normal operation.

Pro Tip

Part Details

Key Features

• Whirlpool OEM washer water inlet valve and inlet assembly.
• Separate hot- and cold-water valve functions.
• Integrated thermistor for water-temperature sensing.
• Includes the inlet assembly and vacuum-break feature identified for this part.
• Official Whirlpool description states that the valve opens to allow water into the washing machine.

Installation Notes

• Shut off both hot- and cold-water supplies and unplug the washer before service.
• Use the appliance’s model-specific service information to access the valve; access and retention details can vary by washer model.
• Mark or photograph hose and electrical-connector locations before disconnecting them, then reconnect each to its original location.
• Inspect hose ends and connectors during reassembly; do not reuse visibly damaged hoses or connectors.
• Restore water and power only after the assembly is secured, then inspect all connections for leaks during a controlled test.

Verified Compatible Models

1CWTW5200VQ1, 1CWTW5300VW1, 1CWTW5505VQ1, 1CWTW5590VQ1, 1CWTW5790VQ1, ATW4475VQ0, ATW4475VQ1, CAWS14234VQ0, CAWS16445VQ0, CAWS16445WQ0, CAWSS16445WQ0, CSWS16445WQ0, ETW4400WQ0, ETW4400WQ1, ETW4400XQ0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
