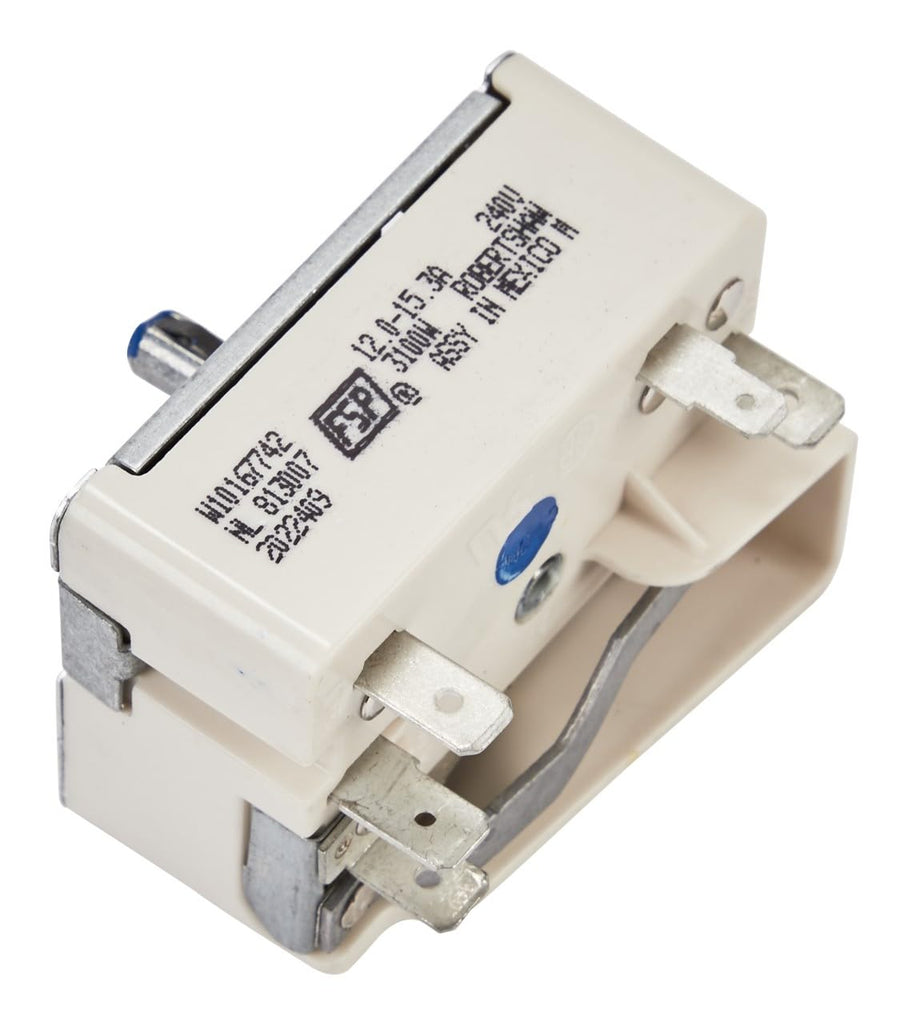

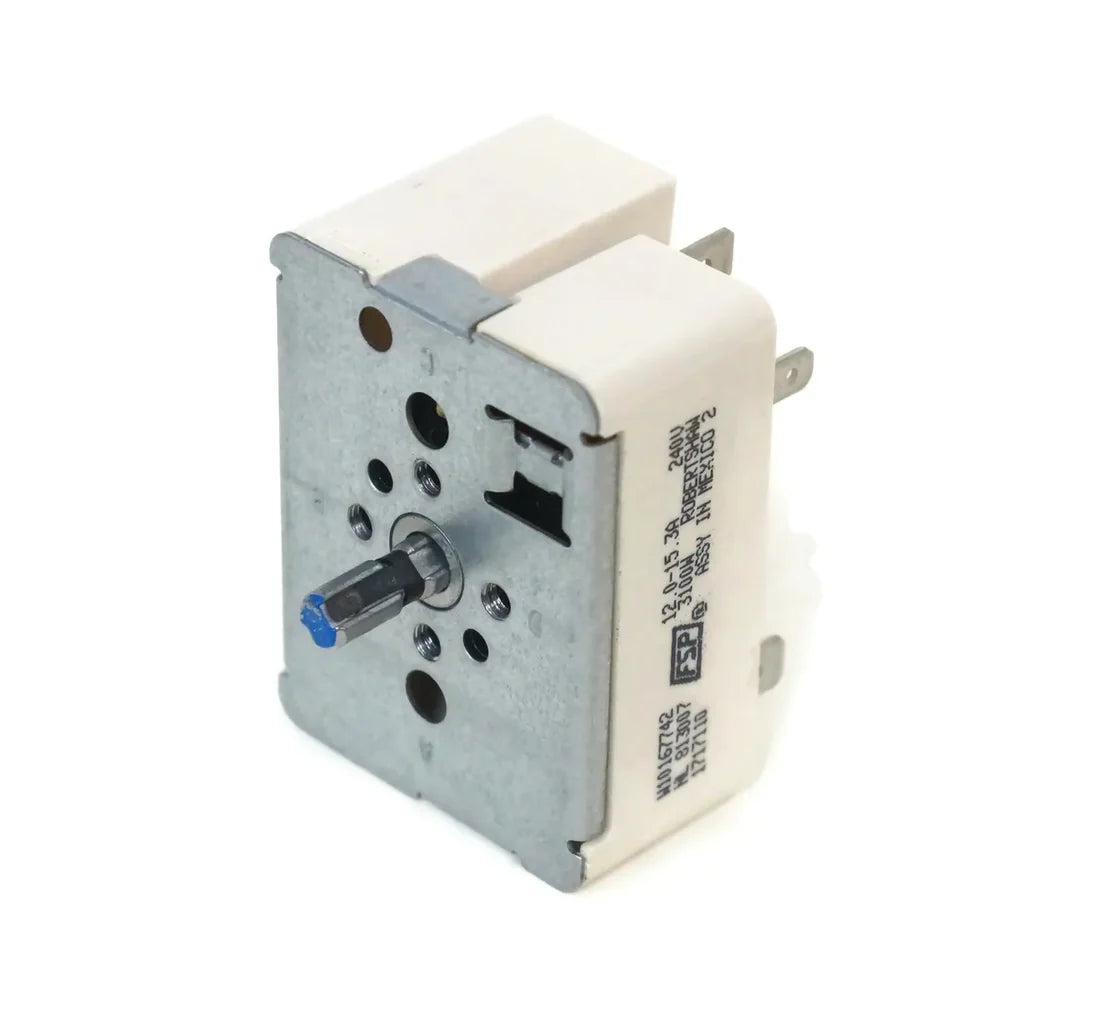

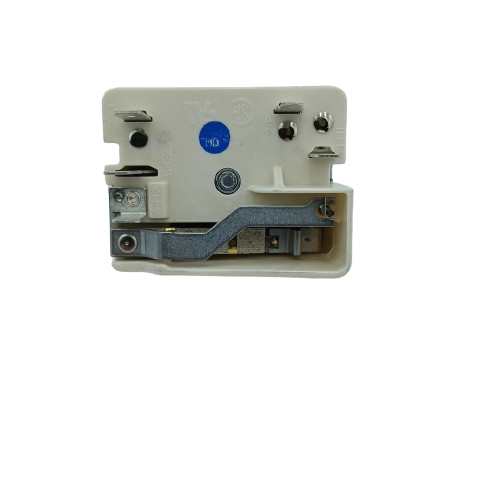

Whirlpool Corporation Range Surface element control switch, single element WPW10167742, Replaces W10167742

Infinite/surface-element control switch for a range stovetop burner; controls the element on/off function and heat level.

Is This the Right Part?

Common Symptoms

• The associated surface element will not turn on or heat.
• The associated surface element remains at high heat or will not turn off.
• The associated surface element heats erratically or does not maintain the selected heat level.

Check Before Replacing

• Observe whether the problem is limited to the surface element operated by this control knob; do not assume the switch is the sole cause.
• With the range energized only for normal operation, compare the affected element's response across its knob settings with another working element; avoid touching hot surfaces.
• If the element stays energized when set to OFF, turn the control to OFF and disconnect range power at the house circuit breaker before further inspection or service.
• With power disconnected, inspect the control-knob area and accessible wiring for obvious heat damage or loose connections; do not probe live terminals.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM surface-element (infinite) control switch.
• Controls a single surface element.
• Provides element on/off control and heat-output regulation.
• Listed as a 3,000-watt range surface-element control switch.

Installation Notes

• Disconnect the range from power by unplugging it or switching off its house circuit breaker before installation.
• Wear work gloves to protect hands during service.
• This switch is installed behind the control knob/control panel area; preserve wire locations and reconnect terminals exactly as found.
• Confirm the replacement against the appliance model and the original switch before installation.

Verified Compatible Models

MER7662WB0, MER7662WB1, MER7662WB2, MER7662WB3, MER7662WQ1, MER7662WQ2, MER7662WQ3, MER7662WS0, MER7662WS1, MER7662WS2, MER7662WS3, MER7662WT0, MER7662WW0, MER7662WW1, MER7662WW2

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
