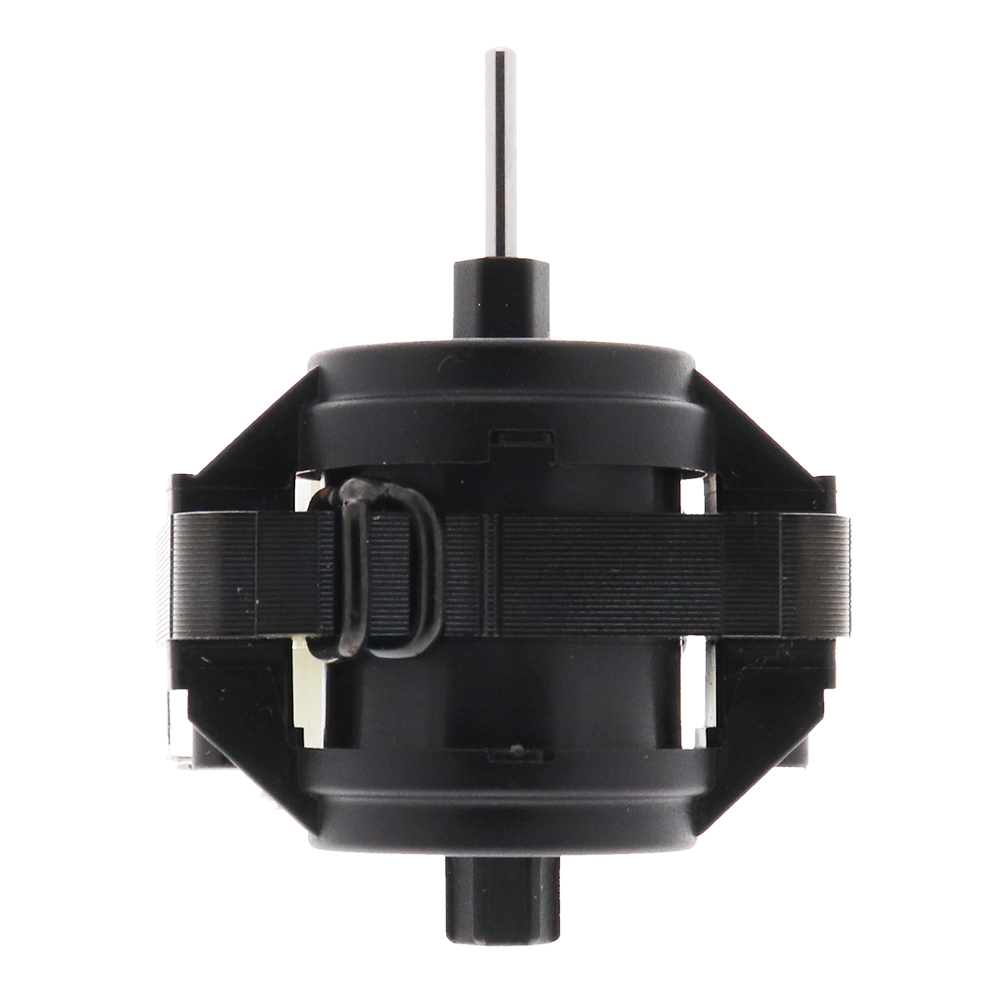

Whirlpool Refrigerator Evaporator Fan Motor WPW10189703, Replaces W10189703, W10208121, 2319208, 2262070, 2188848, 2201913, 10449506-REPL, 2221893, 2219660, 2219647, 2214986, 4389146, 8170682, 10449506, 10449505, 2201213

Whirlpool OEM refrigerator evaporator fan motor that draws air over the evaporator coils and circulates cooled air through the refrigerator and freezer compartments.

Is This the Right Part?

Common Symptoms

• Refrigerator too warm
• Freezer section too warm or not freezing
• Refrigerator and freezer both too warm
• Unusually noisy operation
• Fan motor will not start
• Frost or ice buildup associated with inadequate air circulation

Check Before Replacing

• With power disconnected, check whether the fan blade turns freely by hand.
• Listen for unusually noisy operation from the evaporator fan area.
• If the motor does not run, test the motor windings for continuity with a multimeter, following appropriate electrical-safety procedures.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM part
• Located at the back of the freezer on applicable models
• Uses two mounting brackets, which are sold separately according to the Home Depot Repair Parts listing

Installation Notes

• Unplug the refrigerator before installation.
• Safely store food that could deteriorate while power is disconnected.
• Wear work gloves to protect hands.
• Confirm whether the required mounting brackets are already present or must be purchased separately.

Verified Compatible Models

IT14DKXRQ00, IT14DKXSQ00, IT18DKXSQ00, IT18SKXRD00, IT21AMXRQ01, IT21AMXRQ02, IT21AMXRQ03, RT14BKXKQ05, RT14BKXSQ00, RT18BKXKQ00

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
