🇺🇸 Matching U.S. Part Number: WPW10190965

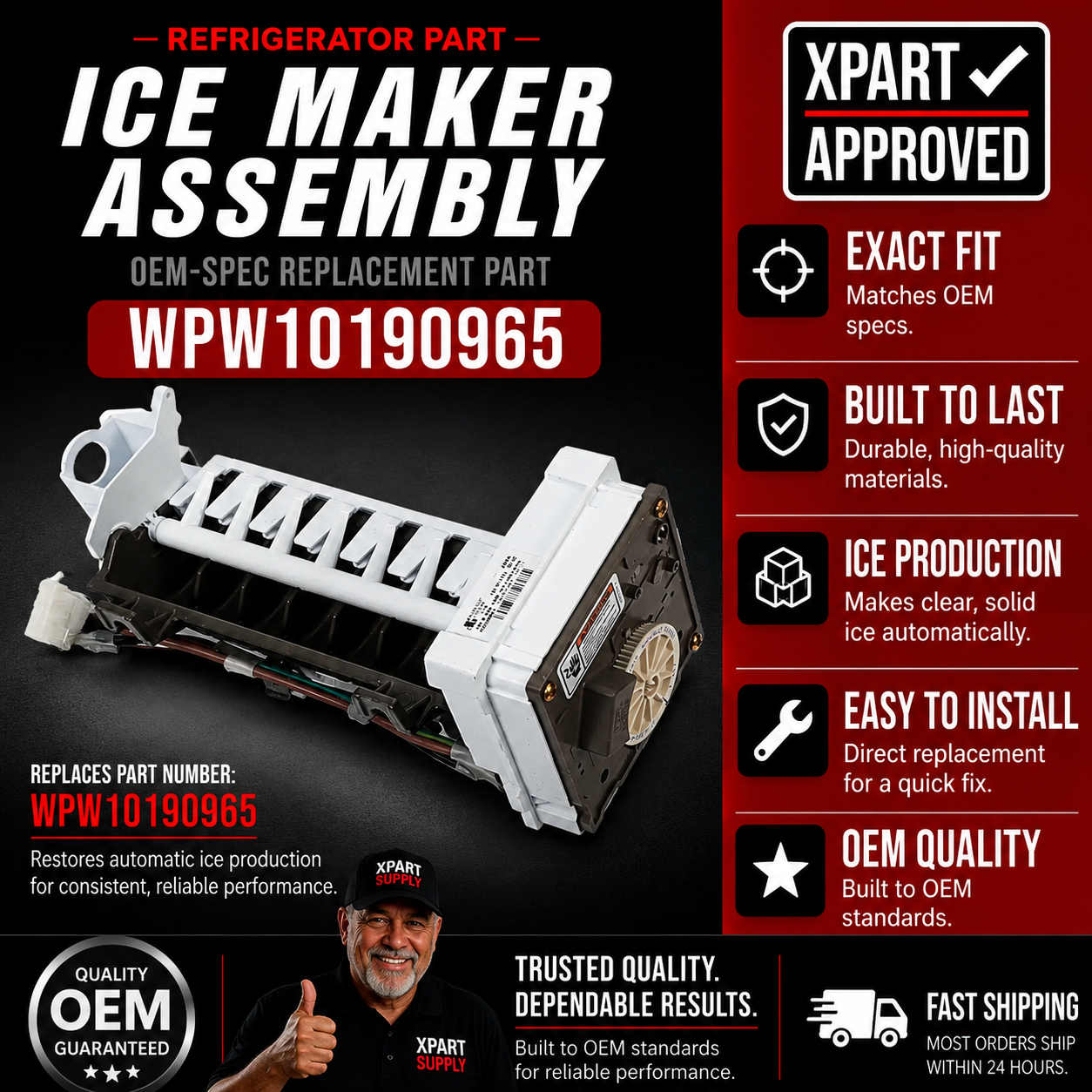

Whirlpool Refrigerator Not Making Ice? Ice Maker Assembly WPW10190965 — Restore Automatic Ice Production

A failed ice maker assembly is one of the most common causes of no ice, low ice output, and water leaking from the mold in Whirlpool-built refrigerators. In most Whirlpool, Maytag, KitchenAid, Amana and related-brand refrigerators, this is caused by a failed modular ice-maker assembly. When it fails, the ice mold stops cycling, cubes are not ejected, water may leak from the mold, or ice production stops entirely. ⚡ Common failure point in Whirlpool-built refrigerators — the modular assembly is the primary serviceable ice-making component. Part WPW10190965 is the genuine Whirlpool modular ice-maker assembly that produces ice automatically when the refrigerator's water, temperature and control systems are operating correctly.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ FREEZER COOLS — the freezer reaches and holds the correct temperature (0°F / −18°C)
• ✔ WATER SUPPLY OK — the water inlet valve opens and water pressure is adequate (minimum 20 psi)
• ✔ FILL TUBE CLEAR — the ice-maker fill tube is not frozen or blocked
• ✔ ONLY problem is the ice maker assembly itself — no ice, low ice, or mold leaking

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

• Ice maker produces no ice despite freezer cooling normally
• Ice production is low or inconsistent
• Water leaks from the ice mold into the freezer
• Ice cubes are not ejected from the mold
• Ice maker cycles but does not fill with water

✔ If these symptoms match and the water supply and freezer temperature are confirmed normal, this is the most likely failed component.

✔ May restore automatic ice production when diagnosis confirms that the original ice maker is defective.

📦 Part Details

• Part Number: WPW10190965
• Type: Modular refrigerator ice-maker assembly — includes the ice mold, ice-maker body and internal control device. Does not include the front cover, wire harness or ice-level shut-off arm. Transfer those components from the original assembly when compatible and undamaged.
• Replaces (verified OEM predecessors): W10190965, W10270037, W11381372, W10190966, W10190969, W10122506, W10122507, W10122510, 626633, 626661, 626662
• Brands: Whirlpool, Maytag, KitchenAid, Amana, JennAir, Inglis, Roper, Crosley, Estate, Kenmore (Whirlpool-built models)
• Canadian / U.S. Part Number: Identical — WPW10190965

⚙️ Installation

Skill Level: MODERATE — 20 to 45 minutes. Disconnect electrical power and shut off the refrigerator's water supply before service. Installation access and required tools vary by refrigerator model. Remove the existing ice maker assembly by disconnecting the wire harness and unscrewing the mounting hardware. Transfer the front cover, shut-off arm and any compatible mounting components from the original assembly to the new WPW10190965. Mount the new assembly, reconnect the harness, restore power and water supply, and allow 24 hours for the first ice cycle to complete.

✓ Compatible Models

Confirmed compatible with ASD2520WRB00, ASD2522VRB01, ASD2522VRS00, ASD2522WRD04, ASD2522WRW03, ASD2523WRB00, BRS70FBANA00, CS22AFXKQ06, ED2CHQXVQ03, ED2DHEXWL00, ED2FHEXSL01, ED2FHEXSL02, ED2FHEXSL03, ED2FHEXST00, ED2FHEXTQ00, ED2FHEXTQ02, ED2FHEXVS01, ED2FHEXVS03, ED2GHEXNT07, ED2GVEXVD01, ED2HBEXTL01, ED2KVEXVL00, ED2LHEXTD11, ED2VHEXTL01, ED2VHEXVL01, ED2VHEXVQ00, ED5CHQXKT07, ED5CHQXVB00, ED5CHQXVQ02, ED5FHEXSB00, plus a large number of additional Whirlpool, Maytag, KitchenAid, Amana, Inglis, Roper, Crosley, Estate and Kenmore models. Contact us to verify your model number before ordering.
