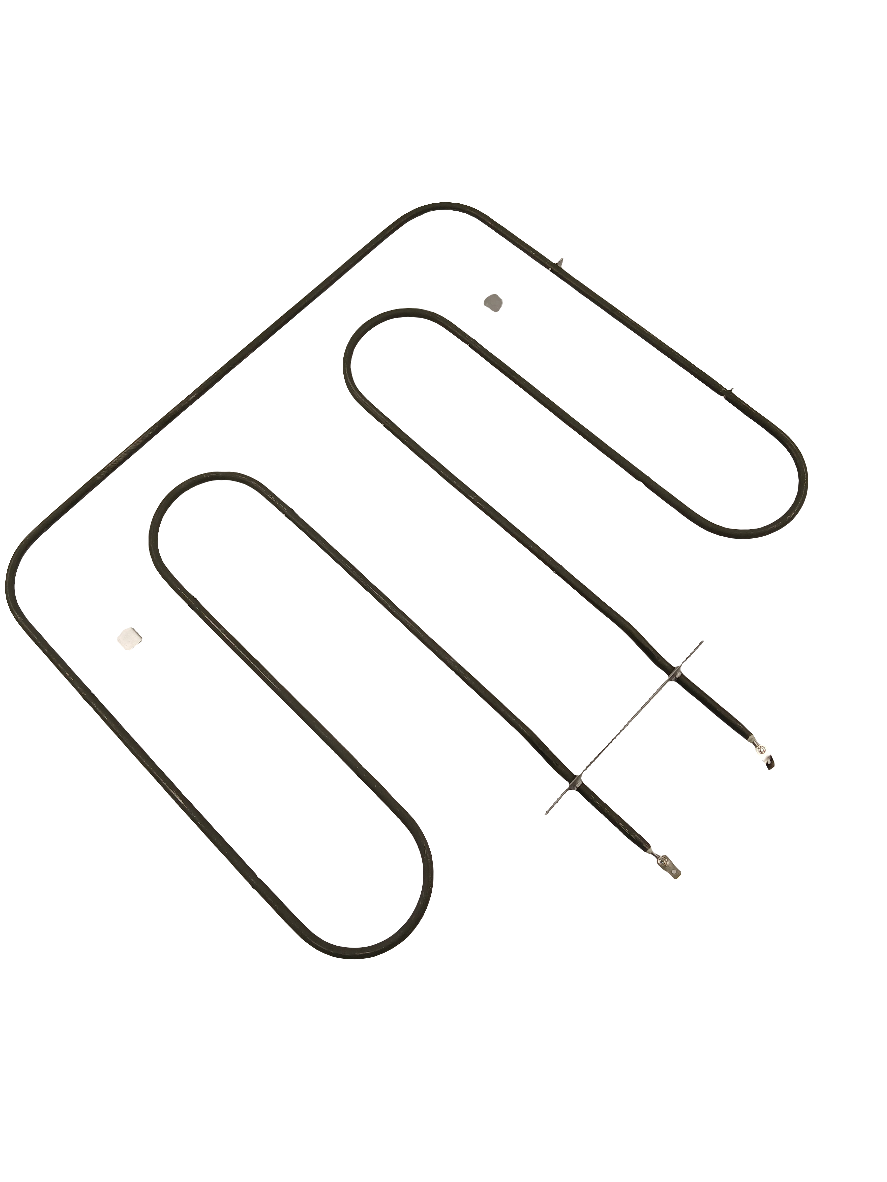

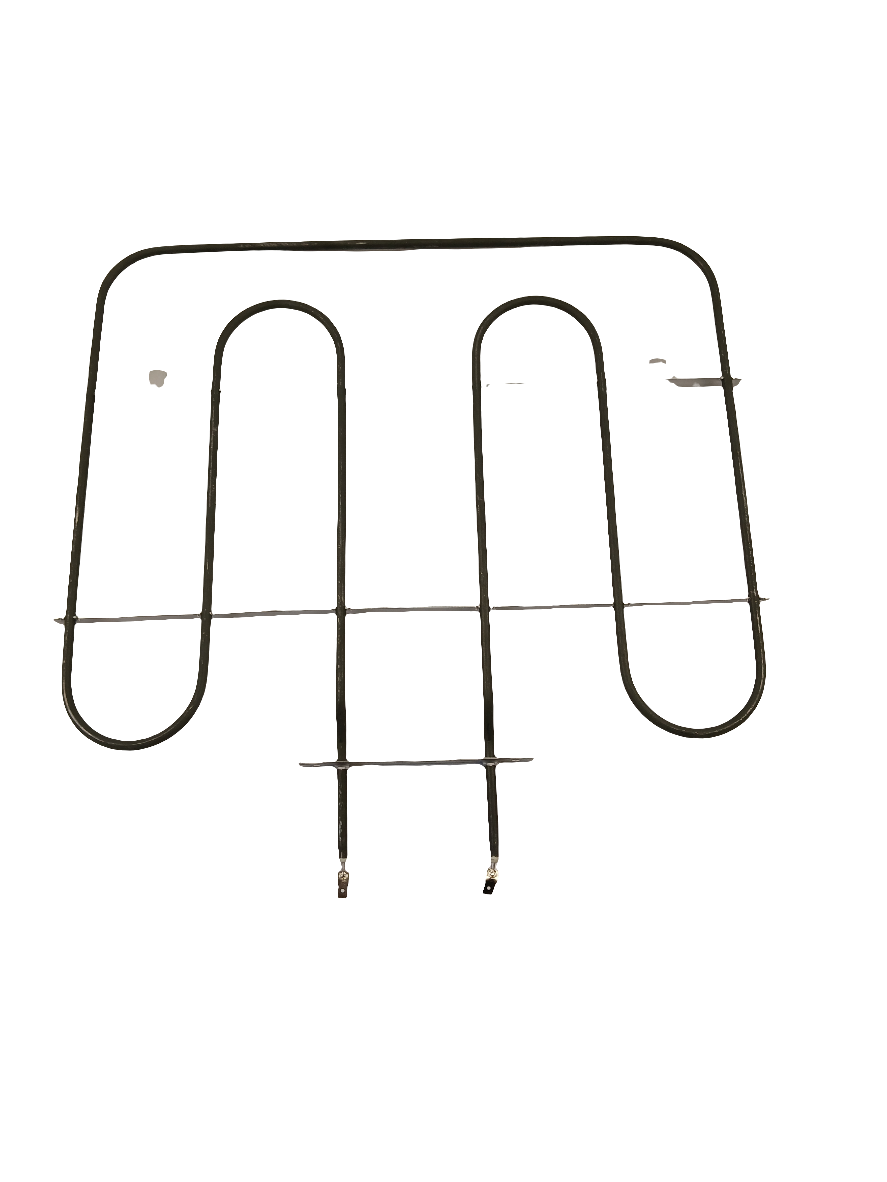

Whirlpool Range/Stove/Oven Hidden Bake Element WPW10207398, Replaces W10207398, 9760768

Sale price
$118.99
Regular price
$155.78
You save
$36.79 (24%)

Frequently Bought Together

Confirm This Fits Your Model
Not sure where to find your model number? See guide →
OVEN DOES NOT HEAT PROPERLY DURING BAKING

Whirlpool Range/Stove/Oven Hidden Bake Element WPW10207398, Replaces W10207398, 9760768, Fixes Oven does not heat properly during baking

Genuine Whirlpool OEM hidden oven bake element installed beneath the oven cavity; supplies heat for baking. The part is also documented for select wall ovens and oven/microwave combinations.

Part WPW10207398Replaces W10207398, 9760768Whirlpool

Genuine Whirlpool OEM hidden oven bake element installed beneath the oven cavity; supplies heat for baking. The part is also documented for select wall ovens and oven/microwave combinations.

Is This the Right Part?

Part NumberWPW10207398
ReplacesW10207398, 9760768
ManufacturerWhirlpool
Appliance TypeRange/Stove/Oven
Part TypeHidden Bake Element

✅ Cross Reference Information

Current Part NumberWPW10207398
ReplacesW10207398, 9760768

Common Symptoms

  • Bake element does not heat
  • Little or no heat during baking
  • Oven heats unevenly

Check Before Replacing

  • With the oven completely cool and electrical power disconnected, visually inspect the accessible element area for a break, blistering, charring, or obvious damage.
  • Observe whether the oven fails to produce normal bake heat; compare with the appliance’s normal broil operation, without assuming the element is the cause.
  • If electrical testing is appropriate for the appliance and performed by a qualified person, test the element for continuity only with power disconnected and the element isolated as required by the appliance service procedure.

Pro Tip

Because this is a hidden bake element, access may require removing the appliance from its enclosure and opening rear or lower covers; consult the appliance-specific service information before beginning.

Part Details

Part NumberWPW10207398
Part TypeHidden Bake Element
ManufacturerWhirlpool
Appliance TypeRange/Stove/Oven
Primary FunctionSupplies heat for the oven’s bake cycle from its concealed position beneath the oven cavity.
Cross ReferencesW10207398, 9760768

Key Features

  • Genuine Whirlpool OEM bake element
  • Hidden installation beneath the oven cavity
  • Used in select ranges, wall ovens, and oven/microwave combinations
  • Documented as replacing W10207398 and 9760768

Installation Notes

  • Disconnect the oven’s electrical supply at the circuit breaker or fuse and allow the appliance to cool completely before service.
  • For hidden-element designs, access may be from the rear or underside after removing appliance-specific covers and moving insulation carefully.
  • Disconnect the element wires before removing the element, and prevent the wires from retracting into the appliance.
  • Reinstall the replacement element and all covers or insulation in their original positions before restoring power.
  • Follow the appliance-specific service manual because access and mounting arrangements vary by model.

Verified Compatible Models

GBD279PVB00, GBD279PVB02, GBD279PVQ03, GBD309PVQ00, GBD309PVQ02, GBD309PVS00, GBD309PVS02, GBS279PVQ00, GBS279PVQ02, GBS279PVS02, GBS279PVS03, GBS309PVB03, GBS309PVQ03, GBS309PVS00, GBS309PVS02

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.

✅Compatibility & Cross Reference

9760768, W10207398

GBD279PVB00, GBD279PVB02, GBD279PVQ03, GBD309PVQ00, GBD309PVQ02, GBD309PVS00, GBD309PVS02, GBS279PVQ00, GBS279PVQ02, GBS279PVS02, GBS279PVS03, GBS309PVB03, GBS309PVQ03, GBS309PVS00, GBS309PVS02

How do I know if my oven bake element is bad?

There are several easy ways to tell if your bake element has failed:

Visual inspection (easiest): Open the oven door and look at the bake element on the bottom of the oven. Look for any visible damage — a hole, blister, burn spot, crack, split in the metal sheath, or an area that looks different from the rest of the element. A burned-through element almost always leaves a visible mark. If you see damage, the element is confirmed bad.

The glow test: Set the oven to bake at 400°F and watch the element through the oven window (or carefully open the door briefly). A working element should glow red evenly across its entire length within 3–5 minutes. If it doesn't glow at all, it's burned out. If it glows in some spots but not others, it has a partial break and is failing.

The broil test: If the oven heats on broil (the upper element glows red) but not on bake, the bake element is almost certainly the problem. The broil and bake elements are independent — if one works and the other doesn't, the non-working element has failed.

Multimeter test (definitive): Disconnect power. Remove one wire from the element. Set your multimeter to resistance. Touch the probes to the two element terminals. A good element reads 20–50 ohms. OL (no reading) means the element is burned out. This is the definitive test.

The breaker test: If the oven trips the circuit breaker when you turn on bake, the element may be shorted to ground. This is a more serious failure that requires immediate replacement — don't keep resetting the breaker and trying again.

Bake Element, Lower Heating Element, Oven Element, Bottom Element, Bake Heater, Oven Heater Coil

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
