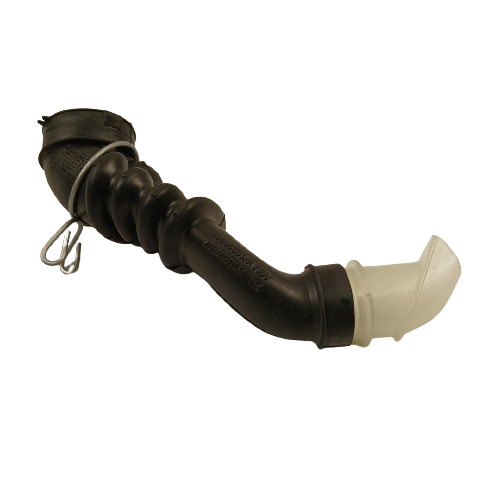

Whirlpool Washer Dispenser to bellows hose WPW10239966, Replaces W10239966, Fixes Water leaking from the washer during or shortly after dispensing/filling
Genuine Whirlpool OEM hose used to connect the detergent dispenser to the washer door bellows on compatible front-load washing machines.
Genuine Whirlpool OEM hose used to connect the detergent dispenser to the washer door bellows on compatible front-load washing machines.
Is This the Right Part?
✅ Cross Reference Information
Common Symptoms
- Water or detergent leaking from the front or lower area of the washer
- Detergent or rinse water not reaching the tub properly when the hose is kinked, clogged, disconnected, or damaged
- Visible cracking, splitting, soft spots, or loose connections at the hose ends
Check Before Replacing
- Disconnect power before servicing and inspect the hose only when the washer is inactive.
- Check the hose and both connection points for cracks, splits, kinks, abrasion, residue buildup, or signs of leakage.
- Verify that the hose is attached at both the dispenser and bellows ends and is not visibly collapsed or pinched.
- If leakage is present, also inspect the dispenser housing and bellows so a leak is not incorrectly attributed to this hose.
Pro Tip
Part Details
Key Features
- Genuine Whirlpool OEM dispenser-to-bellows hose
- Designed for compatible Whirlpool-family front-load washers
- Current manufacturer number WPW10239966
- Replaces the earlier Whirlpool number W10239966
Installation Notes
- Disconnect electrical power before opening or servicing the washer.
- Access and panel-removal requirements vary by washer model; follow the model-specific service or repair instructions.
- Reconnect the hose securely at both original connection points, ensuring it is not kinked, twisted, or pinched.
- Replace all removed panels and verify that connections are secure before returning the washer to service.
Verified Compatible Models
7MMHW5500FC0, 7MMHW5500FC1, 7MMHW5500FW0, 7MMHW5500FW1, 7MMHW6000BW0, 7MMHW7000BG0, 7MMHW7000YG0, 7MMHW7000YW0, 7MMHW7100DC0, 7MMHW7100DW0, 7MWFW72HEDW0, 7MWFW75HEFW0, 7MWFW75HEFW1, 7MWFW80HEBW0, 7MWFW81HEDW0
Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
