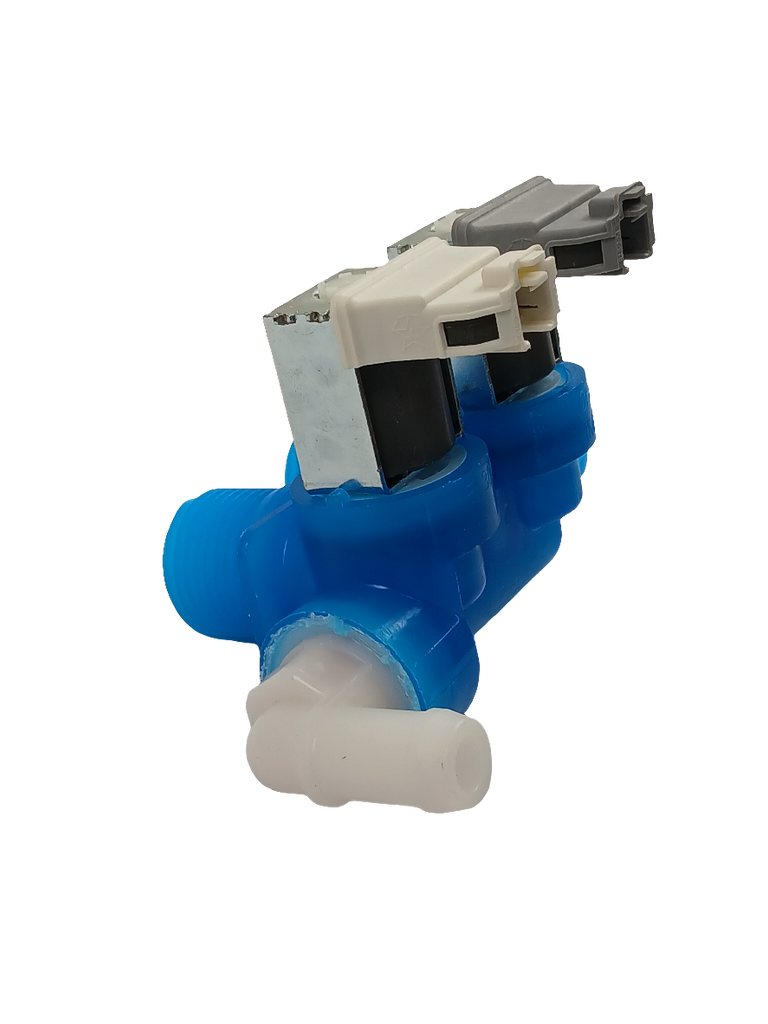

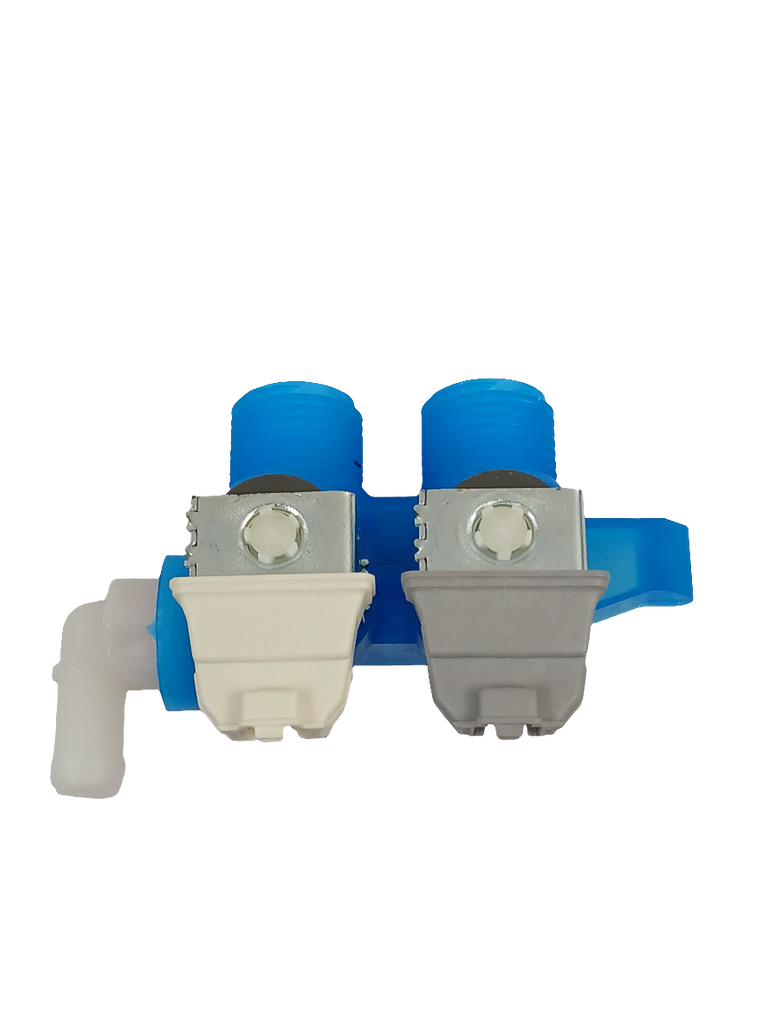

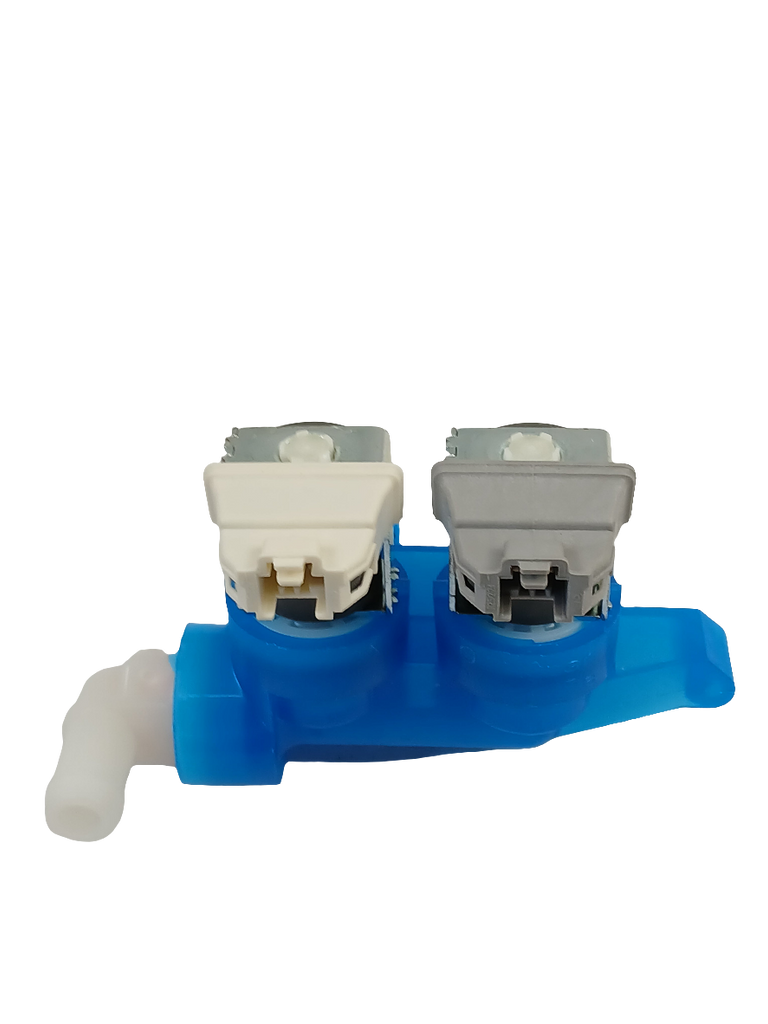

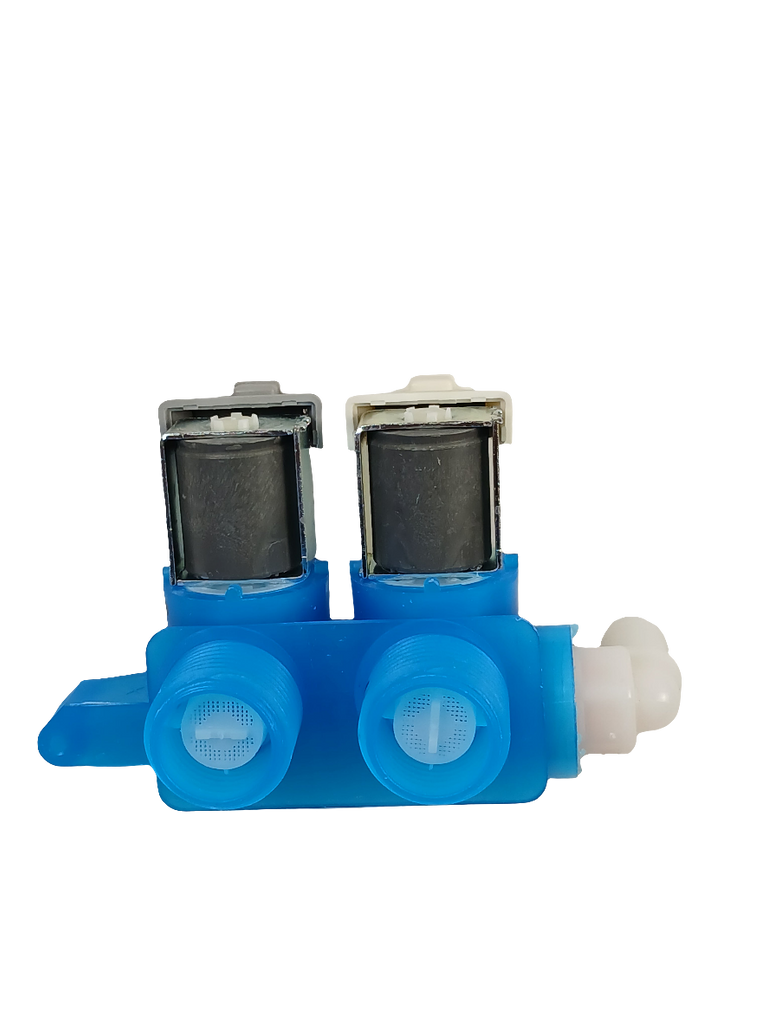

Whirlpool Washer Water Inlet Valve WPW10289387, Replaces W10289387

Genuine Whirlpool OEM washing-machine water inlet valve that controls hot and cold water flow into the washer. It is used in Whirlpool, Maytag, and Amana washers.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Washer does not fill with water
• Slow filling
• Incorrect water temperature when one valve side fails
• Water entering the washer when it is not supposed to
• Water leaking from the inlet-valve or hose connection area

Check Before Replacing

• Confirm both household water supply valves are fully open and the supply hoses are not kinked.
• Check that the washer has adequate incoming water pressure.
• Inspect and carefully clean debris from the inlet screens at the valve hose connections; do not remove or damage the screens.
• Check hose connections and the valve area for visible leaks after shutting off the water supply.
• If appropriate service information is available for the specific washer, test the valve electrically only after disconnecting power and following the appliance service procedure; do not assume the valve is defective from a fill symptom alone.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM washing-machine water inlet valve.
• Controls incoming water flow during washer fill operation.
• Supports separate hot- and cold-water inlet control.
• Applicable to select Whirlpool, Maytag, and Amana washers.
• Whirlpool identifies the part as WPW10289387 and lists previous number W10289387.

Installation Notes

• Disconnect electrical power and shut off the washer's water supply before installation.
• Use the model-specific service information to access and remove the valve; connection and mounting details can vary by washer model.
• Reconnect the water hoses and electrical connectors exactly as originally configured.
• After installation, restore water and power, run an appropriate fill test, and inspect all connections for leaks.
• Wear work gloves and stop if the replacement does not match the original mounting or connections.

Verified Compatible Models

BNQ11C6ANA0, BNQ11CVANA0, NFW7600XW00, WFW94HEXL0, WFW94HEXL1, WFW9400SW04, WFW9400SZ04, WFW9410XW00, WFW9451XW00, WFW9470WL00, WFW9470WL01, WFW9470WR00, WFW9470WR01, WFW9470WW00, WFW9470WW01

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
