Whirlpool Range Radiant surface element, 1300 watts; dual left-rear surface element WPW10342780, Replaces W10342780

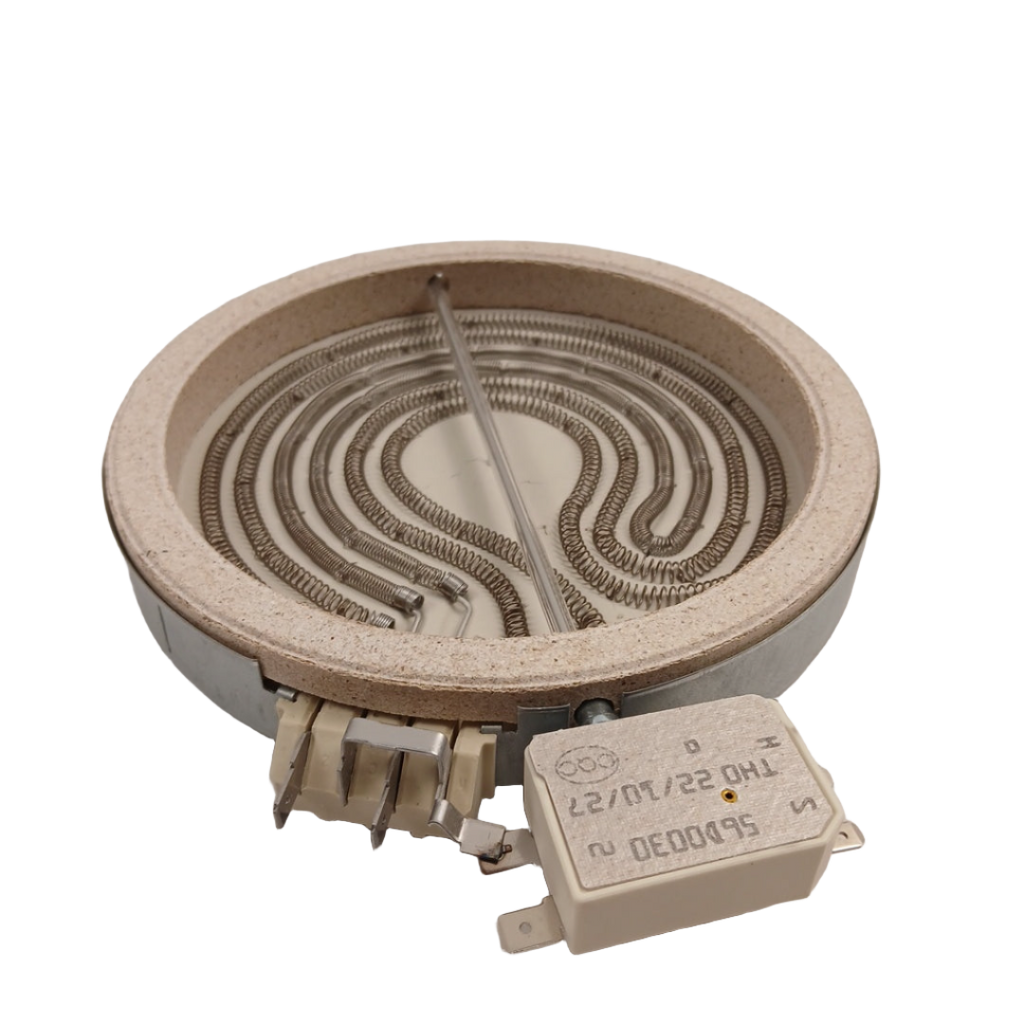

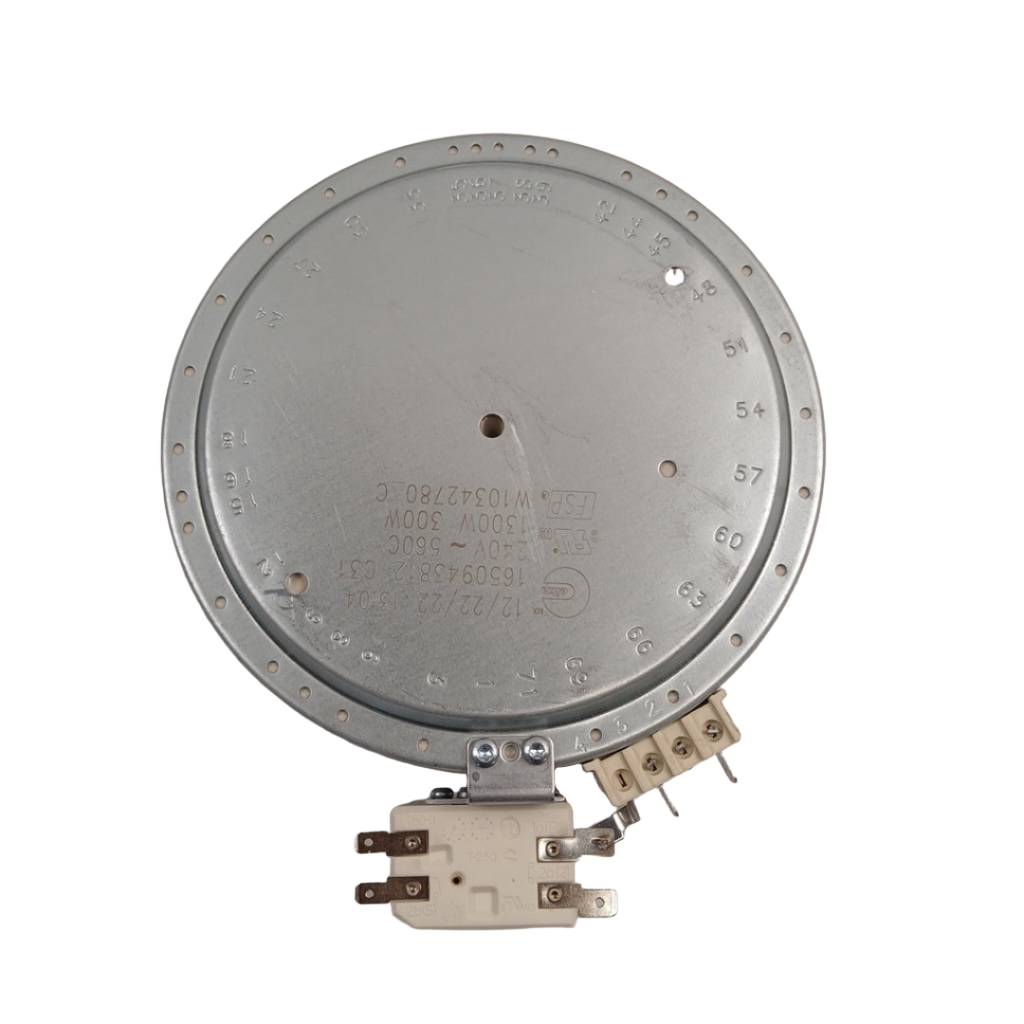

Genuine Whirlpool OEM radiant surface heating element rated at 1300 watts. It supplies heat to a specific smooth-top cooking area and is documented for use in ranges and cooktops.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• The cooking zone remains cold when selected.
• The element heats unevenly or only part of the dual element operates.
• The element shows visible burning, cracking, or discoloration.
• The element may cycle on and off during operation as part of normal temperature regulation; cycling alone does not confirm a defective element.

Check Before Replacing

• Confirm the range or cooktop has electrical power and that the circuit breaker has not tripped.
• With the appliance switched off and completely cool, inspect the glass area and element region for visible cracks, burn marks, or damage.
• With power disconnected, inspect the element terminals and accessible wiring for loose, discolored, or heat-damaged connections.
• Compare the affected cooking zone with another zone using the same control setting; do not assume the element is defective because of a single symptom.
• If electrical testing is performed, follow the appliance service documentation and verify power is disconnected before accessing terminals.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM radiant surface element.
• 1300-watt rating.
• Dual surface-element design for a smooth-top cooking area.
• Used in Whirlpool, KitchenAid, Maytag, Jenn-Air, and related appliance brands when model compatibility is confirmed.
• Whirlpool item number 2117639.

Installation Notes

• Disconnect electrical power by unplugging the appliance or switching off its circuit breaker before installation.
• Allow the cooktop and element to cool completely before handling.
• Wear protective work gloves when handling the element or lifting the cooktop assembly.
• Confirm the appliance model and the element location before ordering or installing.
• Follow the appliance-specific service documentation for access, terminal placement, and reassembly; do not force connectors or alter the element.

Verified Compatible Models

66495223710, 66495223711, JEC3536HB00, JEC3536HS00, JEC4424HB00, JEC4424HB01, JEC4424KB00, KCED606GBL00, KCES550HSS00, KCES950HSS00, KCES950KBL01, KCES950KSS00, WEE745H0FS0, WEE745H0FS1, WEE745H0FS2

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
