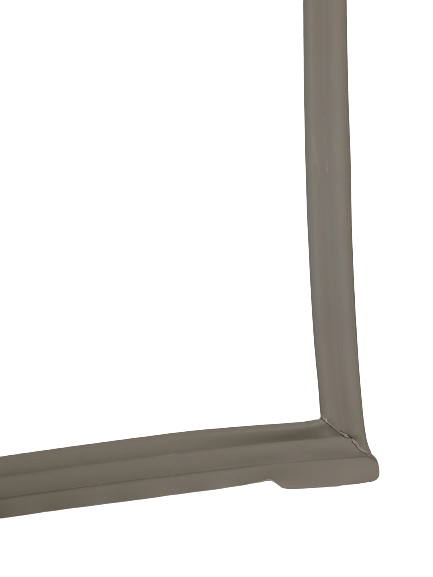

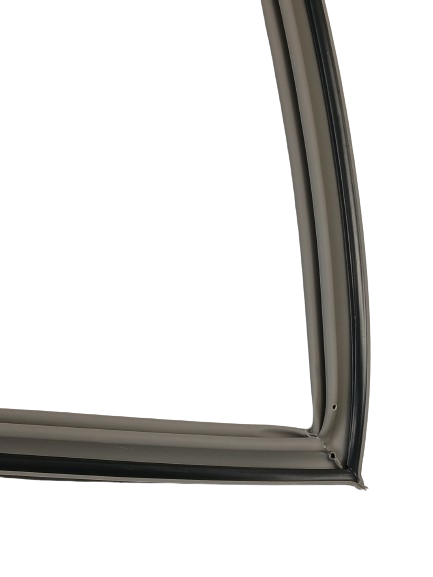

Whirlpool Corporation Refrigerator door gasket / Gasket-Fip, gray WPW10460580, Replaces W10460580, W10413468

OEM gray refrigerator door gasket that seals the perimeter of the refrigerator door to help prevent cold-air loss.

Is This the Right Part?

Common Symptoms

• Visible tearing, cracking, deformation, or gaps in the gasket
• Door will not close or open normally because the gasket is misaligned or obstructed
• Moisture or sweating near the door seal
• Warm spots or reduced cooling associated with air leakage
• Excessive frost buildup or extended compressor operation associated with a poor door seal

Check Before Replacing

• Visually inspect the entire gasket perimeter for tears, cracks, distortion, or sections pulled out of position.
• With the door closed, check that the gasket contacts the cabinet evenly around all corners and sides.
• Perform a gentle paper-strip check at several points around the seal; resistance should be reasonably consistent when the door is closed.
• Check for food packages, shelves, or other obstructions preventing the door from closing fully.
• Inspect for moisture or frost concentrated near a section where the gasket may not be contacting evenly.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM refrigerator door gasket
• Gray/Apollo Gray finish
• Flexible perimeter seal for the refrigerator door
• Designed to create an airtight cabinet seal when the door is closed
• Sold as one gasket for one door

Installation Notes

• Disconnect the refrigerator from electrical power before beginning service.
• Remove the existing gasket from the door retaining channel or groove, following the appliance service instructions.
• Clean the retaining channel and door-contact area so the replacement gasket can seat evenly.
• Starting at a corner, press the replacement gasket into the retaining channel and work around the perimeter without twisting it.
• After installation, inspect the full perimeter for uniform seating and confirm that the door closes and seals consistently before restoring normal operation.

Verified Compatible Models

IX5BBEXDS00, IX5BBEXDS01, MFF2055DRH01, MFF2055DRM01, MFW2055DRH01, MFW2055DRM01, MFW2055YEB00, WRF560SMHV00, WRF560SMHW00, WRF560SMHZ00, WRF560SMHZ01, WRF560SMHZ02, WRF560SMYB01, WRF560SMYB02, WRF560SMYB04

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
