OVEN DOES NOT HEAT OR MAINTAIN THE SELECTED TEMPERATURE
Whirlpool Range/Stove/Oven Control Board WPW10476684, Replaces W10476684, W10271746, W10236261, W10173529, Fixes Oven does not heat or maintain the selected temperature

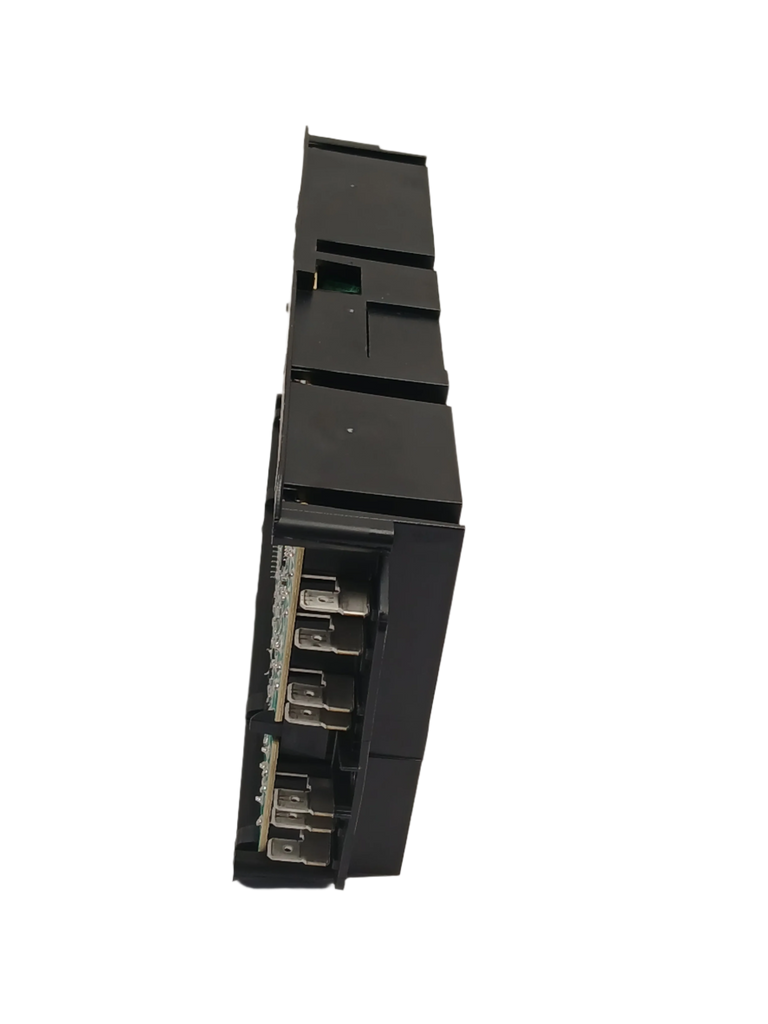

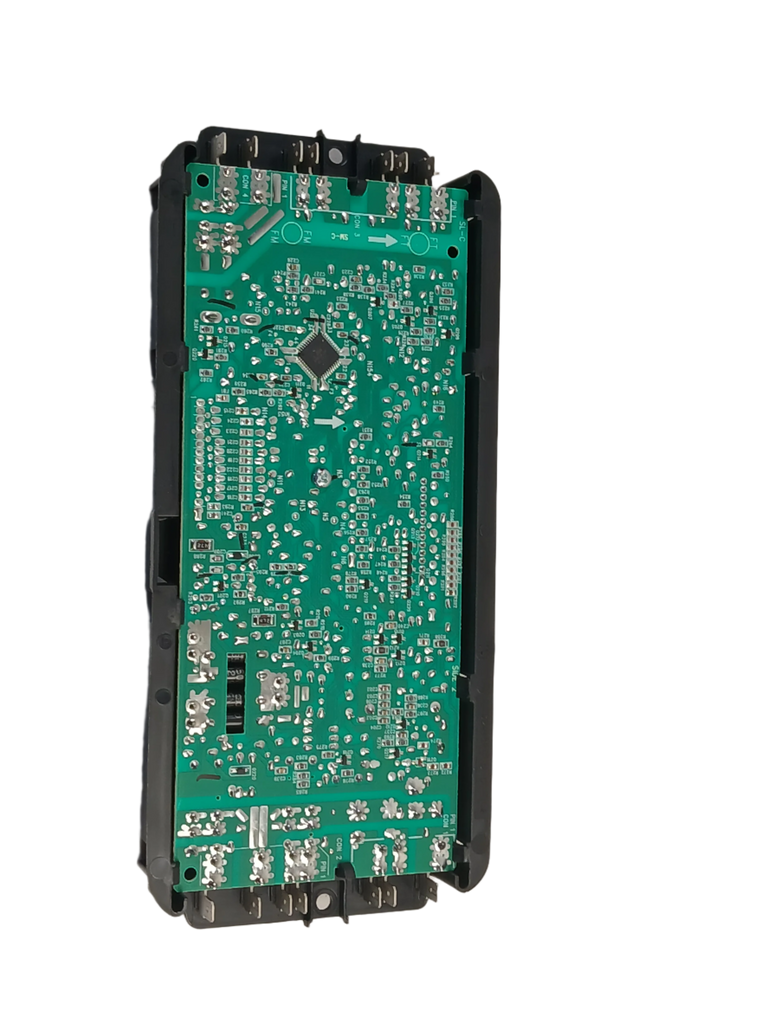

Genuine OEM electronic oven control board for ranges. The board monitors oven temperature and controls oven heating functions.
Part WPW10476684Replaces W10476684, W10271746, W10236261Whirlpool
Genuine OEM electronic oven control board for ranges. The board monitors oven temperature and controls oven heating functions.
Is This the Right Part?
Part NumberWPW10476684
ReplacesW10476684, W10271746, W10236261, W10173529
ManufacturerWhirlpool
Appliance TypeRange
Part TypeRange/Stove/Oven Control Board
Common Symptoms
- Oven temperature is inaccurate or inconsistent
- Oven will not start or will not program
- Touchpad or control buttons do not respond
- Oven has no heat or insufficient heat
- Display or control functions are intermittent
- Oven shuts off unexpectedly
Check Before Replacing
- Confirm the range has power and that the household breaker or fuse has not tripped.
- With power disconnected, inspect the control board and its wiring connectors for loose connections, corrosion, overheating, or visible damage.
- Check the oven temperature sensor and other heating-system components before condemning the control board, because those components can produce similar symptoms.
- Use the appliance-specific wiring diagram or service documentation to verify that connectors are installed correctly; do not test exposed live voltage unless qualified to do so.
Pro Tip
A failed temperature sensor, heating element, wiring connection, or power-supply problem can mimic a defective control board, so check those items first rather than replacing the board solely from a no-heat symptom.
Part Details
Part NumberWPW10476684
Part TypeRange/Stove/Oven Control Board
ManufacturerWhirlpool
Appliance TypeRange
Primary FunctionThe electronic oven control board monitors oven temperature and switches the oven heating functions, while also managing user inputs and display operation.
Cross ReferencesW10476684, W10271746, W10236261, W10173529
Key Features
- Genuine Whirlpool OEM electronic control board
- Controls oven heating functions based on temperature-sensor input
- Supports oven control, programming, and display functions
- White range/oven control board assembly
Installation Notes
- Disconnect electrical power to the range before accessing or replacing the control board.
- Verify the replacement part number against the appliance model and the label on the removed board before installation.
- Photograph or label connector locations before disconnecting them, then transfer connectors to the corresponding locations without forcing them.
- Handle the electronic assembly carefully and avoid contact with energized circuitry; restore power only after all connections and covers are secured.
- Follow the appliance-specific service or technical documentation for any required post-installation checks.
Verified Compatible Models
IVE32300, IVE32301, IVE82301, IVE82302, IVE82303, WFE301LVB0, WFE301LVQ0, WFE301LVS0, YRF115LXVB0, YRF115LXVS0, YWFE301LVB0, YWFE301LVS0
Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
