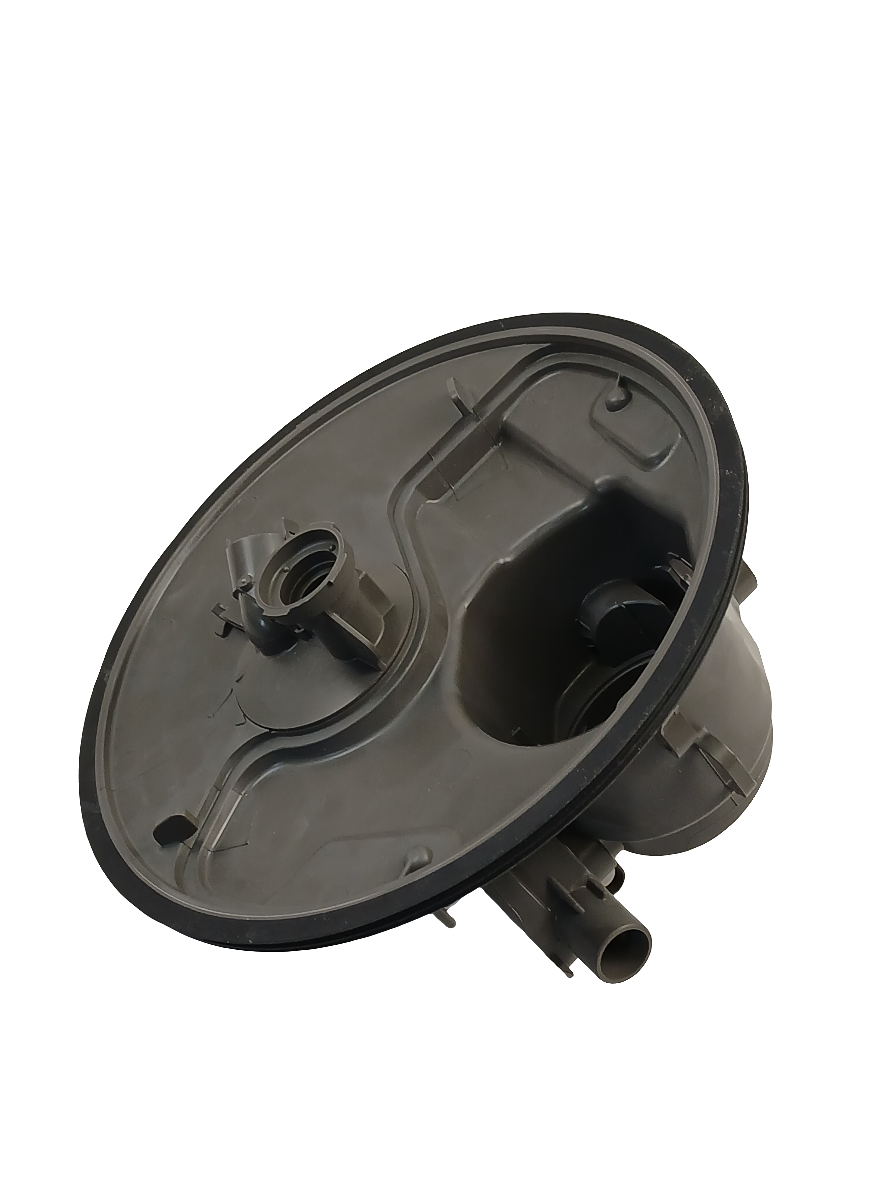

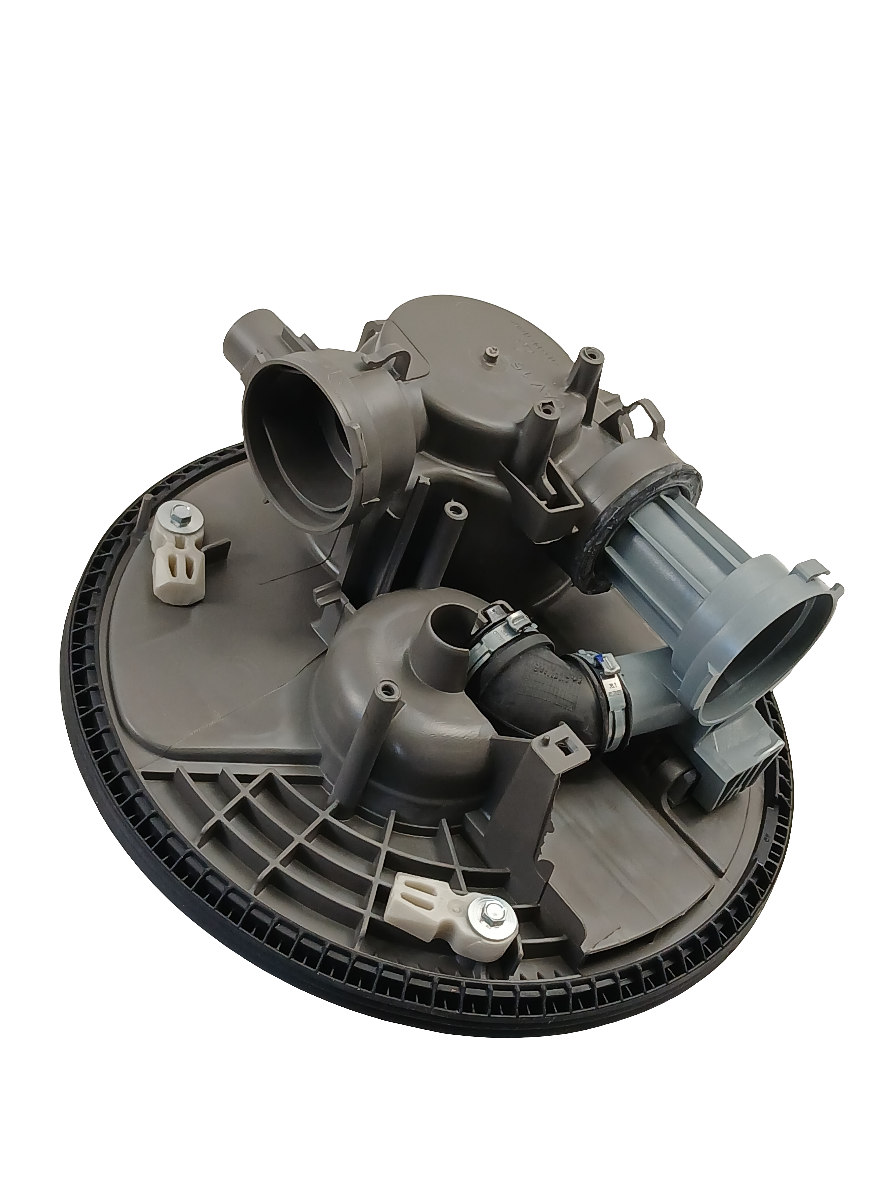

Whirlpool Dishwasher sump and seal assembly WPW10482462, Replaces W10300742, W10482462

Genuine OEM dishwasher sump and seal assembly. The sump holds water below the dishwasher tub, while the integrated seal helps prevent leakage between the sump and tub.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Leak beneath or near the center of the dishwasher tub
• Damaged, deteriorated, or separated sump seal causing leakage
• Reduced wash-water circulation when the sump or its connected passages are obstructed

Check Before Replacing

• Disconnect power and water supply before inspection or service.
• Inspect the bottom-center underside of the tub for fresh water or mineral residue after a cycle; distinguish the sump area from nearby hoses, pump seals, and inlet connections.
• Remove and rinse the dishwasher filter, then inspect the exposed sump opening for visible food debris or foreign objects without probing or disassembling the assembly.
• Confirm that the spray arms can rotate freely and that their openings are not blocked; poor spray performance is not by itself proof that the sump has failed.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM sump and seal assembly
• Integrated seal/gasket helps prevent leakage between the sump and dishwasher tub
• Designed for select Whirlpool-family dishwashers
• Earlier numbers W10300742 and W10482462 are documented for this part

Installation Notes

• Disconnect electrical power and shut off the dishwasher water supply before installation.
• Installation requires access to the dishwasher sump and may involve disconnecting connected hoses, wiring harnesses, and the drain pump according to the appliance-specific service documentation.
• Do not reuse damaged seals, clamps, hoses, or connectors; replace components only when required by the appliance-specific instructions or found damaged.
• After reassembly, inspect for leaks during a controlled test cycle before returning the dishwasher to normal use.

Verified Compatible Models

7WDF530PAYM3, 7WDF530PAYM4, 7WDF530PAYM5, 7WDF530PAYM6, 7WDF530PAYM7, ADB1400AMB0, ADB1400AMB1, ADB1400AMS0, ADB1400AMS1, ADB1400AMW0, ADB1400AMW1, ADB1400PYB1, ADB1400PYB2, ADB1400PYB3, ADB1400PYB4

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
